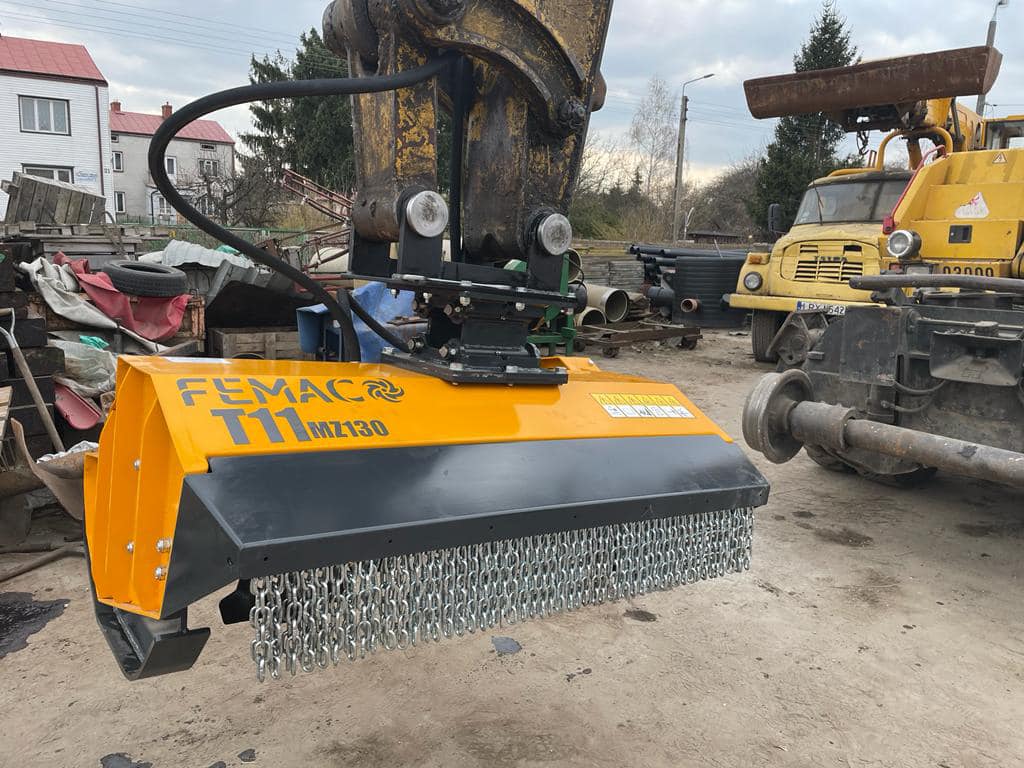

FEMAC T11 Hydraulic Mulcher for 6-12 T Excavators

$14,900.00$20,750.00 ex GST

The FEMAC T11 Hydraulic Mulcher high quality Italian built flail mower attachment for excavators from 2.5T – 12T.

Suitable for clearing trees and brush along roads, gullies, creeks and rivers or general land clearing this mulcher is available as a fixed teeth mulcher or 360° swinging hammer flail mulcher.

This excavator flail mower attachment is available in 1300 mm and 1600 mm size. Wide range of flails and 2 types of rotors available.

Made in Italy by FEMAC SRL

  • MZ Helicoidal Rotor with hammers austempered and interchangeable cutting blade .
  • FR/FS Forestal flanged rotor with 360° rotating hammer.
  • Toothed high-performance belts transmission.
  • Internally reinforced double-case body with interspace.
  • Protective belts cover.
  • Strong hood with double sheet, removable for inspection.
  • Side skids adjustable on 3 positions to change the height of the cut (only on T11 MZ/FR/FS 130).
  • Feeler roller adjustable on 3 positions to change the height of the cut (T11 MZ 160 standard equipment, T11 MZ/FR/FS 130 accessory in replacement of side skids).
  • Inside Rotor Supports with ”labyrinth” for the protection of the bearings from the impurities.
  • Double Row spherical adjustable bearings of 1st quality.
  • Valves block complete with priority valve for adjusting oil flow, anti-shock valve (pressure relief valve), anti-cavitation.
  • Cast iron gear motor.
  • Accident prevention chains protections according to EC directives.
Model Excavator (tonne) Cutting width (mm) Dimensions (LxAxH cm) Weight (Kg) Motor Displacement Oil L/minPressure Bar (min-max) Pressure Transmission Rotor Flails
T11 MZ130 6.0-12.0 1300 145x90x60 345 34-44-51 60-80-100 200-220 1 (50 mm) Helical 20
T11 MZ160 10.0-12.0 1600 185x100x70 420 44-51 80-100 200-220 1 (55 mm) Helical 20
T11 FR130 8.0-12.0 1300 145x90x60 400 44-51 60-80-100 200-220 1 (50 mm) Helical 26
T11 FS130 8.0-12.0 1300 145x90x60 440 44-51 60-80-100 200-220 1 (50 mm) Helical 18

Flail Options:

HF6 – max Ø  8 cm – standard

KF7 – max Ø 6 cm

HF9 –  Ø 12 cm

FEMAC Hydraulic Excavator Mulcher Attachment

HF19 –  Ø 12 cm

Rotor Options :

MZ – Helicoldal Rotor

FR – Forestal Flanged Rotor

FS – Forestal Flanged Rotor

FEMAC Hydraulic Excavator Mulcher Flail MOwer Rotor FS
