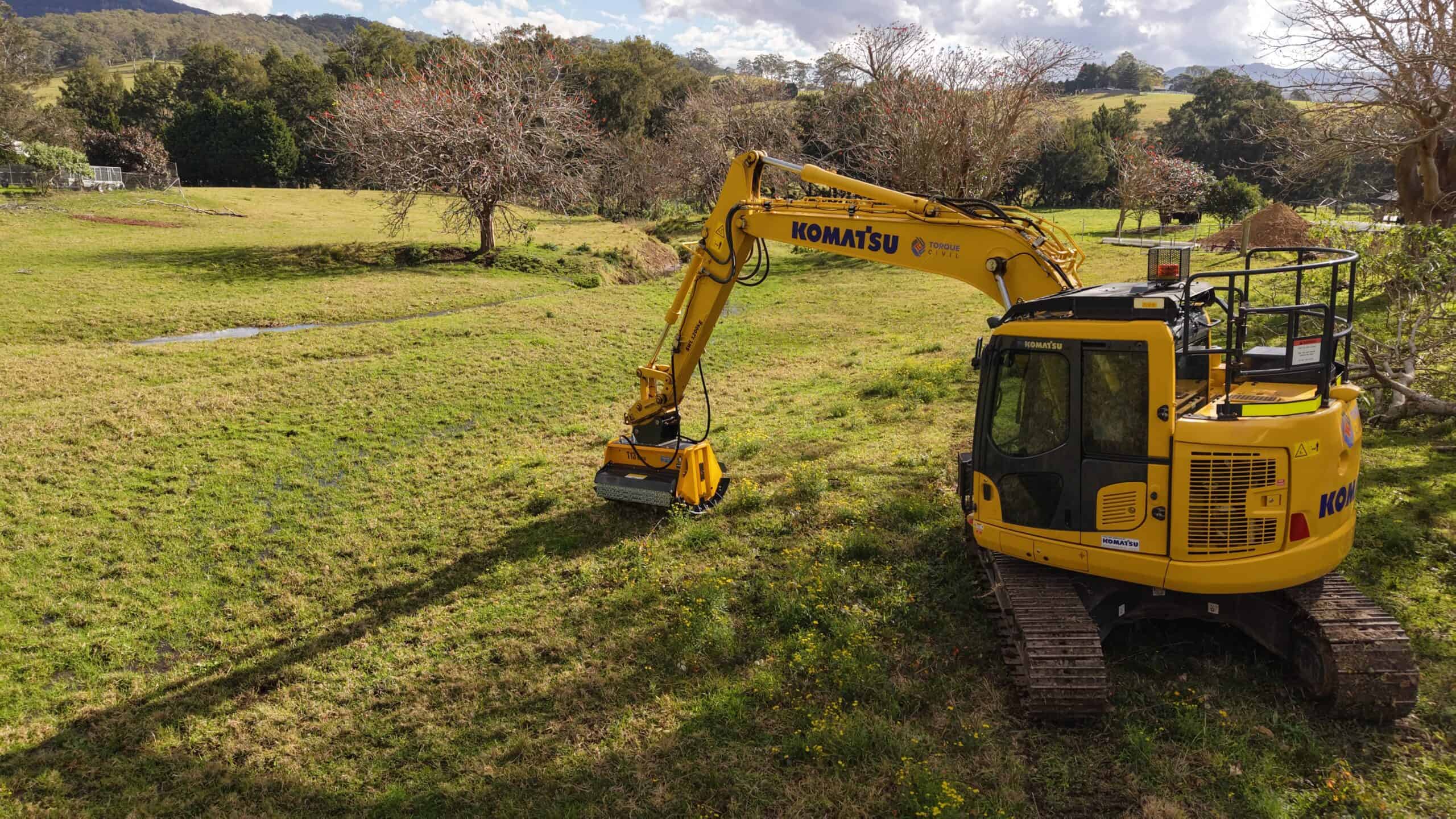

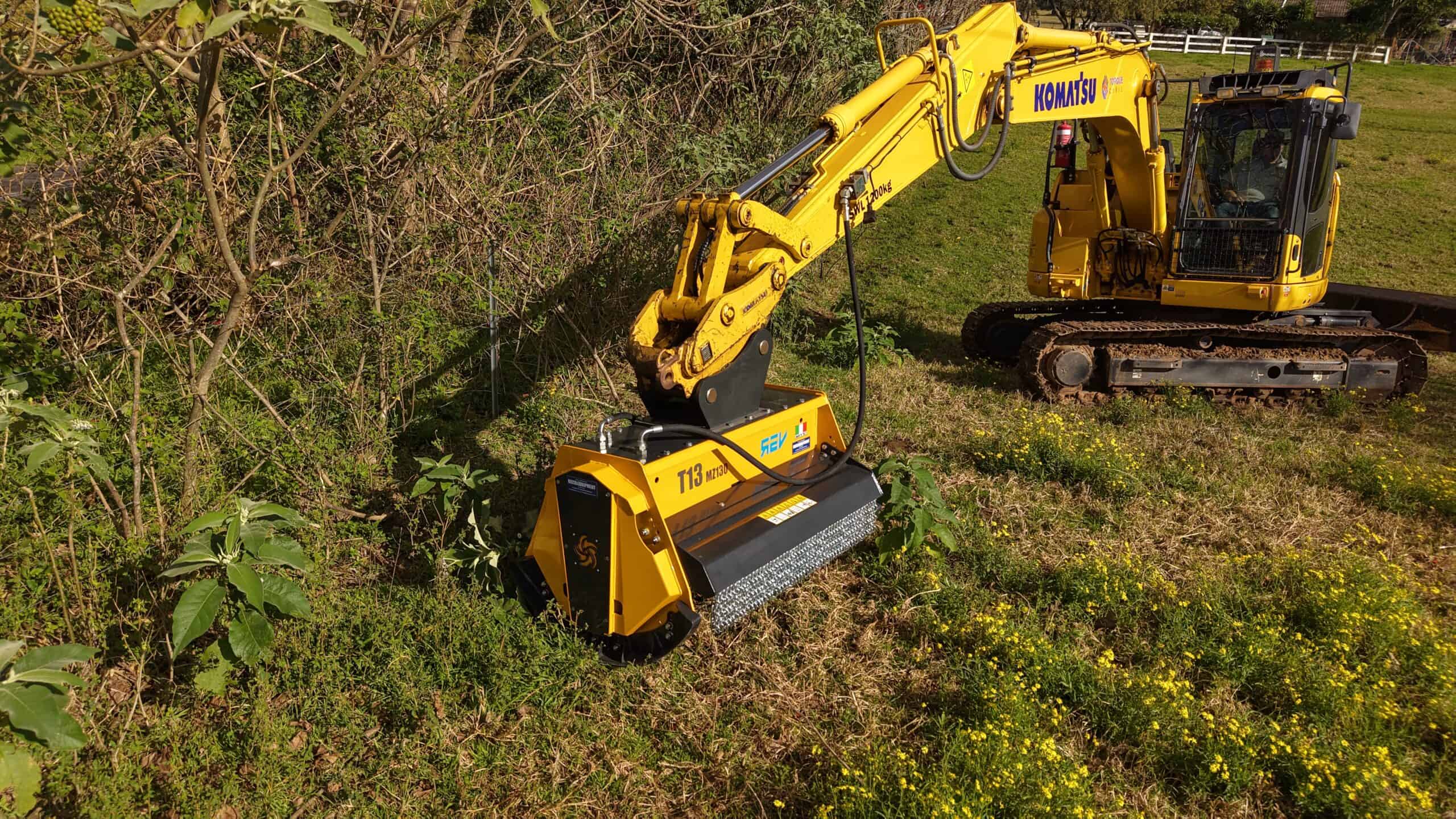

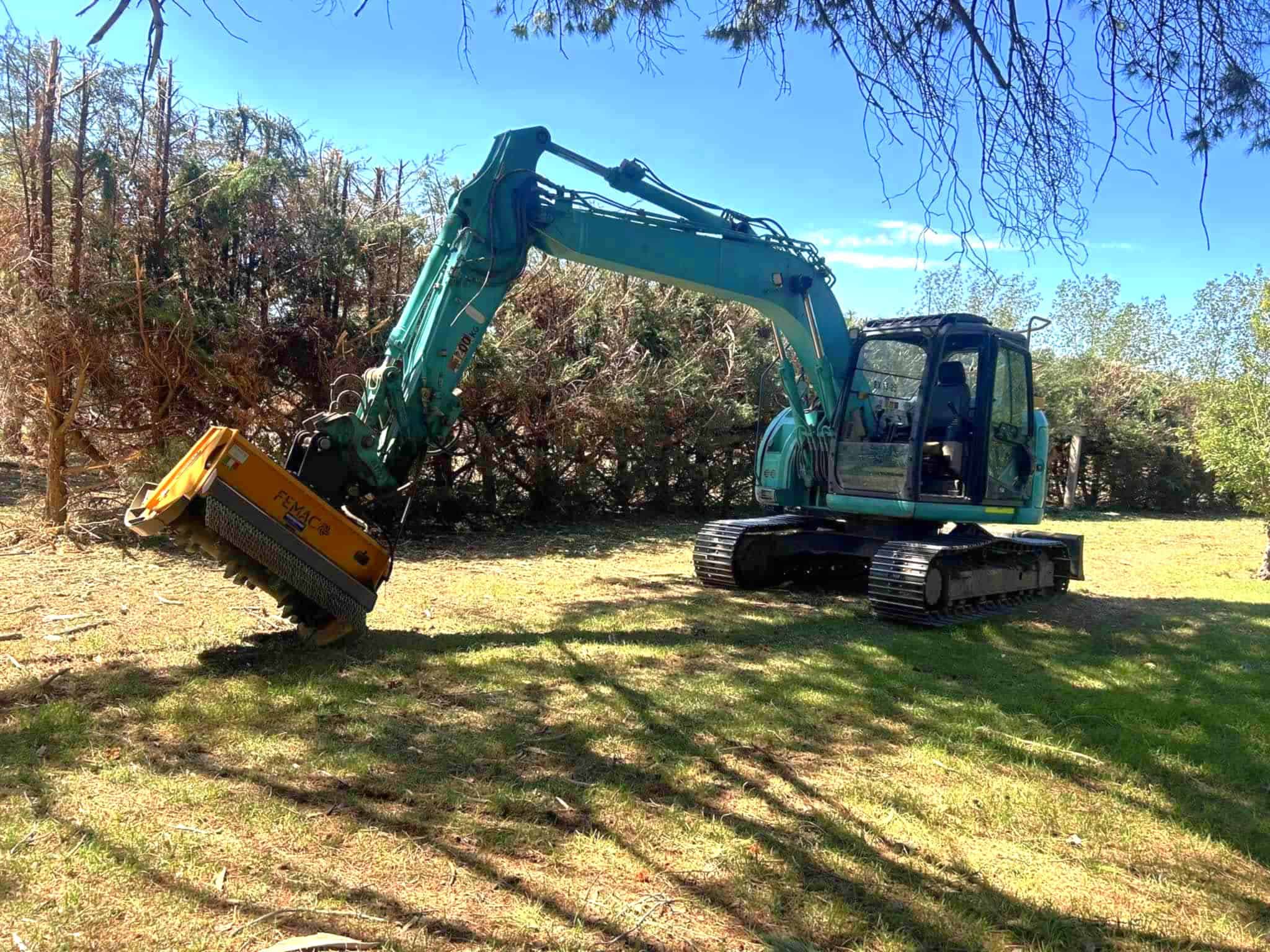

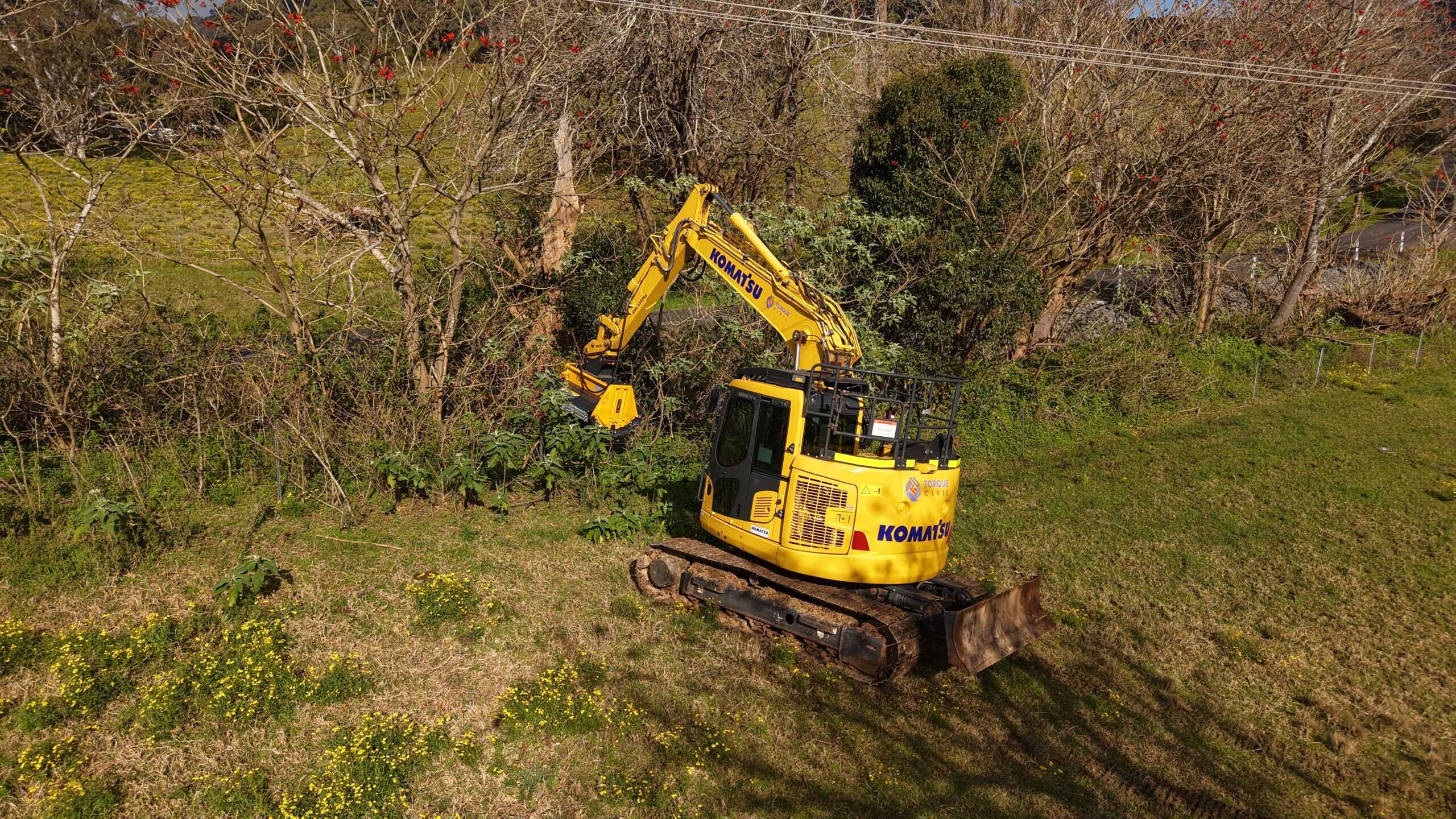

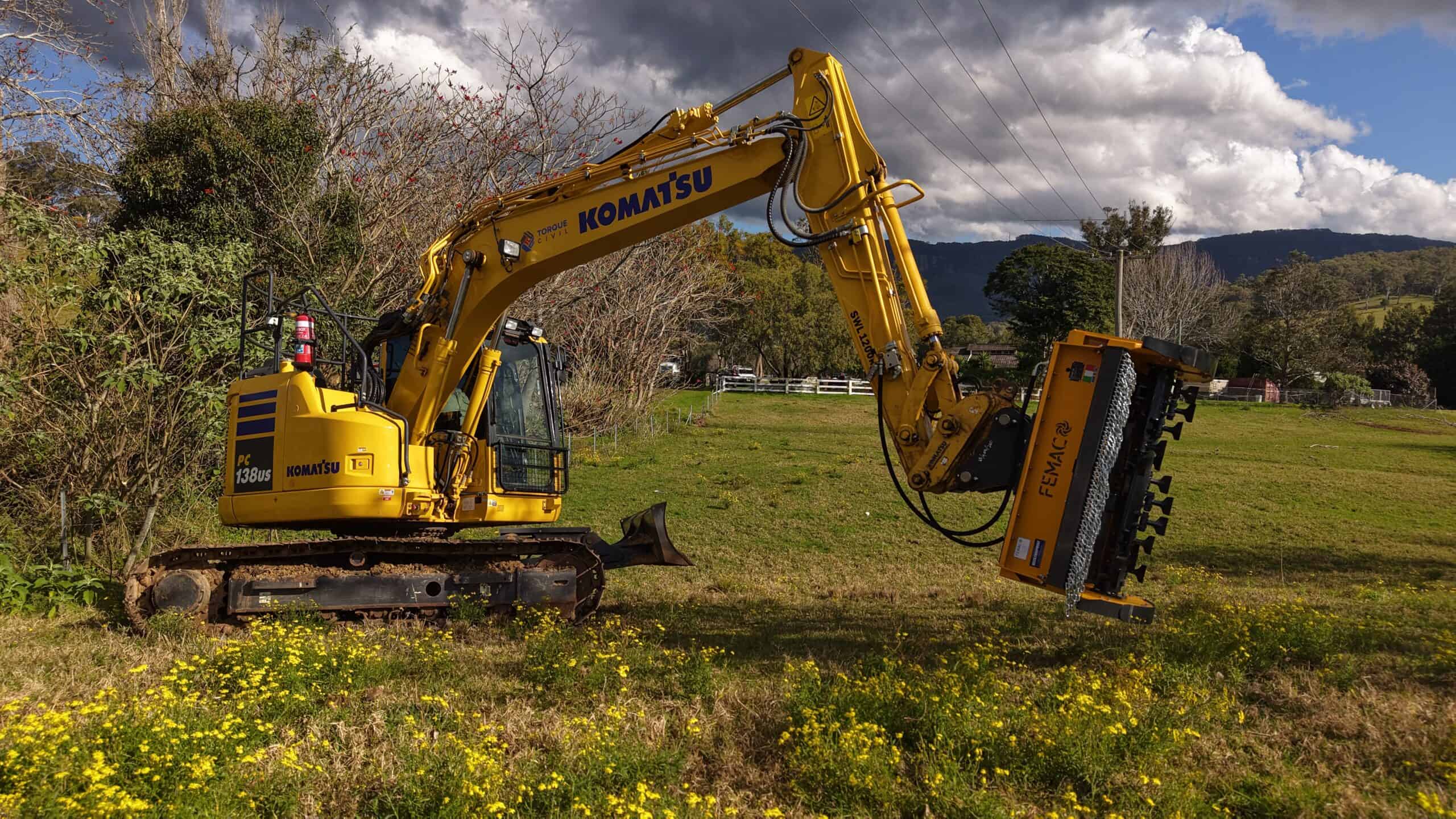

FEMAC T13 REV Hydraulic Mulcher for 8-16 T Excavators

Price range: $19,500.00 through $29,400.00 ex GST

Model

Clear

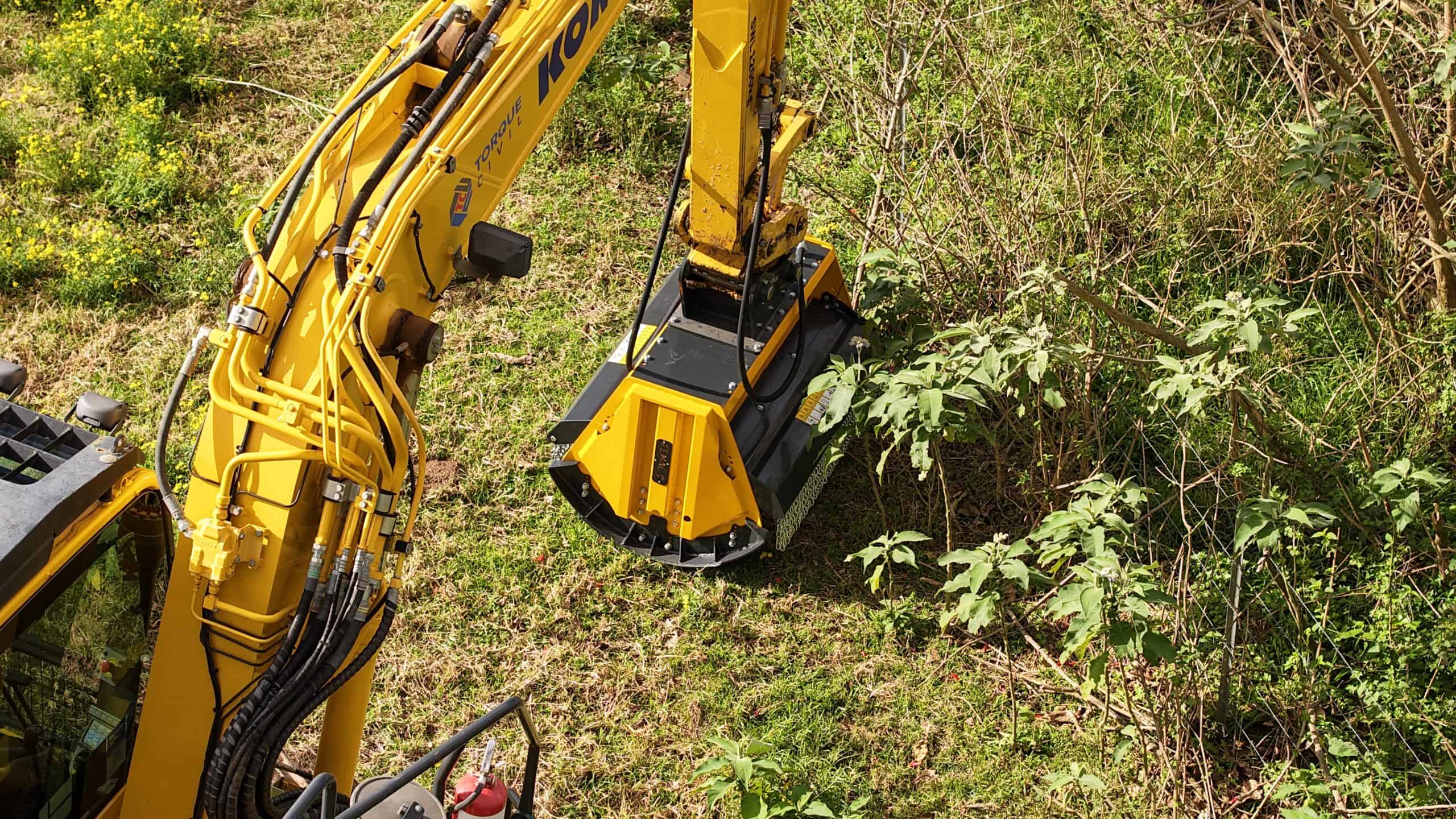

The FEMAC T13 REV is a high quality Italian mulcher attachment for large excavators from 8T – 16T. With three rotor options this mulcher can be configured to suit a range of machines for a variety of work. Great for land clearing, vegetation control, property maintenance, and forestry mulching.

REV stands for reversible. This mulcher is symmetrical in design, with identical input and output mouths, meaning it can be swept back and forth for continuous cutting without lifting off the ground. Unlike slasher style cutters, mulchers reduce vegetation into a finer material.

Available in swinging hammer flail mulcher and fixed tooth forestry mulcher configurations. Various tooth options are available for different vegetation types.

Rotor Options:

MZ Swinging Flail Hammer – rotor ideal for light vegetation clearing and grass cutting.

Small Trees
Fibrous Grasses
Lantana
Blackberry
Gorse
Hedges
Other Bushes and Scrub
Other Vegetation up to 80mm thick

FS 360° Swinging Forestry Hammer – rotor ideal for medium duty mulching in rough terrain

Small-Medium Size Trees
Grass
Thick Overgrowth
Large Bushes
Dense Scrub
Work In Areas with Hidden Metal and Rock Debris
Other Vegetation up to 120mm thick

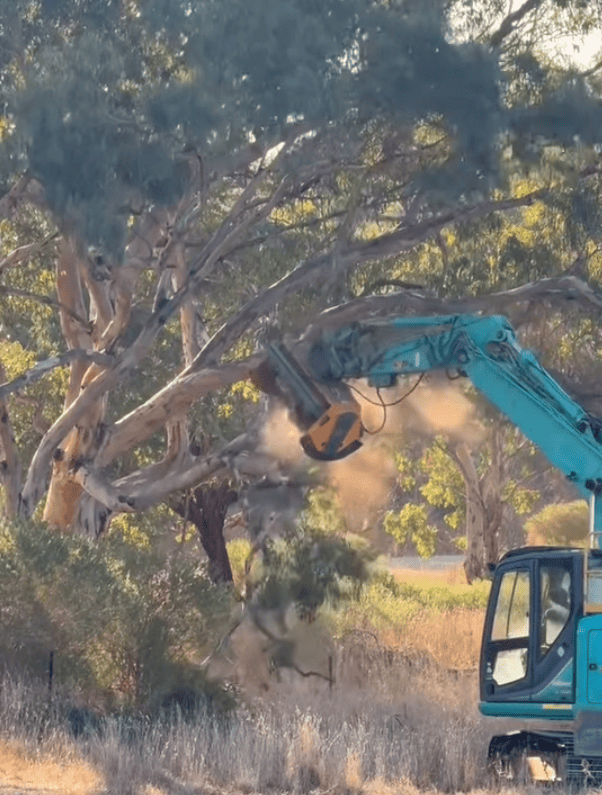

DF Fixed Tooth Forestry Rotor – ideal for heavy duty vegetation clearing

Medium-Large Size Trees
Forestry Work
Hardwood
Thick Overgrowth
Large Bushes
Dense Scrub
Other Vegetation up to 250mm thick

Size Options:

T13-130 REV: 1300mm cutting width

Key Features:

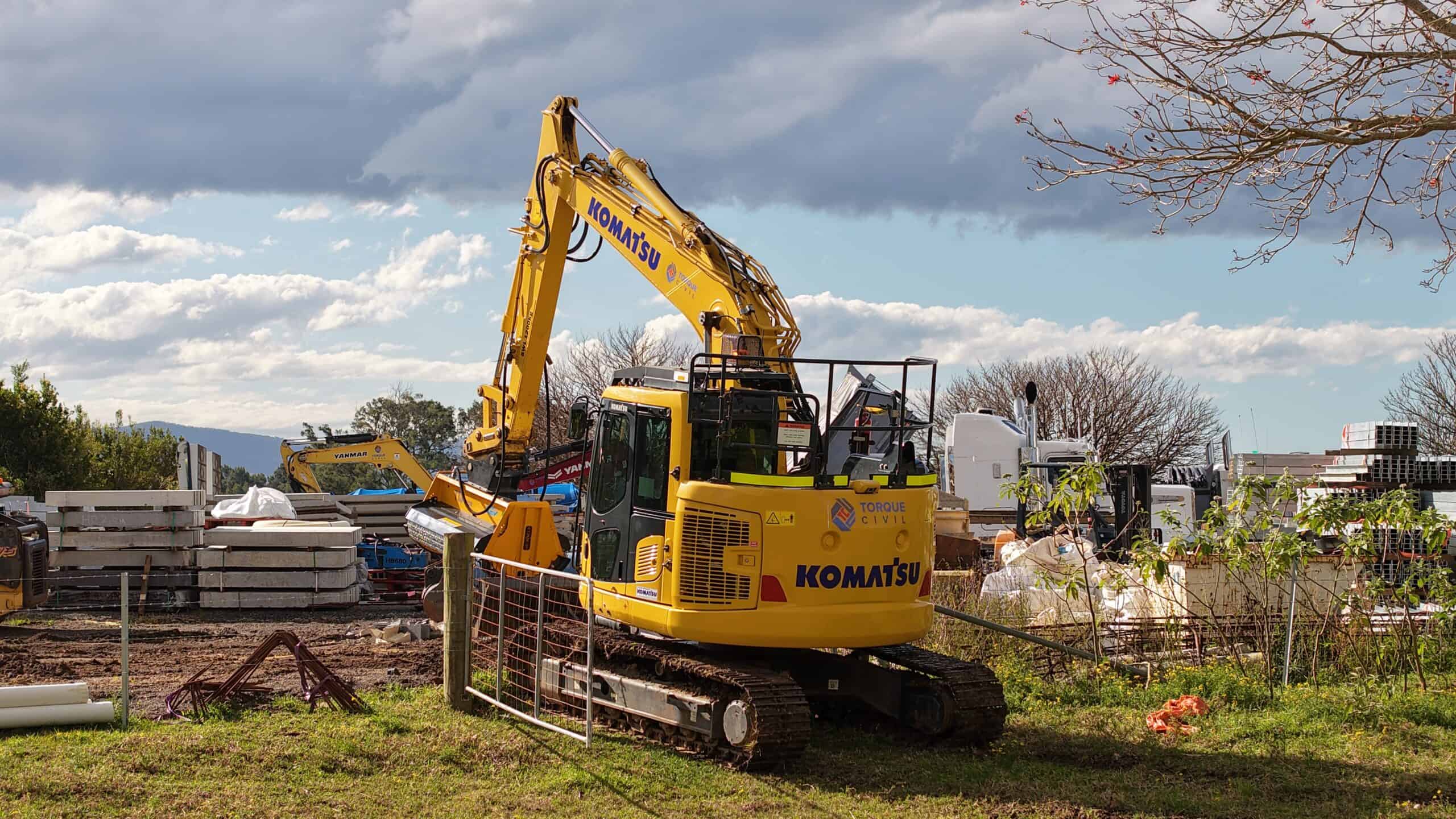

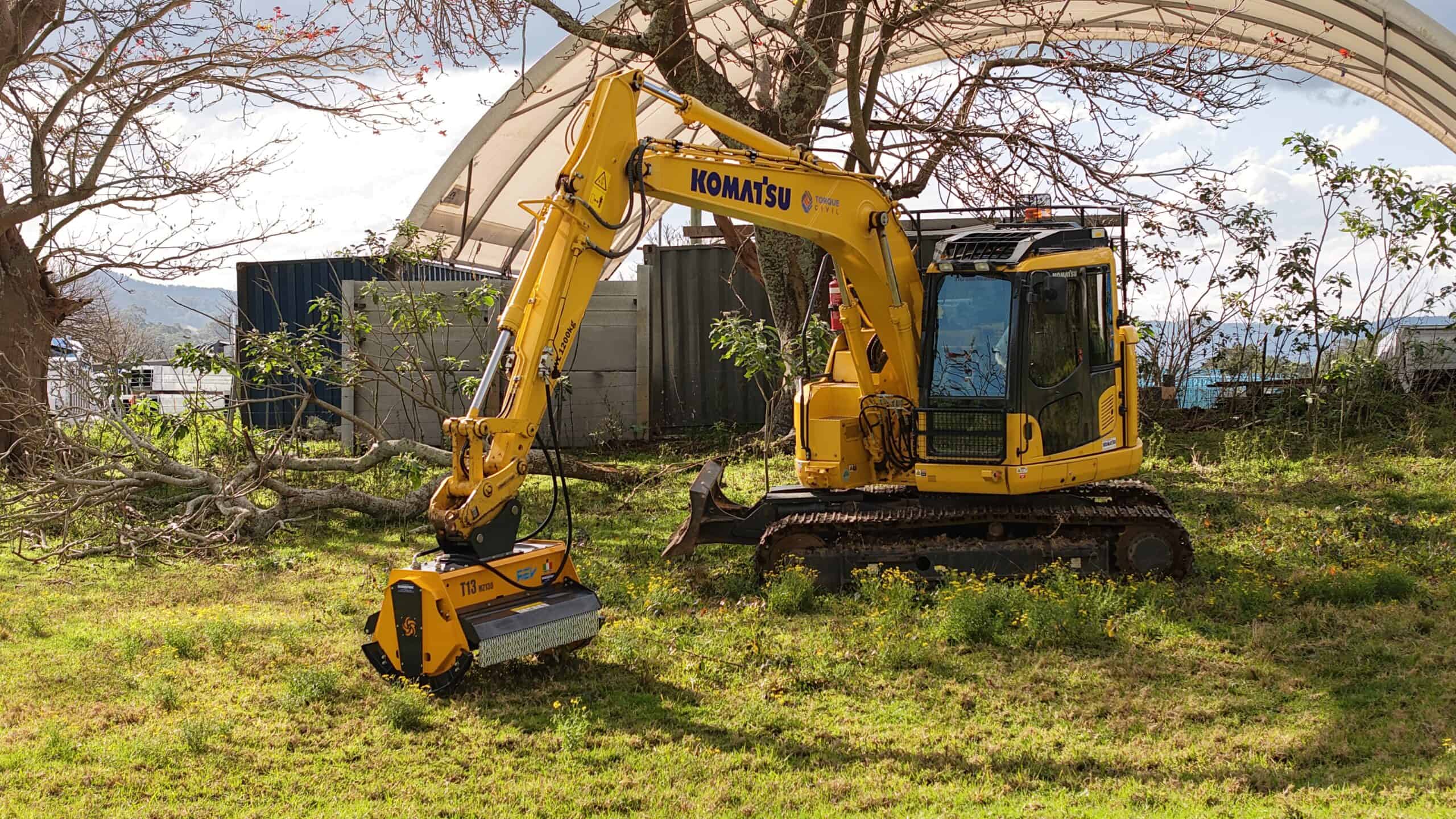

Excellent value mulcher for large excavators.
REV Symmetrical head for bi-directional cutting.
Casappa cast iron gear motor, heavy duty toothed belt driven rotor.

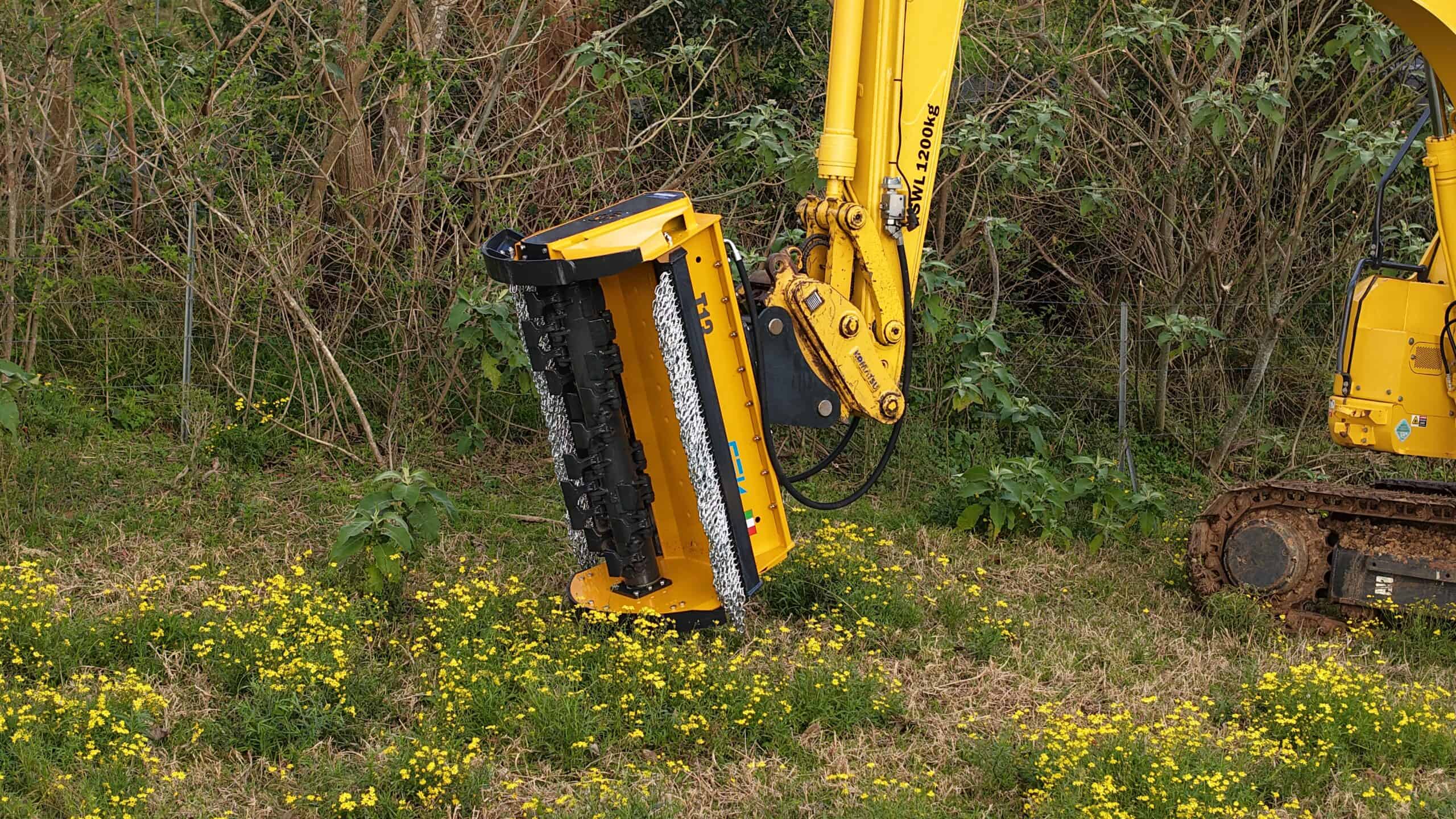

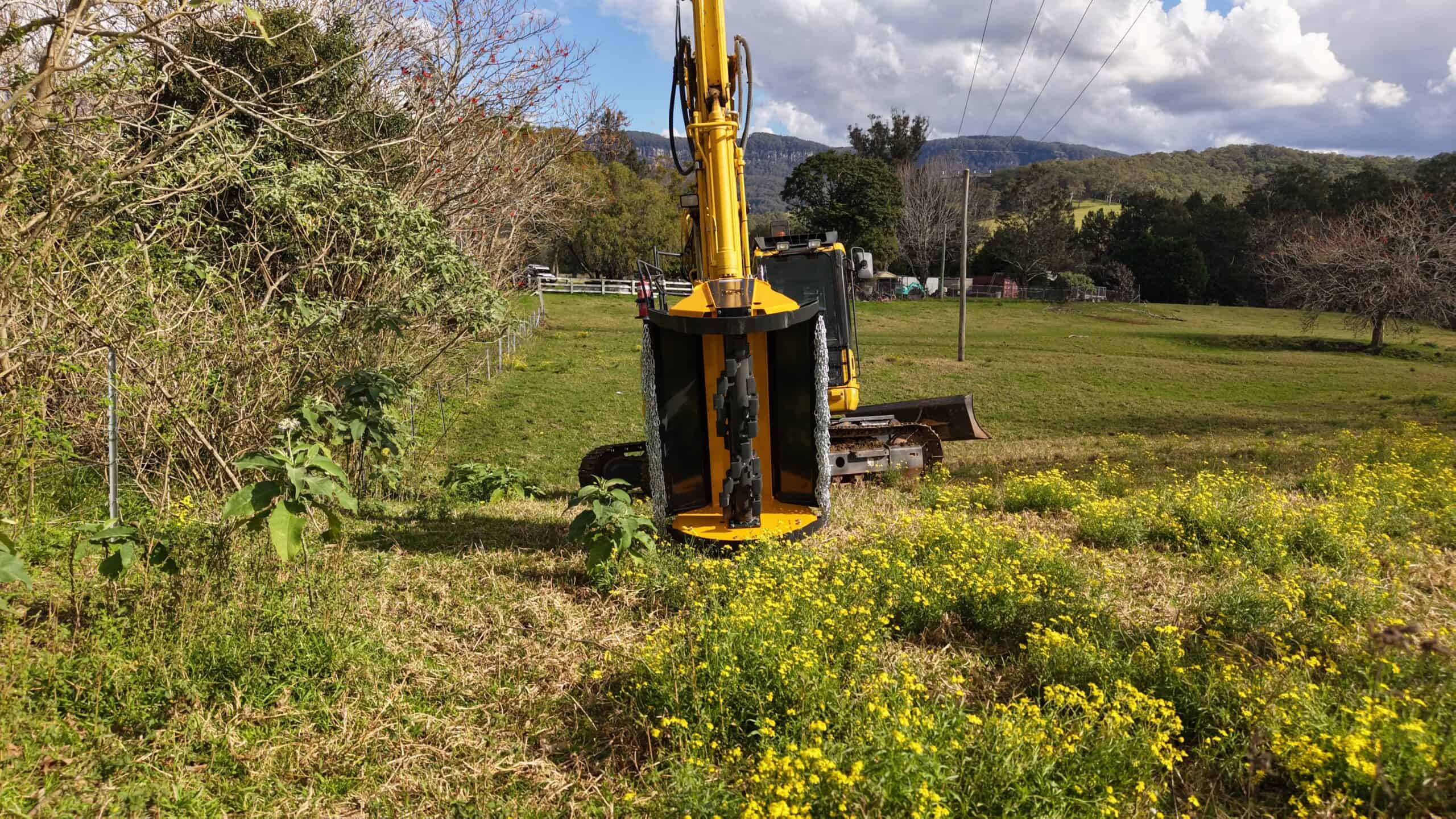

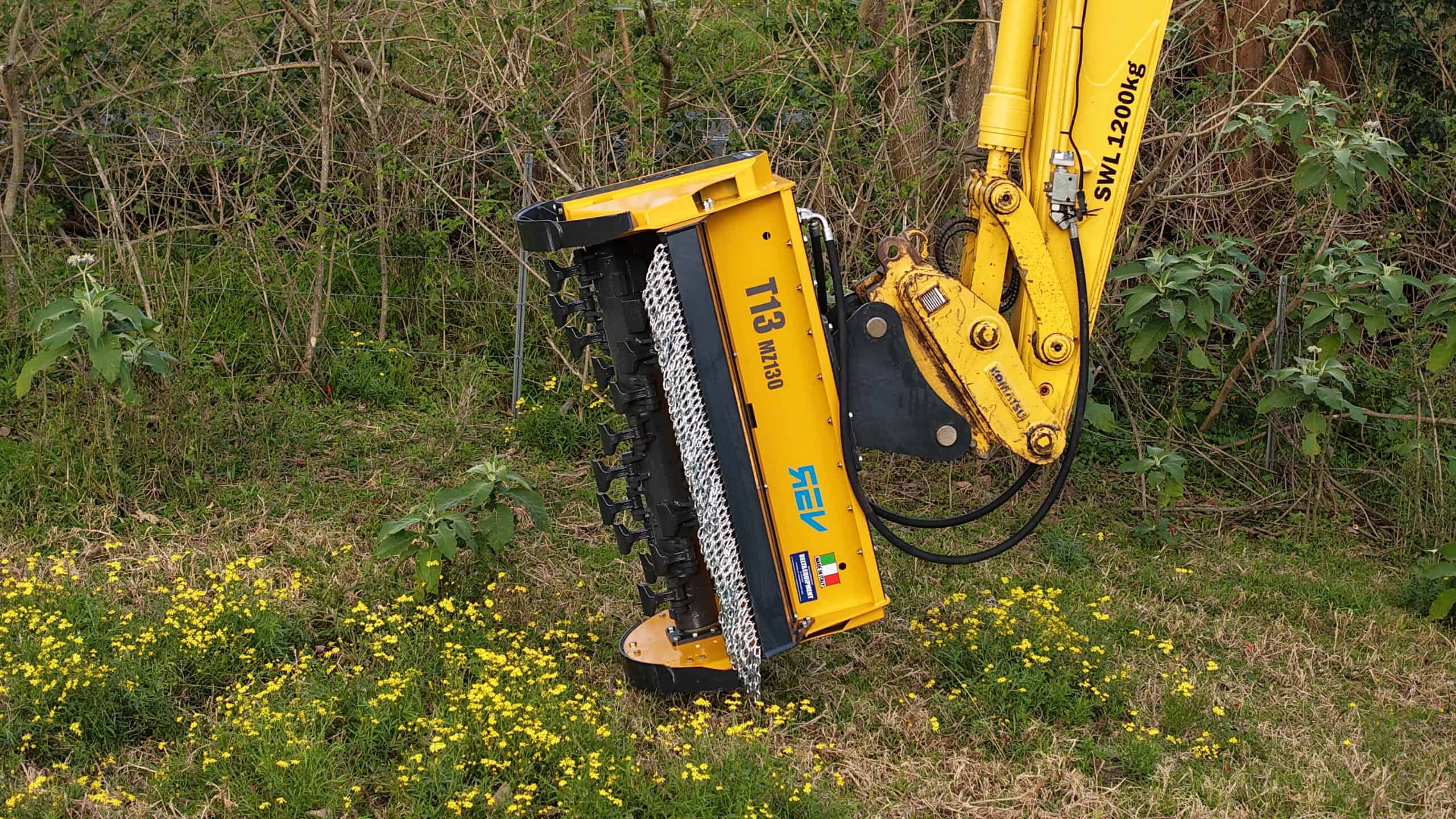

MZ swinging flail hammer – rotor Ideal for light vegetation clearing and grass cutting.

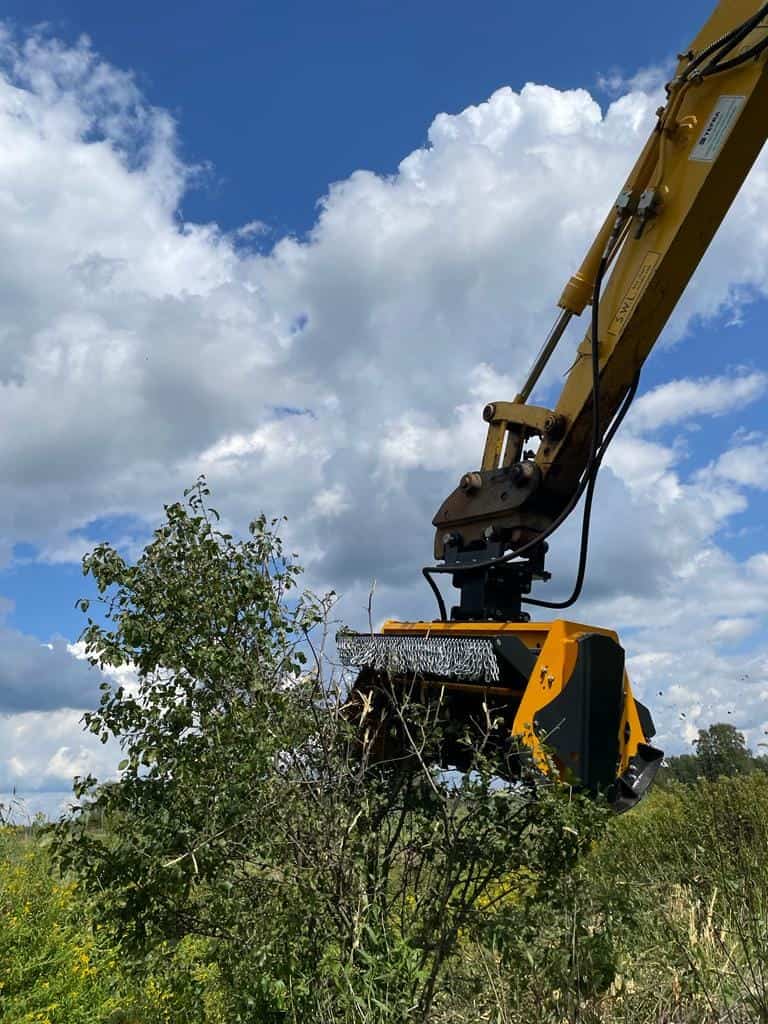

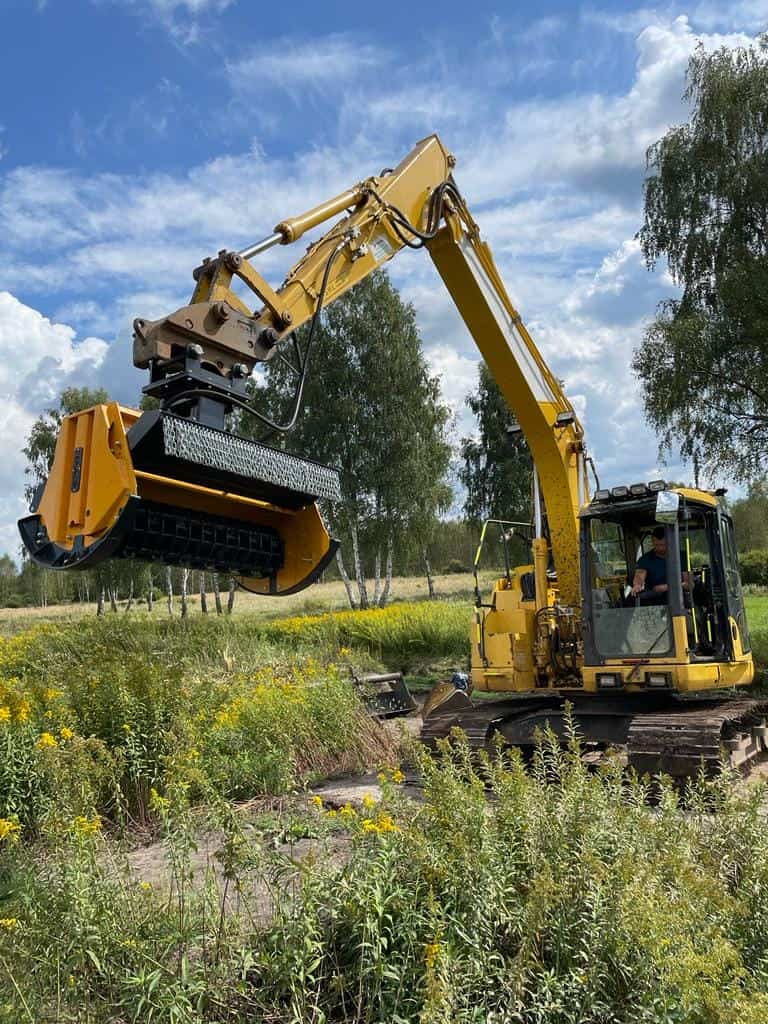

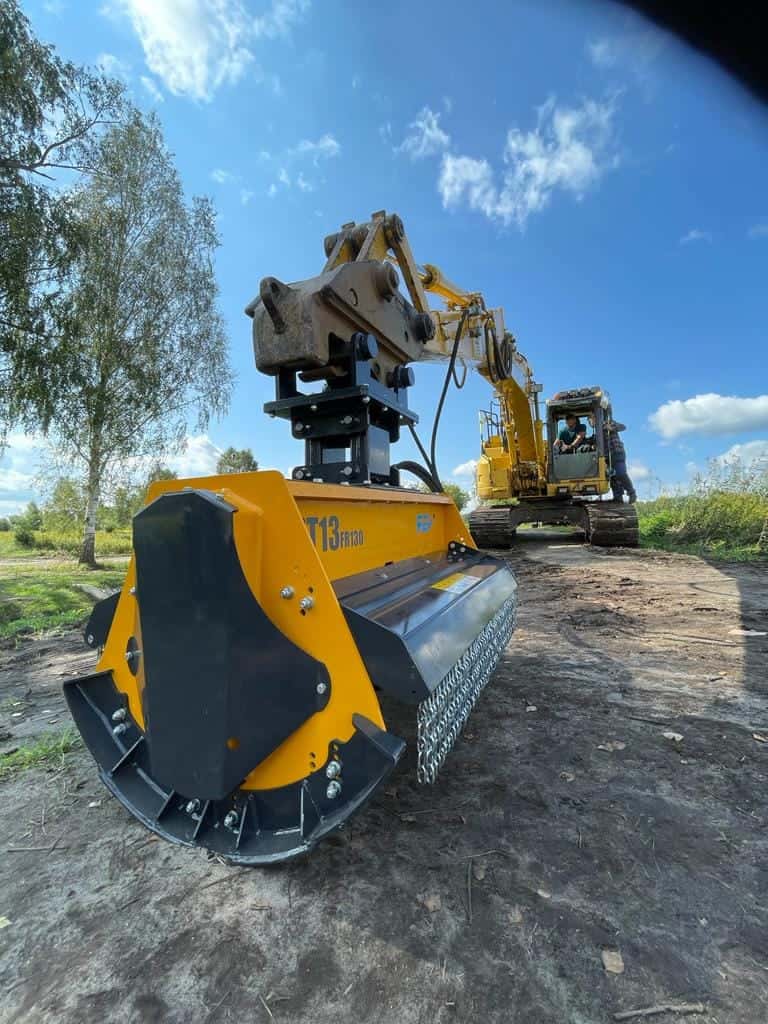

FS 360°swinging forestry hammer – rotor ideal for medium duty mulching in rough terrain.

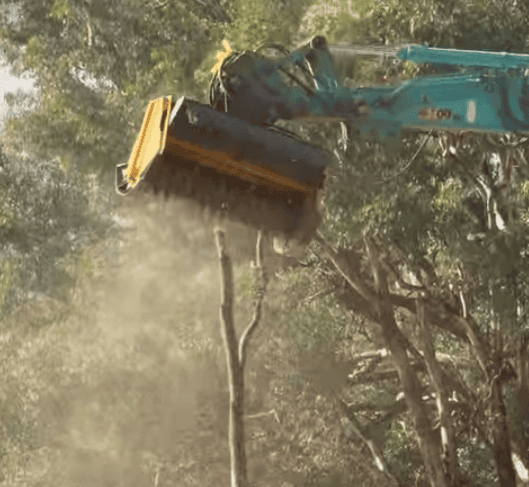

DF fixed tooth forestry rotor. Ideal for forestry work and heavy duty vegetation clearing.
Internally reinforced double-case body with interspace
Protective shield for belts and drive components
Symmetric shearing head, for a faster cut with the rotation of the excavator
Symmetrical Input and output mouths
Adjustable hoods, fully openable for higher cutting capacity
Side skids adjustable on 3 positions to change the height of the cut
Inside Rotor Supports with ”labyrinth” for the protection of the bearings from the impurities
Double Row spherical adjustable bearings of 1st quality
Valves block complete with priority valve for adjusting oil flow, anti-shock valve (pressure relief valve), anti-cavitation
Optional case drain
Chain curtains for debris control

Note: The FR105 and FR130 models have been superseded by the FS105 and FS130.

Made in Italy by FEMAC SRL

Specifications

Model	Excavator (tonne)	Cutting width (mm)	Dimensions (LxAxH cm)	Weight (Kg)	Motor Displacement	Oil L/min	Pressure Bar (min-max)	Transmission	Rotor	Teeth
T13 MZ105 REV	8.0-16.0	1,050	125x95x85	480	44-51	80-100	200-220	1 (50 mm)	Helical	16
T13 MZ130 REV	8.0-16.0	1,300	145x95x85	540	44-51	80-100	200-220	1 (50 mm)	Helical	20

T13 FS105 REV	10.0-16.0	105	125x95x85	580	44-51	80-100	200-220	1 (50 mm)	Helical	18
T13 FS130 REV	10.0-16.0	130	145x95x85	650	44-51	80-100	200-220	1 (50 mm)	Helical	36

T13 DF105 REV	10.0-16.0	105	125x95x85	685	44-51	80-100	200-220	1 (50 mm)	Helical	30
T13 DF130 REV	10.0-16.0	130	145x95x85	745	44-51	80-10	200-220	1 (50 mm)	Helical	36
