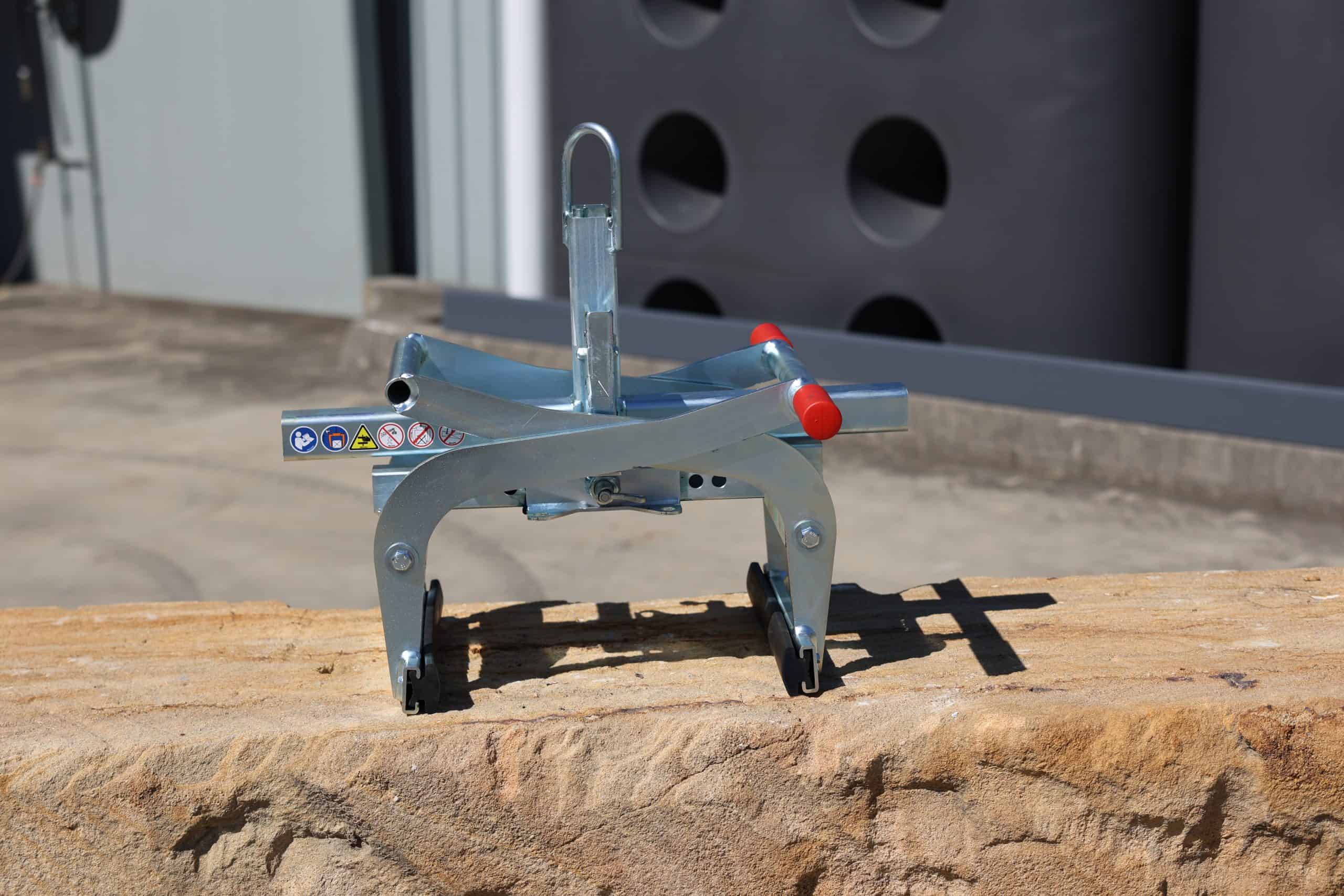

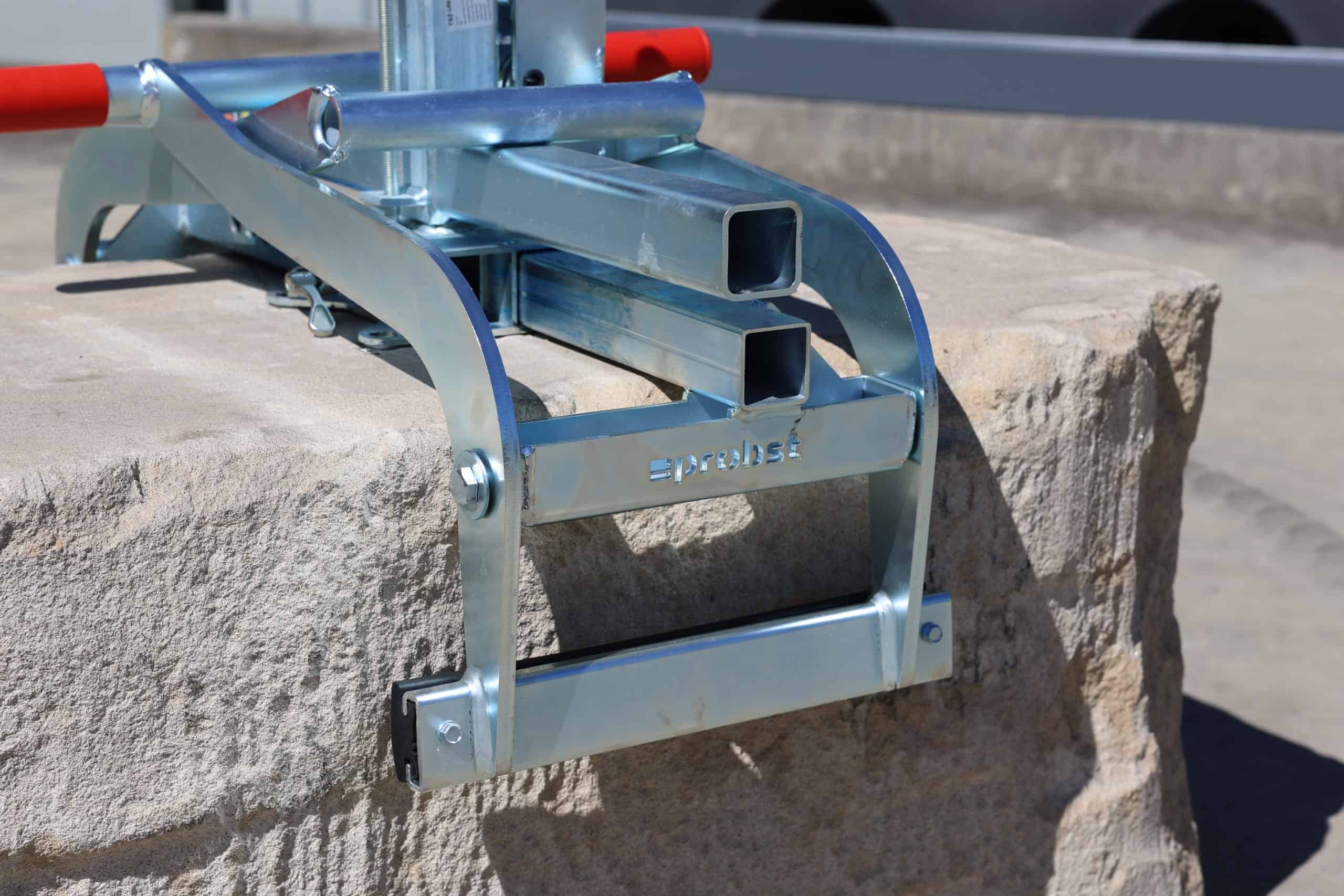

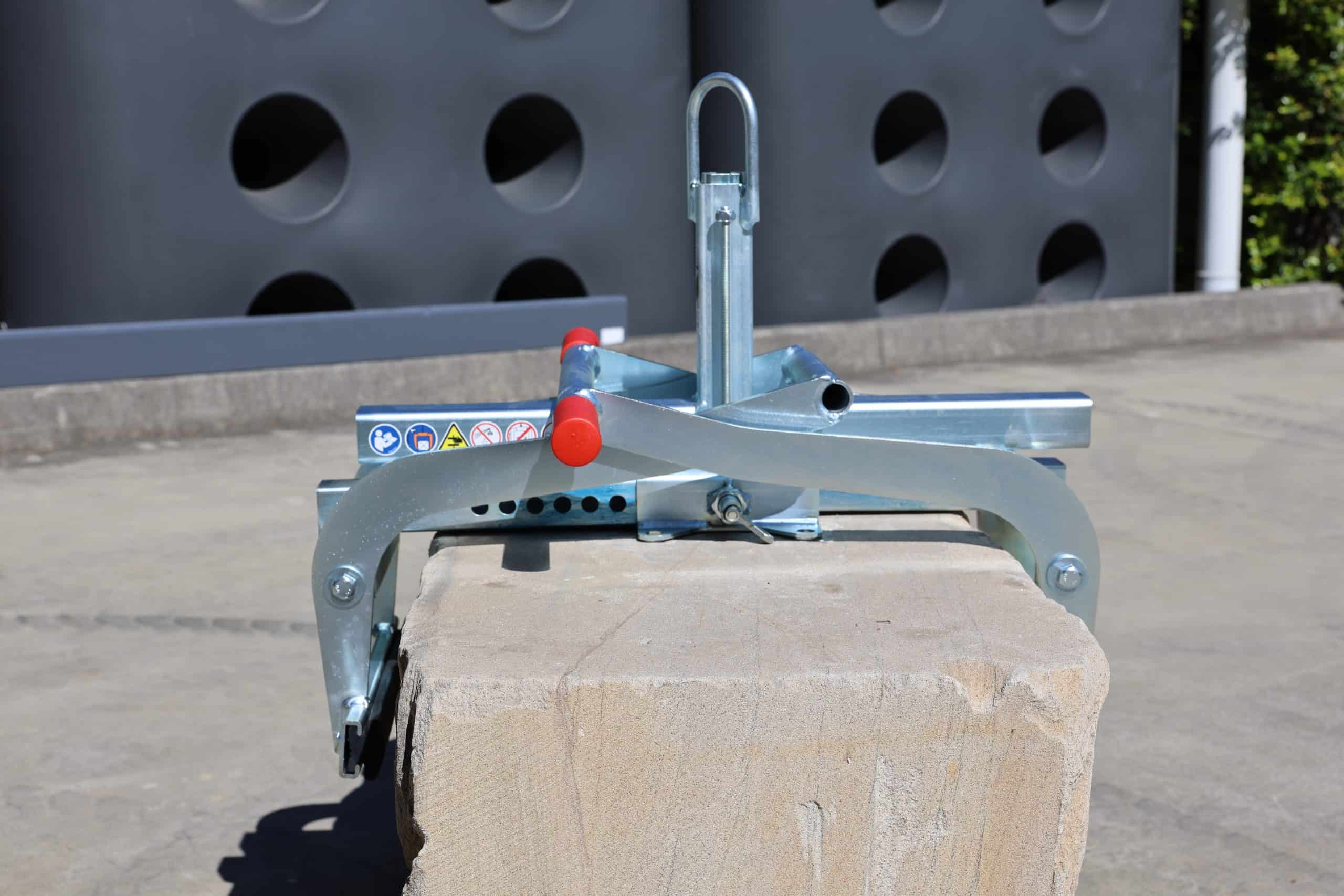

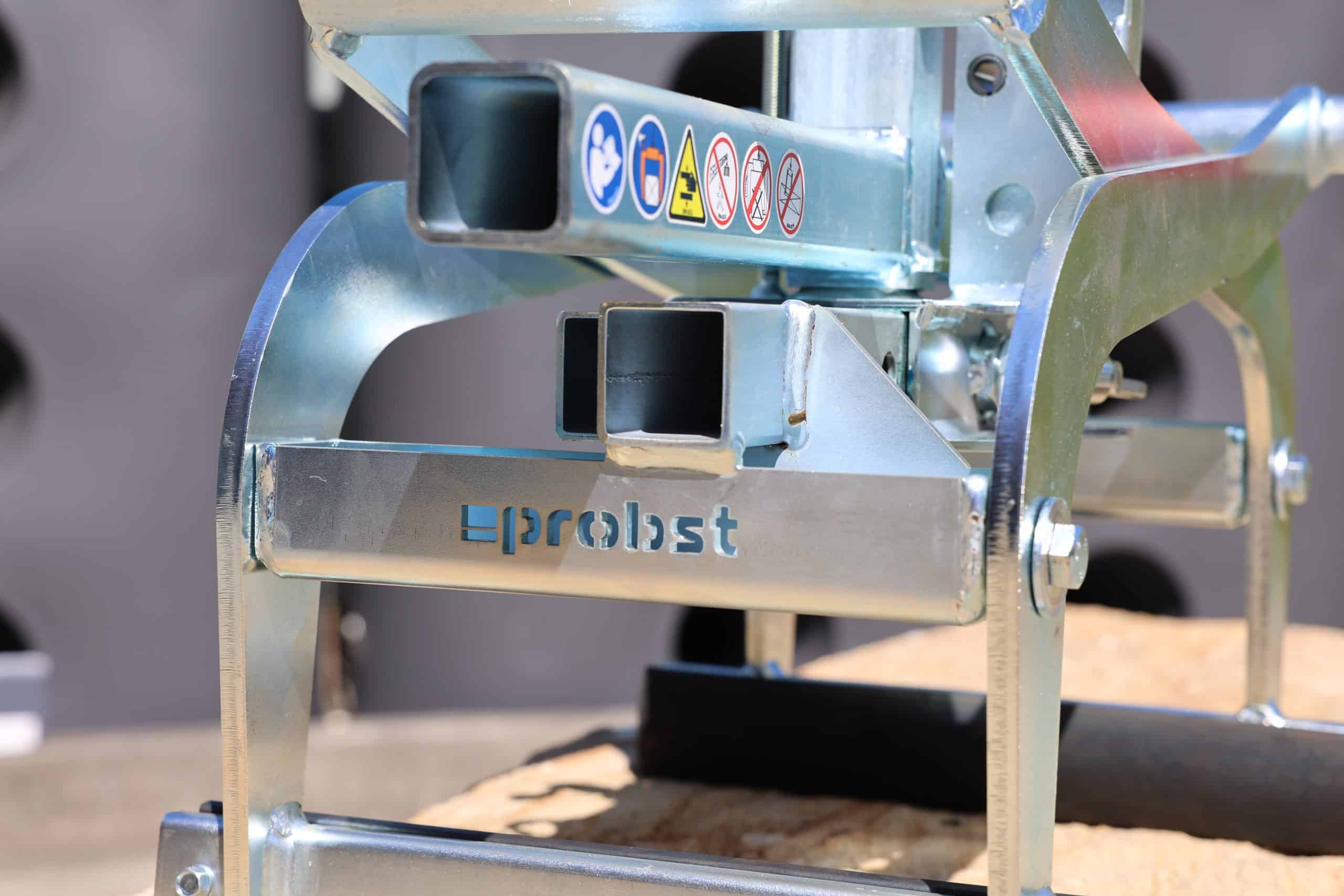

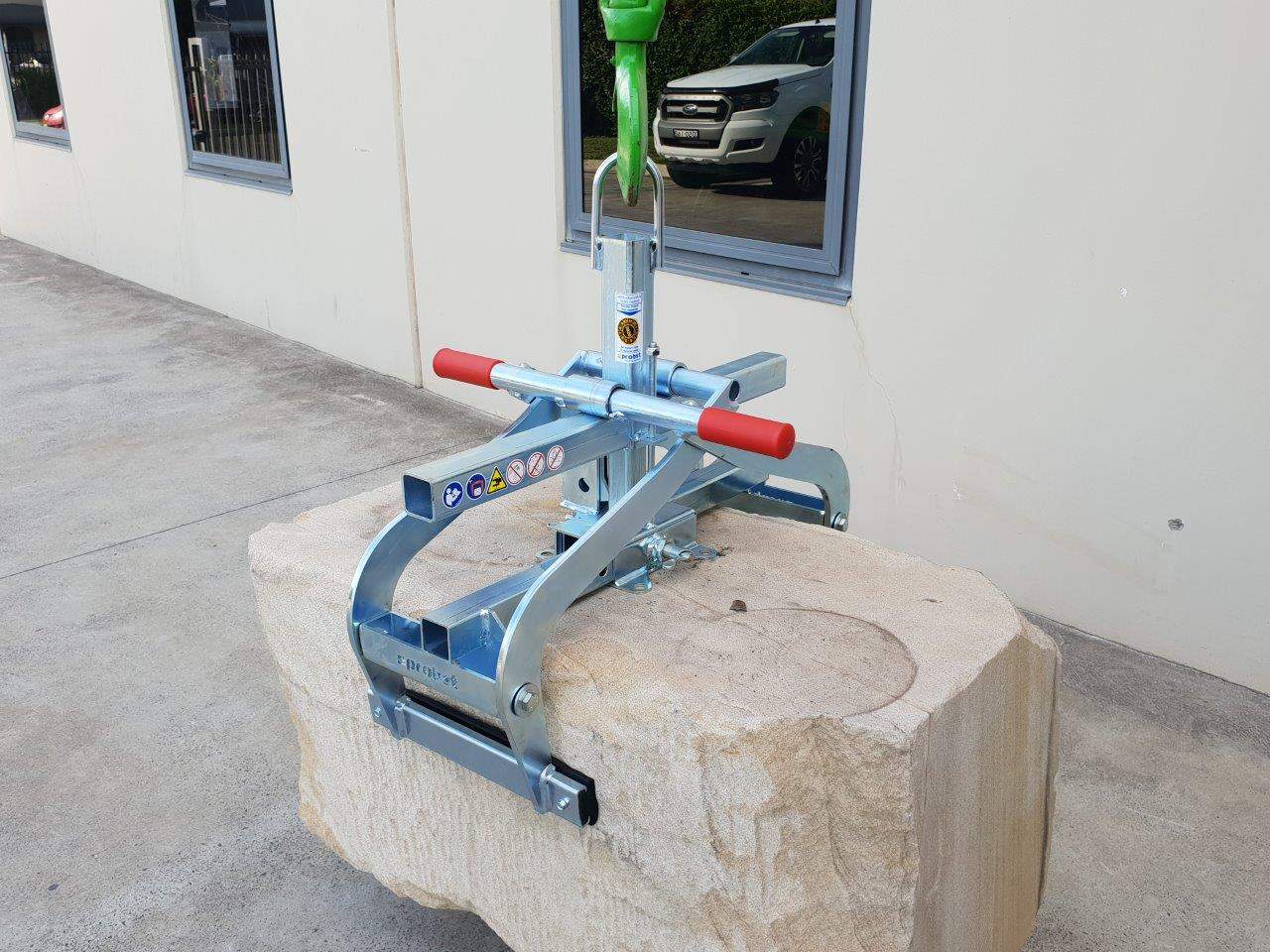

Probst TSZ-UNI Block Grabs for 800kg Blocks

The Probst TSZ-UNI Block Grab is designed for lifting and handling heavy blocks, ideal for:

• Sandstone blocks
• Limestone blocks
• Precast concrete

With an 800 kg working load limit and 50 – 600 mm gripping range, it is ideal for construction, landscaping and civil works.

Its automatic toggle mechanism allows easy gripping and release, while replaceable rubber grippers provide secure handling. The durable galvanised steel frame, adjustable locking bolt and guide handles ensure reliable performance and precise positioning.

Suitable for any carrier machine with sufficient lift capacity, the TSZ-UNI requires no hydraulic connections.

Key Specifications & Features

• Working load limit: 800 kg
• Gripping range: 50–600 mm
• Dead Weight: 31kg
• Automatic toggle lift and release mechanism
• Replaceable rubber grippers
• Galvanised steel construction
• Suspension bolt and lifting eye for easy attachment
• Suitable for sandstone, limestone, kerb stones, steps and precast concrete

Manufactured in Germany by Probst GmbH.

Specifications

Model	TSZ-UNI
Gripping range:	50— 600 mm
Inside height:	185 mm
Gripper length:	350 mm
Working load limit:	800 kg
Dead weight:	31 kg
Surface protection:	Galvanised

Options

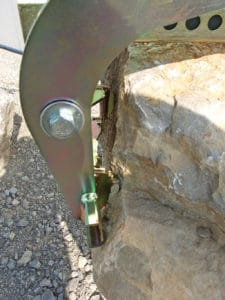

TSZ-UNI-WB-SQ: Special steel finger grippers allow for safe installation of roughly-cut ashlar rocks. The steel-finger grippers can be screwed on the clamp in just a few simple steps.

TSZ-UNI-ET: Fork sleeve with lifting eye and manual turning device, engaging every 90°. This allows the TSZ-UNI to be picked-up with fork lift tines.



Model	TSZ-UNI-WB-SQ	TSZ-UNI-ET
Gripping range:	50 — 550 mm
Inside height:	185 mm
Working load limit:	800 kg	800 kg
Dead weight:	6 kg	25 kg
Surface protection:	Galvanised	Galvanised

TSZ-UNI-HVA: Adjustable height stop for adjusting gripping depth on blocks.

Probst Adjustable Height Stop HVA-FTZ/TSZ

Adjustable Height Stop HVA-FTZ/TSZ for all versions FTZ-UNI/MAXI/MULTI and TSZ-UNI/MAXI. Adjustable range approx. 50 – 140 mm ( 2 – 5½)
