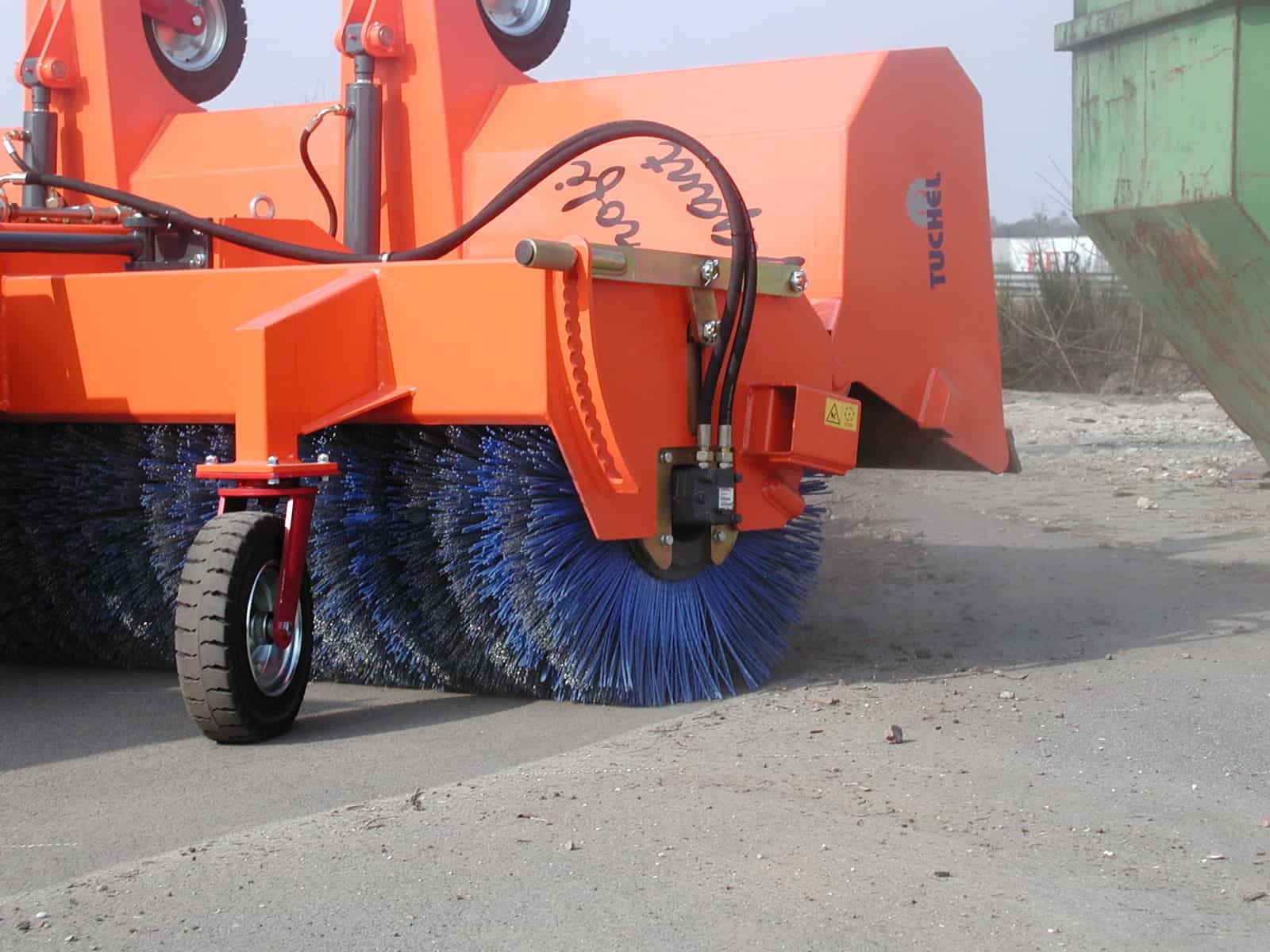

Tuchel-Sweep PROFI GIGANT Sweeper Attachment
The Tuchel-Sweep PROFI-GIGANT Sweeper attachment has been designed for the cleaning of extra large surfaces, such as airports, harbours, industrial plants, recycling companies, building-sites and industrial surfaces. With its massive design, for large tractors and wheel loaders, it doesn’t shy away from anything.
The hitch-pendulum joint protects the PROFI-GIGANT Sweeper attachment against overcharge when used with heavy carrier-vehicles and ensures an optimum bottom guidance. With its various working widths, from 260 cm up to 350 cm, and a brush diameter of 800 mm it cleans everything! The brush is driven by two strong, internal hydraulic motors with an oil flow controller. The machine has a special adjusting-lever system to adjust the brush, which ensures the brush wears down regularly.
The PROFI-GIGANT Sweeper attachment can be used with a hydraulic collector or for simple sweeping, without detaching the collector (hydraulic lifting, with shut-off cock).
Features:
- Working width: 260 / 290 / 320 / 350 cm
- Brush Ø 800 mm, 100 % PP-Beeline in honey-comb shape. The dense brush ensures high durability, very well suitable for coarse dirt.
- 3D-level compensation (pivoting part incl. pendulum joint and roller guide)
- Easy brush adjustment by an adjusting-lever
- Two internal hydraulic motors (incl. oil flow controller > 90 liters, 1″ hydraulic connectors)
- Broom with overrun control
- Splash guard
- Brand-named support-wheels Ø 410 x 145 mm
Why Operators Prefer Tuchel Broom Attachments:
- All Tuchel broom attachments drive forward
- Ergonomic design – operator doesn’t have to bend neck or twist his back to see cleaning area.
- More efficient debris removal than bucket brooms
- Designed for safety and operator comfort – clear visibility of attachment and cleaning area
- Performance and efficiency of the broom
- Fine adjustment so operators can perfectly set it to the right height
Manufacture of Tuchel takes place by Tuchel Maschinenbau GmbH in Germany.
| Technical data | 260 |
290 |
320 |
350 |
| Working Width (straight/angled) mm |
2600/2360 | 2900/2630 | 3200/2900 | 3500/3170 |
| Brush ø mm | 800 | 800 | 800 | 800 |
| Total width mm | 295 | 325 | 355 | 385 |
| Required oil flow (at 160 bar) l/min | 100 | 100 | 100 | 100 |
| Weight simple sweeping kg |
1357 | 1399 | 1443 | 1486 |
| Weight incl. hopper* kg | 1864 | 1932 | 2002 | 2071 |
| Fill capacity l | 760 | 850 | 935 | 1025 |
* incl. quick hitch for wheel loaders
Measurements and weights in these specifications are approximate and non-binding
Hitch systems:
- Quick-hitch for wheel-/ telescopic loaders with 3D levelling and height indication
- Three-point linkage CAT I/II incl. 3D levelling and height indicator
Each machine can be configured individually according to your requirements.
- Large hopper incl. PU-lip, high-fill flap, hydraulic tip (via 2 cylinders, incl. shut-off cock for simple sweeping) and integrated 3rd and 4th support-wheel
- Hydraulic angling via 2 cylinders (1 additional double-acting hydraulic drive circuit required)
- Water-spray system incl. 2 x 200 l tanks and intermitting pump for dust suppression
- Fully adjustable hydraulic side brush for corner sweeping, incl. speed regulation and shut-off cock
- Road traffic equipment (prescribed to drive on public roads)
- Extra colour shade
Tuchel sweeper and broom attachments are manufactured by Tuchel Maschinenbau GmbH in Germany. For more information call (02) 4272 6044 or contact us
