Probst HVZ-Pavertron Electro-Hydraulic Installation Clamp
The Fastest Way to Mechanically Lay Pavers

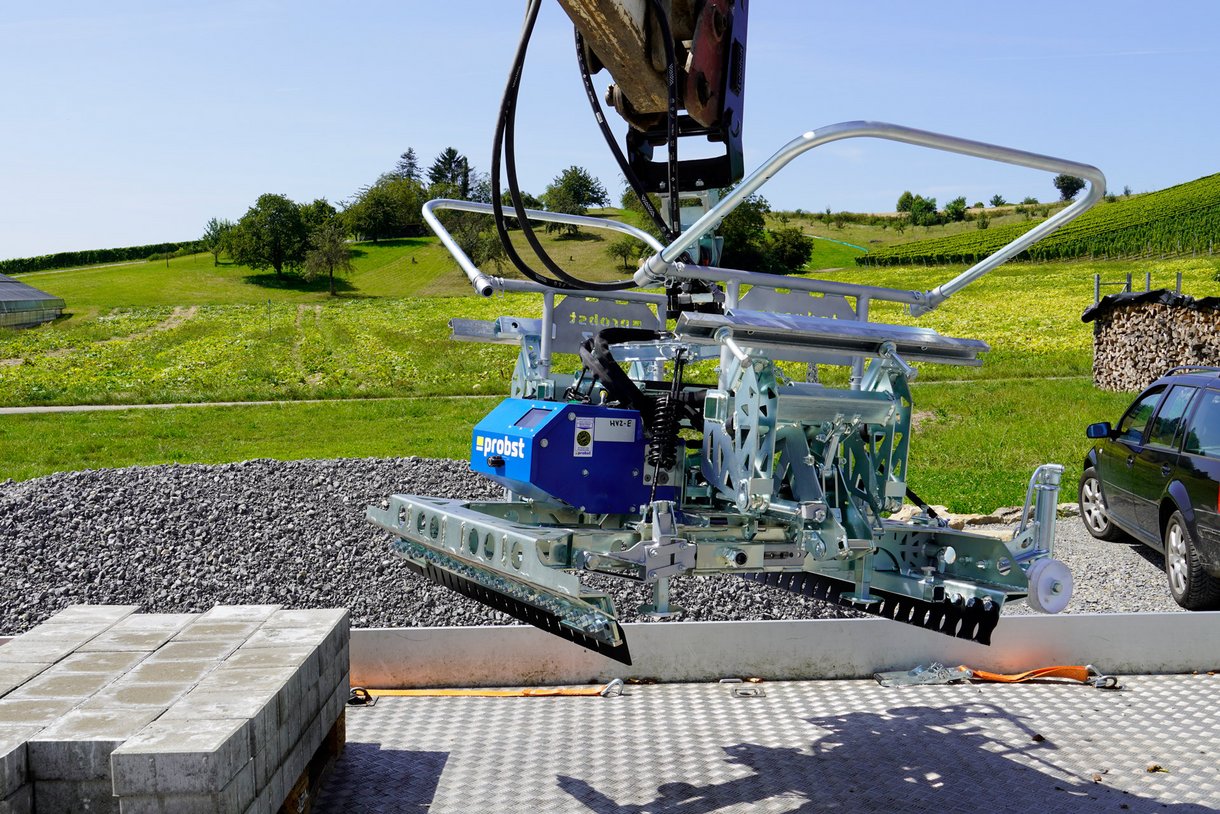

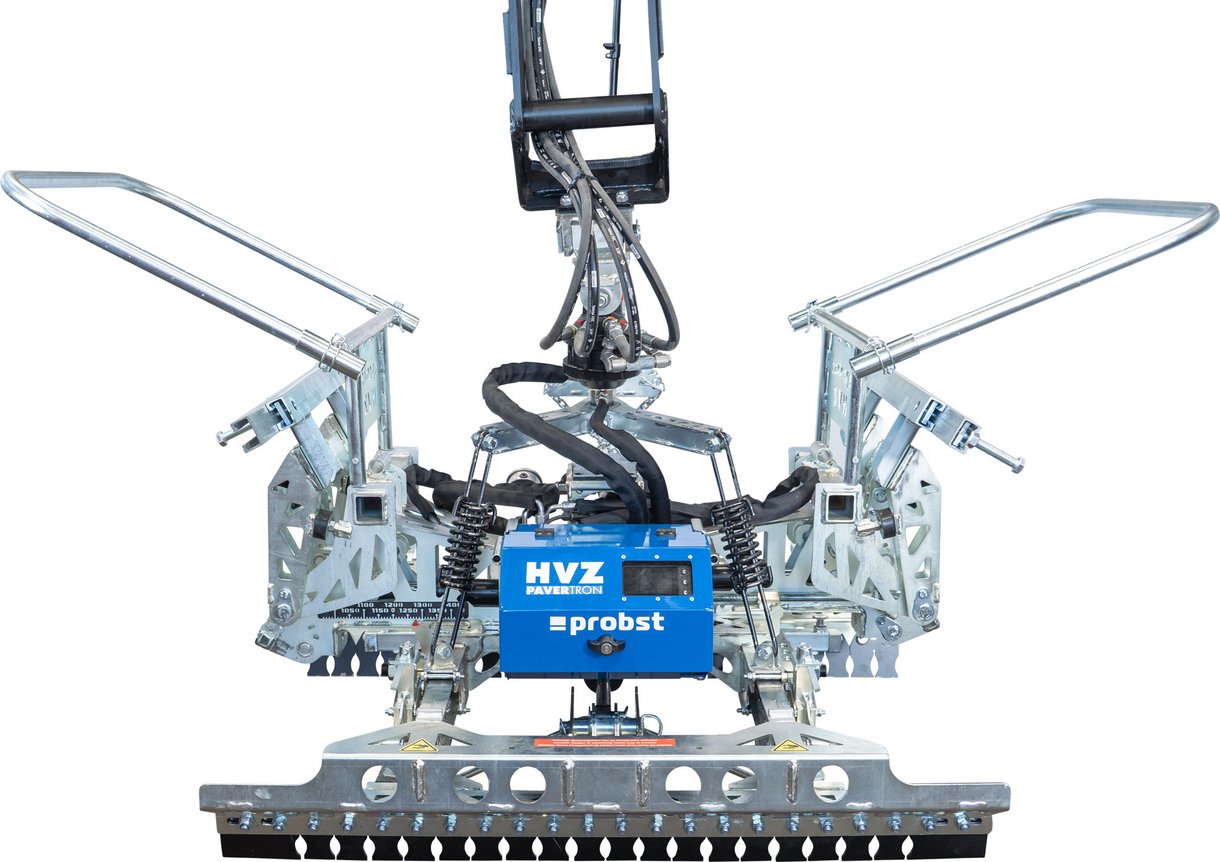

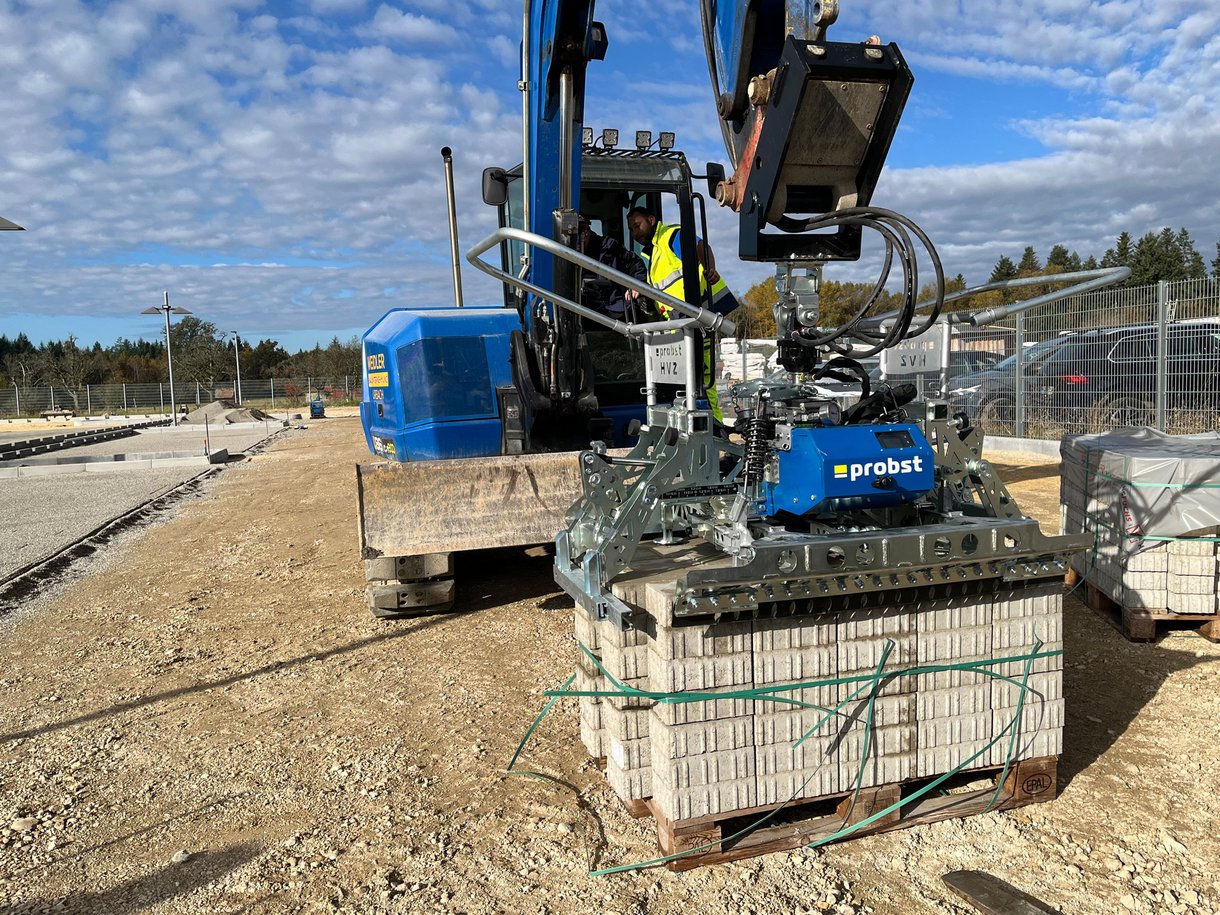

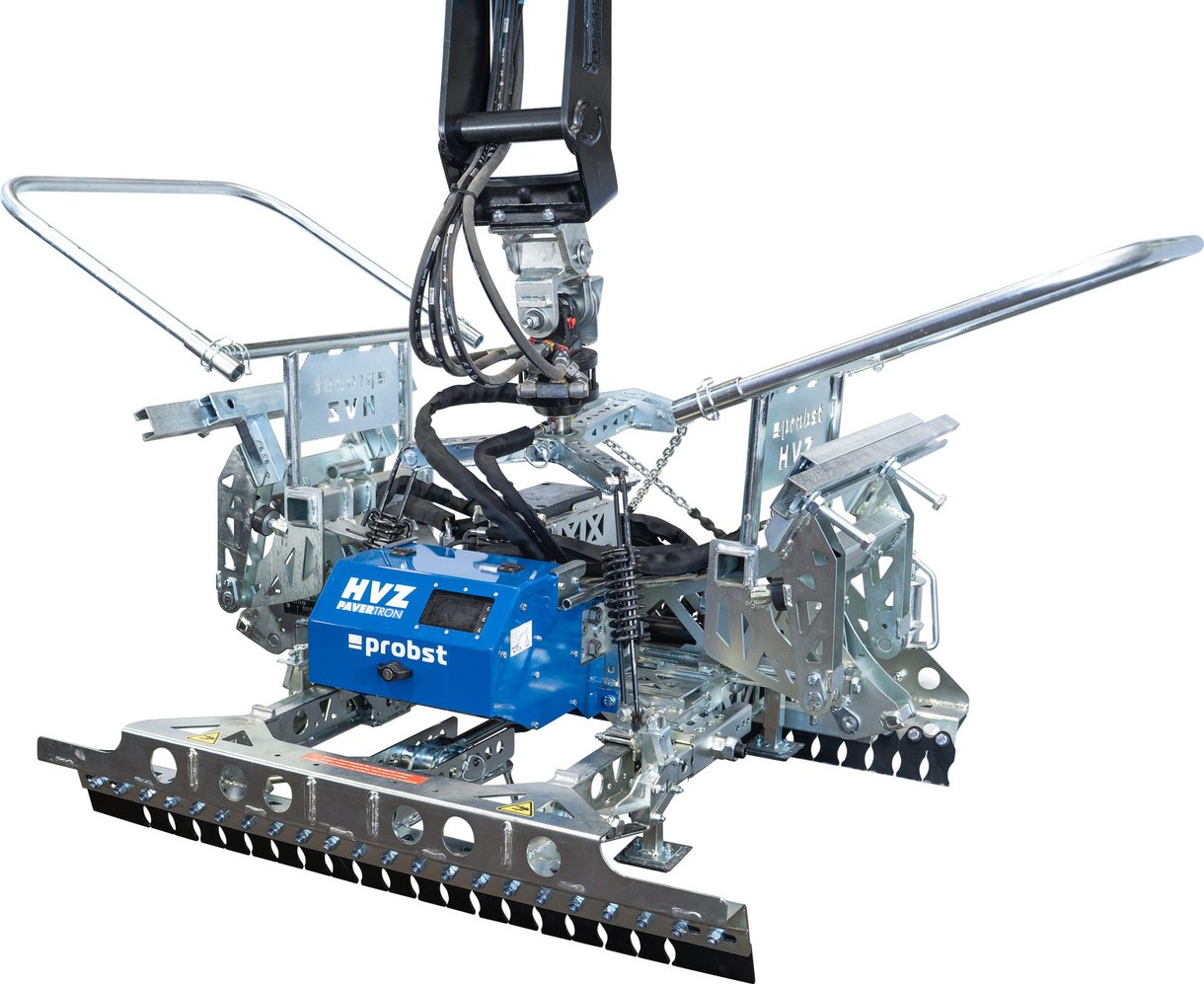

The Probst HVZ-PAVERTRON is the world’s first electro-hydraulic paving clamp designed for excavators from 2.5 tonnes. Combining hydraulic power with intelligent electronic control, it delivers faster cycle times, greater precision and higher productivity than conventional paving clamps. Ideal for contractors looking to maximise efficiency on every job.
Key Benefits
- Lay up to 700m² of paving per day
- Ultra-fast 4.5 second clamp cycle
- Automatic calibration to suit your excavator’s hydraulic system
- 10 programmable operating modes for different paving patterns and site conditions

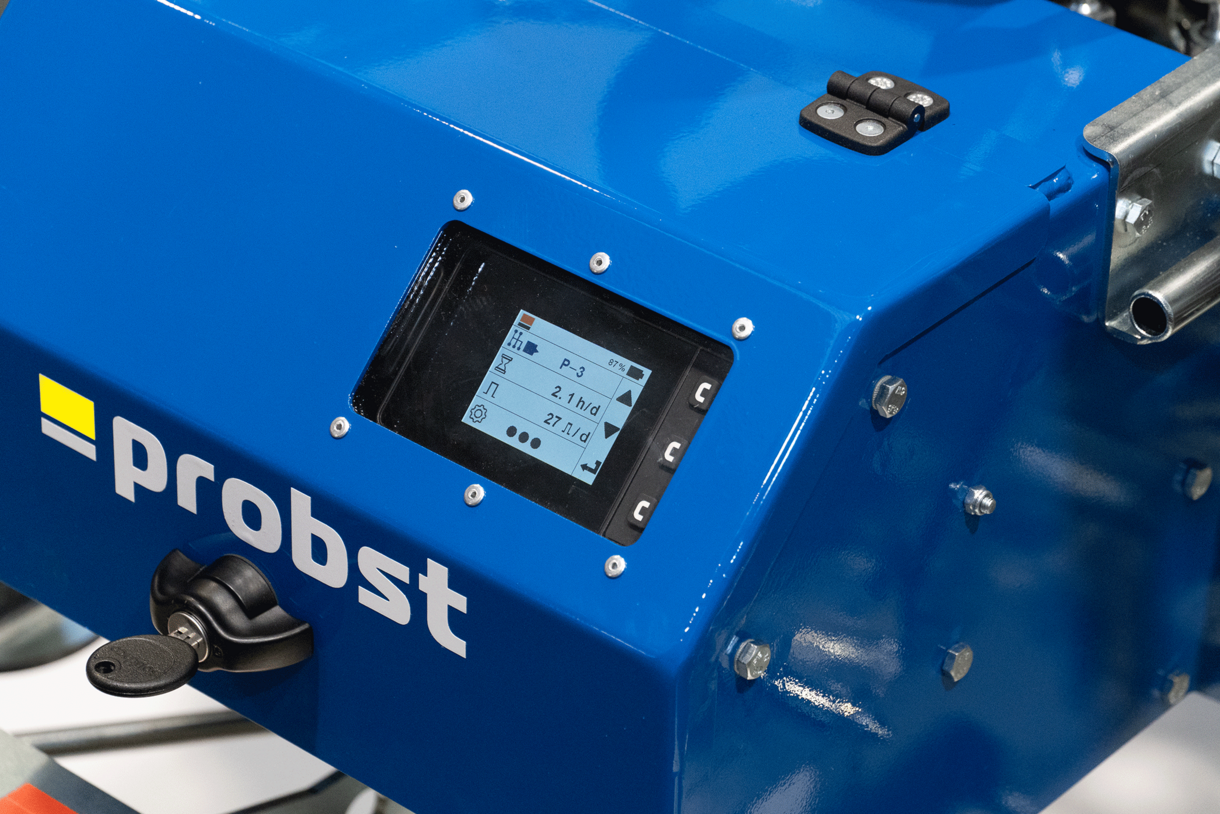

- Simple operation via onboard colour display or optional remote control
- Robust, lightweight construction for long service life
- Compatible with excavators from 2.5 tonnes

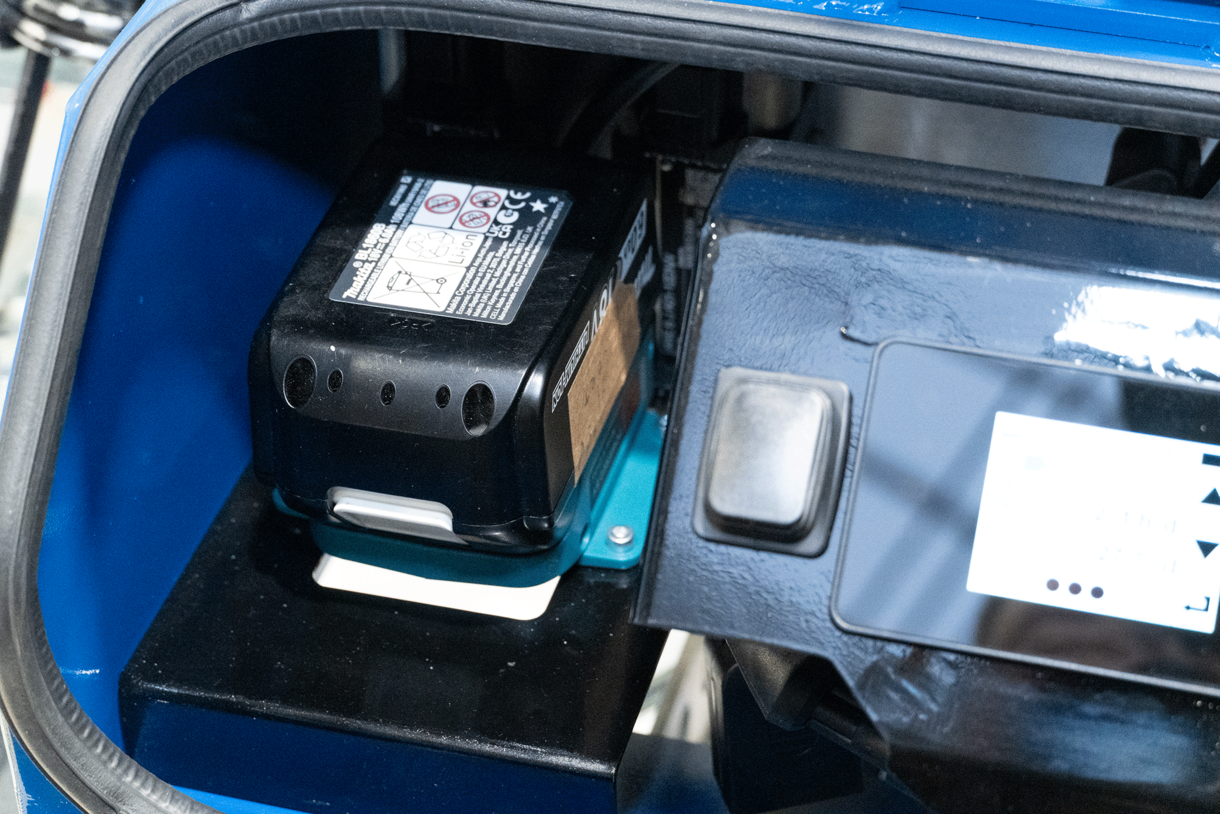

- Powered by a Makita 18V battery, providing up to 560 laying cycles per charge
Intelligent Electro-Hydraulic Control
Unlike conventional hydraulic clamps, the HVZ-PAVERTRON uses electronic control to optimise every movement. The integrated control system automatically calibrates to the carrier machine, delivering the fastest possible clamp operation while ensuring smooth, precise movements.
Designed for Maximum Productivity
Every feature has been engineered to reduce downtime and manual handling:
- Folding handles for working alongside walls and confined spaces

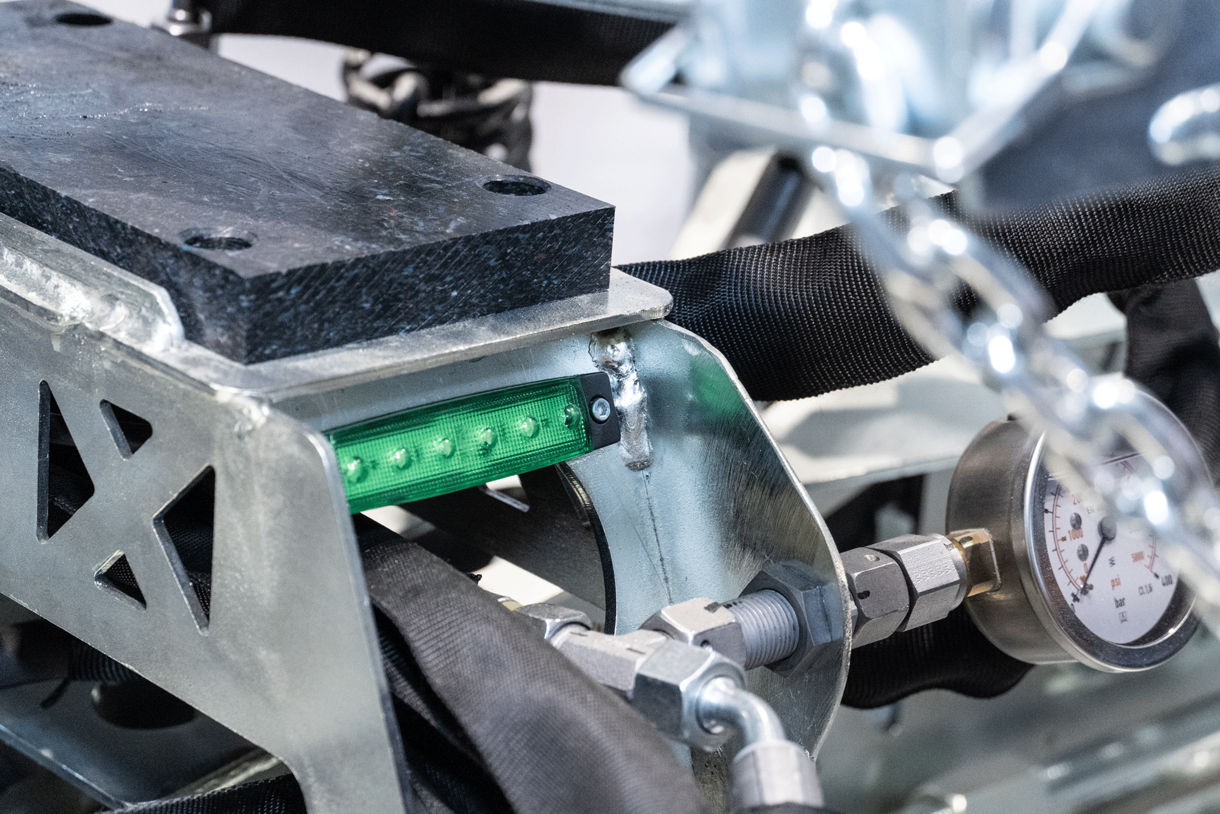

- LED status indicator for safe operation

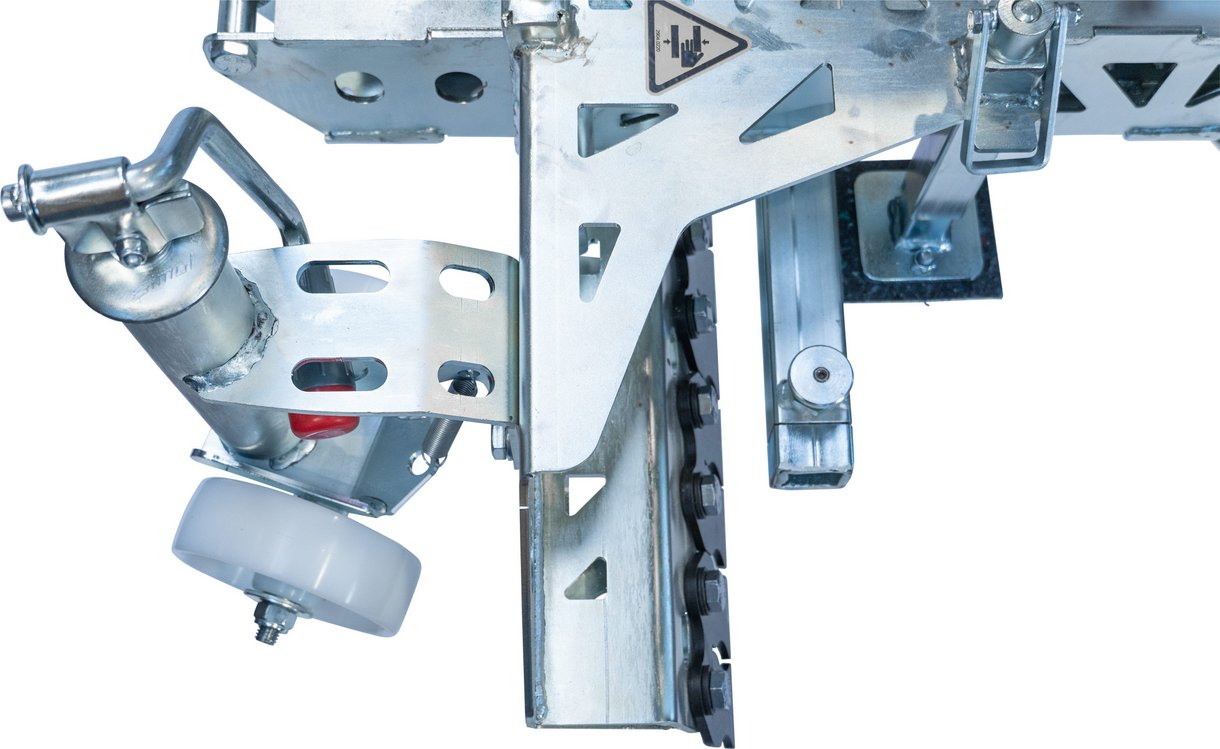

- Support rollers requiring only a single starter row

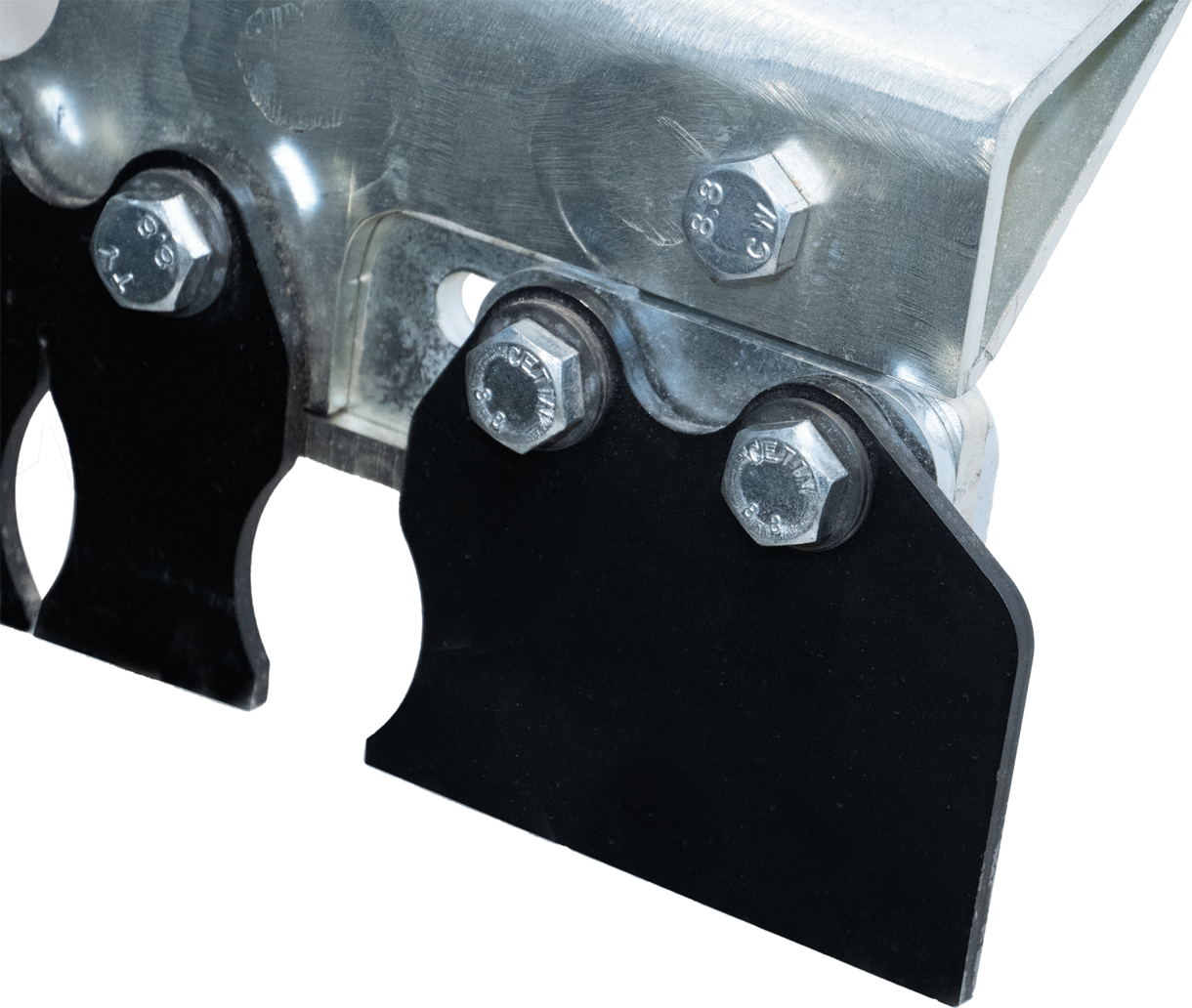

- Sliding slats to protect newly laid paving
- Built-in cycle and operating hour counter for maintenance and hire fleet management
Adaptable to Almost Any Paving Pattern
The HVZ-PAVERTRON accommodates a wide range of paving layouts using dedicated adapters for interlocking pavers, anti-shift pavers and 1/3 running bond patterns. This flexibility allows contractors to complete a greater variety of projects with one machine.
Standard Equipment
- HVZ-PAVERTRON electro-hydraulic paving clamp

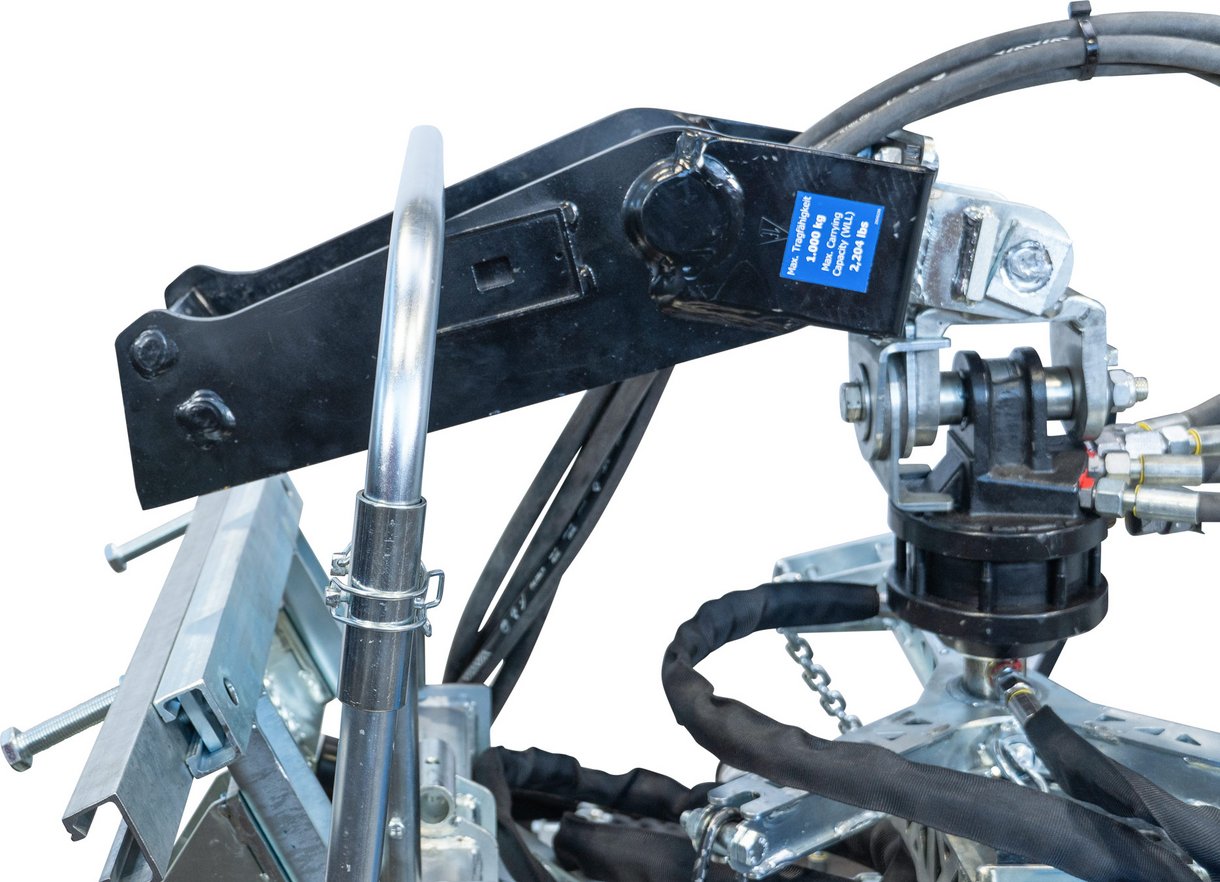

- 360° hydraulic rotator
- Universal excavator attachment fork
- Pendulum brake
- Hydraulic hoses
- Position adapter
- Makita 18V / 4Ah battery
- Working Load Limit: 400 kg
- Dead Weight: 238 kg
- Gripping Range: 600 – 1000 mm
- Hydraulic Pressure: 170 – 320 bar
- Hydraulic Flow: 16 – 75 L/min
- Opening Width (Main Gripper): 580 – 1100 mm
- Opening Width (Side Gripper): 960 – 1440 mm
- Length of Gripper: 1150 mm
| Type | Order no. | Description | Dead Weight | Working Load Limit/WLL | Dimensions Stone/Element LxW | Paver Layer RowsxStones/Row | Length |
|---|---|---|---|---|---|---|---|
| Makita LG-230V/18V | 24110248 | Quick charger | |||||
| HVZ-PAVERTRON-FFS | 41401251 | Remote control | 0,41 kg | ||||
| LSW-MS-03 | 40110268 | Adapter suspension for Lehnhoff type MS-03 | 29 kg | 1000 kg | |||
| LSW-MS-08 | 40110269 | Adapter suspension for Lehnhoff type MS/HM 08 | 75 kg | 1000 kg | |||
| LSW-MS-03 + MS-08 | 40110434 | Adapter suspension for Lehnhoff type MS-03 and MS-08 | 49 kg | 1000/1000 kg | |||
| MSW-M03 | 41401191 | Adapter suspension for Martin type M03 | 34 kg | ||||
| MSW-M10 | 41400599 | Adapter suspension for Martin type M10 | 34 kg | ||||
| UBA-1200 | 41400571 | Universal excavator suspension | 15 kg | 1200 kg | |||
| UBA-3000 | 41400088 | Universal excavator suspension | 18 kg | 3000 kg | |||
| HVZ-VA-SUPERSOFT-20/10-8×6 | 41400923 | Shifting adapter for shift-resistant stones 200×100 – 8×6 rows can be laid in 1/2 bond | 20 kg | 200×100 mm | 8×6 | ||
| HVZ-VA-SUPERSOFT-24/16-5×5 | 41400924 | Shifting Adapter for shift-resistant stones 240×160 – 5×5 rows laid in 1/3 bond | 16 kg | 240×160 mm | 5×5 | ||
| HVZ-VA-SUPERSOFT-20/10-10×4-90° | 41400951 | Shifting Adapter for shift-resistant stones 200×100 – 10×4-90° rows laid in 1/2 bond | 30 kg | 200×100 mm | 10×4 | ||
| HVZ-VA-SUPERSOFT-20/20-4×6 | 41401025 | Shifting Adapter for shift-resistant stones 200×200 (300×200) – 4×6 (4×4) rows laid in 1/2 (1/3) bond | 18 kg | 200×200 mm | 4×6 | ||
| HVZ-VA-180°-24/16-5×5 | 41400988 | Shifting adapter for 180° rotation with stones 240×160 – 5×5 rows can be laid in 1/3 bond | 13 kg | 240×160 mm | 5×5 | ||
| HVZ-VA-KA-20-25-30 | 41401211 | Shifting adapter | 2,8 kg | 200-250/300 mm | |||
| HVZ-PAR-80 | 41401019 | Roller position adapter | 0,4 kg | 80 mm | |||
| HVZ-PAR-100 | 41401010 | Roller position adapter | 0,5 kg | 100 mm | |||
| HVZ-PAR-120 | 41401020 | Roller position adapter | 0,5 kg | 120 mm | |||
| HVZ-PA-80 | 41400123 | Position adapter | 0,29 kg | 80 mm | |||
| HVZ-PA-110 | 41400121 | Position adapter | 0,34 kg | 110 mm | |||
| HVZ-PA-120 | 41400128 | Position adapter | 0,36 kg | 120 mm | |||
| HVZ-PA-130 | 41400129 | Position adapter | 0,37 kg | 130 mm | |||
| HVZ-PA-140 | 41400130 | Position adapter | 0,39 kg | 140 mm | |||
| HVZ-PA-150 | 41400131 | Position adapter | 0,40 kg | 150 mm | |||
| HVZ-PA-160 | 41400132 | Position adapter | 0,42 kg | 160 mm | |||
| C-Profiles | 34010046 | 50 x 30 x 860 mm (2 x 1 x 34 inch) (W x H x L) | 5,5 kg | ||||
| C-Profiles | 34010018 | 50 x 30 x 950 mm (2 x 1 x 38 inch) (W x H x L) | 6 kg | ||||
| FA adapter for rectangular bricks | 41401257 | Set of herringbone adapters with RE blade for HVZ-UNI-II/HVZ-PAVERTRON | 17 kg | ||||
| HVZ-PA-100 | 41400036 | Position adapter | 0,31 kg | 100 mm | |||
| Makita Li-Ion-18V/4Ah | 24200164 | Li-Ion-battery | |||||
| Height-adjustable support | 41401260 | long, with polyamide | 0,88 kg |
