Description

The Slanetrac Multi-Saw Trimmer is a heavy-duty SA1000 attachment designed for tractors, skid steers, and telehandlers. Cuts branches up to 80mm with precision and reliability.

Ideal for :

• Fruit Tree Pruning
  • Tropical Fruits – Custard Apple, Lychees, Mangoes, Macadamias, etc.
  • Citrus Trees – Oranges, Limes, Pomelos, etc.
  • Apple Trees
  • Olive Trees

• Hedge Trimming
• Nurseries – Trimming saplings and young plants
• Roadside Vegetation Management
• General Trimming – For trees with branches up to 80mm

Key Features of the Slanetrac Multi-Saw Trimmer:

• Hydraulic Angle Adjustment – Adjust cutting ahead from vertical to horizontal position
• Left -> Right Swivel – Easily swivel blade to opposite side of machine manually with one pin
• Telescopic Side Shift – 1000mm reach to side of machine
• Twin Hydraulics – Primary hydraulic circuit operates cutting head. Auxiliary hydraulic circuit operates cutting angle adjustment.
• Spring Breakaway – Protects cutting head from damage
• Robust – Steel construction and protected drive components
• Low Maintenance – Easily serviceable
• Available in 3 Cutting Widths:
  • 1,000 mm (3 x Ø 400 mm saw blades)
  • 1,400 mm (4 x Ø 400 mm saw blades)
  • 2,000 mm (6 x Ø 400 mm saw blades)
• Individually Replaceable Cutting Blades
• Cuts up to 80 mm Thickness – Precise and clean cut, ideal for healthy regrowth of plants, with minimal disruption to wildlife.
• Versatile – Includes Slanetrac “star-spline”, compatible with all Slanetrac attachments.
• Ready to Work – Supplied with hitching system, hoses and couplings to suit your machine.
• Neat finish – high cutting RPM

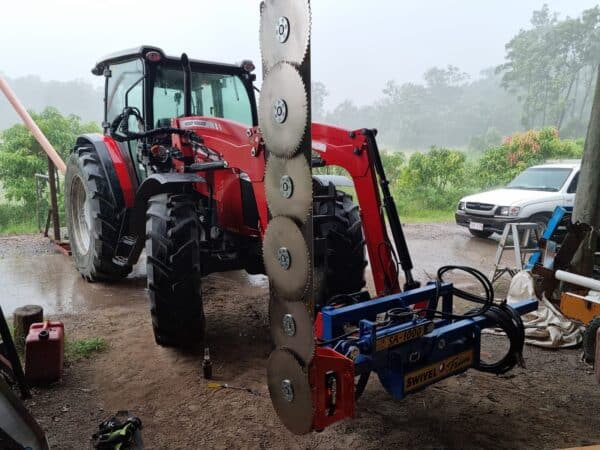

The Slanetrac SA1000 Swivel Trim mounting frame suits tractors, skid steers and telehandlers.

A tractor with an appropriate hydraulic flow is required for the system to work effectively. Two hydraulic lines are connected to the cutting head from the rear of the tractor. Two hydraulic lines from the front loader adjust the angle of the cutting head horizontal to vertical.

The SA1000 has a spring break away, which protects the cutting head from damage. It is extremely easy to operate because cutting is directly in-front of the operator, offering great visibility. With the cutting head in front, steering provides responsive control.

A front loader can cut neatly and evenly while reaching great heights. By removing one pin, it is simple to swivel the cutting head to the opposite side to clear brush from corners and beneath fences. With any other hedge cutters, this task is very challenging.
