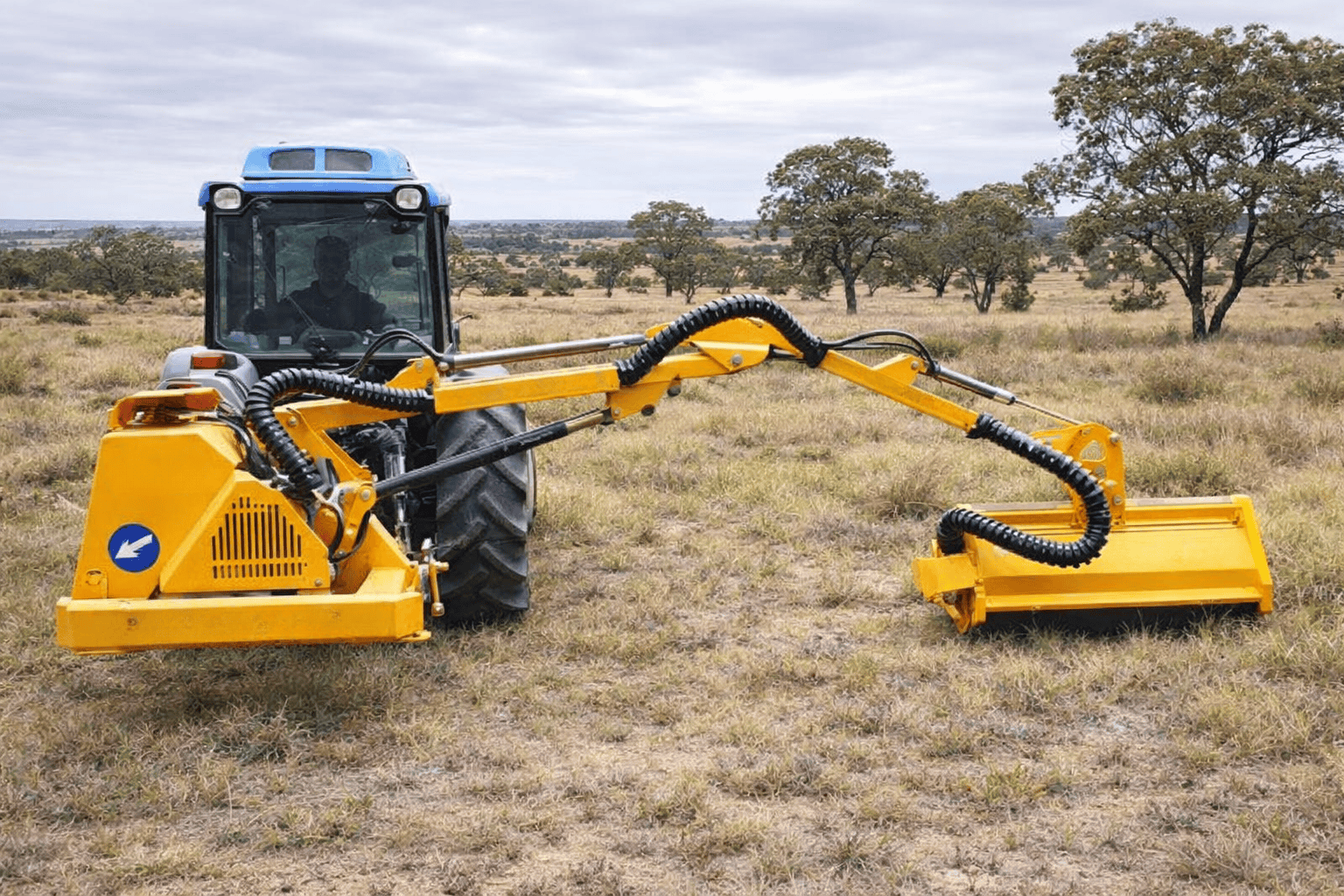

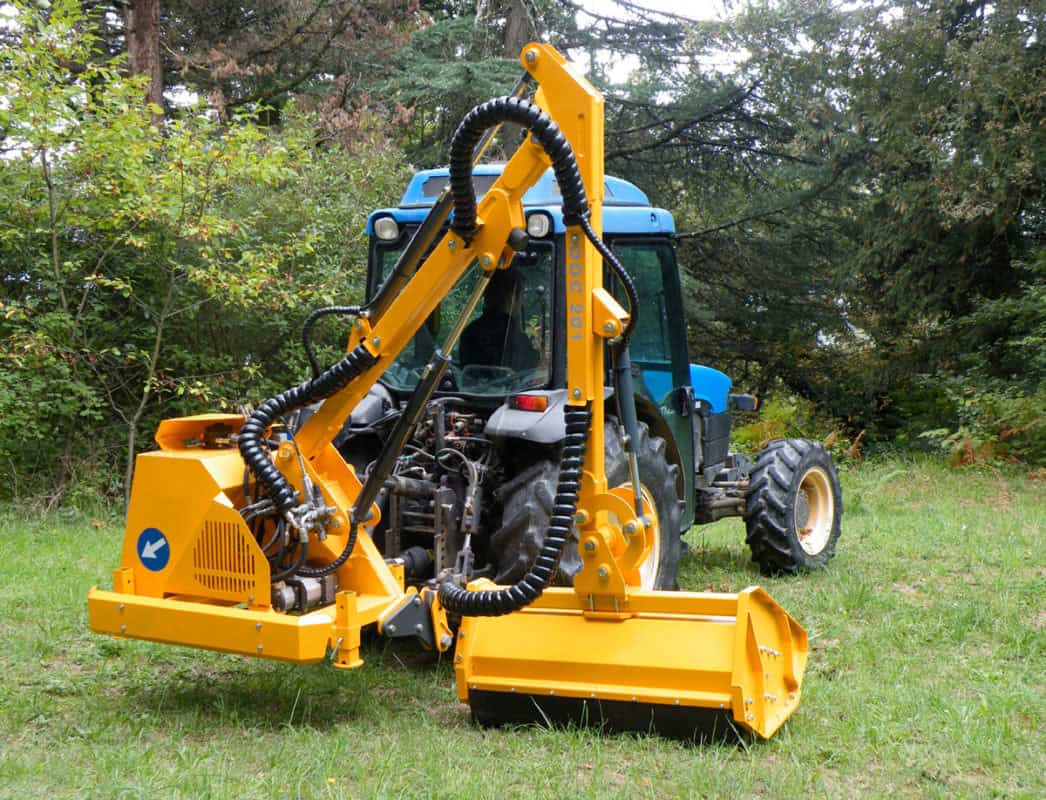

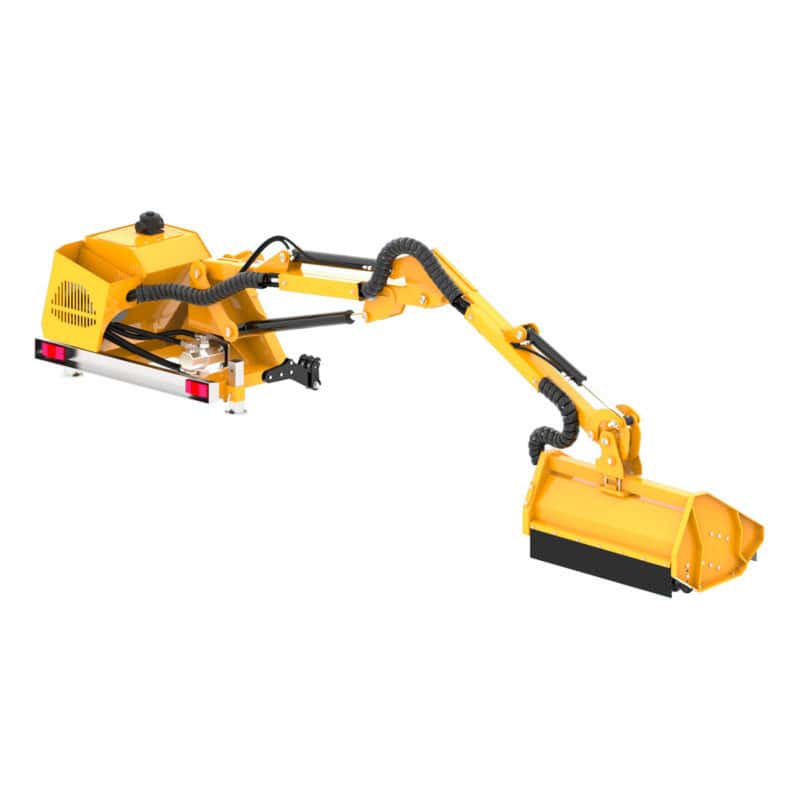

FEMAC DOC 201 Reach Mower for 50-70 hp Tractors
The FEMAC DOC 201 is a robust reach mower designed for 50–70 hp tractors that weigh 2,000–2,500 kg. Equipped with side shift and a mechanical release safety device, it provides safe, precise cutting for hedges, bushes, and roadside vegetation. Ideal for use on local roads, highways, and farmland, the DOC 201 delivers efficient, reliable performance for professional vegetation management.
Technical features and standard equipment
• Frame – 1st arm – 2nd arm in structural steel ST 52
• Three points hitch 2nd category
• Oil tank 100 l
• Double gear pump group 3+2 – 60+15 l/min
• Bidirectional hydraulic motor HP 42 power
• Distributor with remote controls with mm 3000 flexible cables
• Self levelling floating system
• Feeler roller recordable on 3 positions
• Head rotating angle 200°
• Helicoidal rotor with jointed cut blade KC1
• Rotor turning at 3000 rpm
• Fixing tie-rods
• Cardan joint
• Rear underrun protection with lights

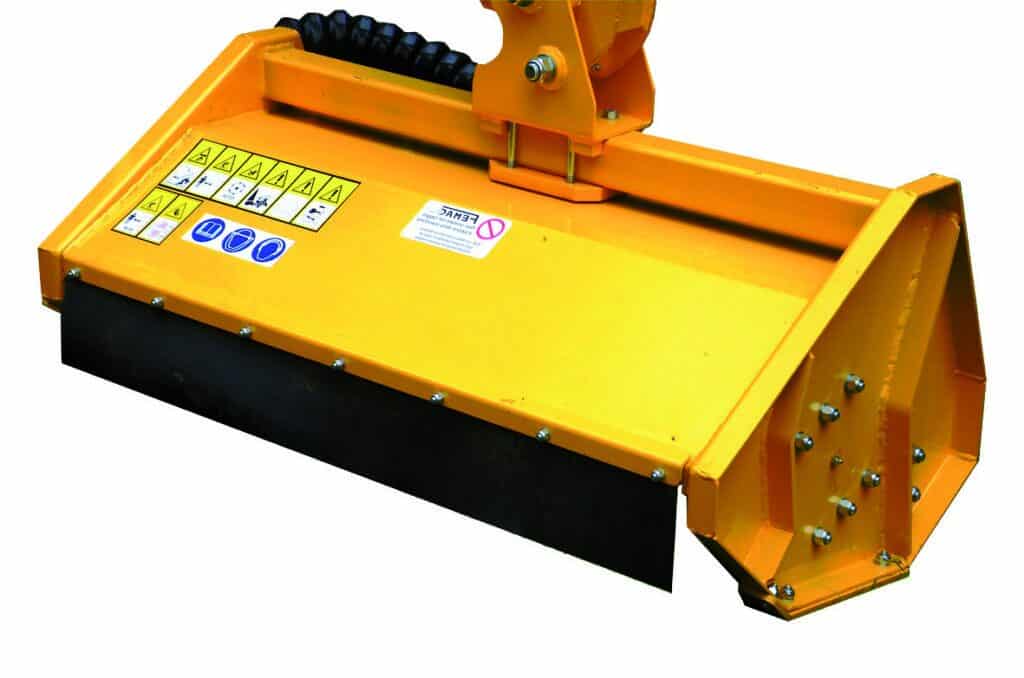

• Flail head 050 mm MODEL 20.2 TTD 105 with direct transmission
| Model | DOC 201 4.3 | DOC 201 5.0 |
| Extension (mm) | 4.3 | 5 |
| Telescopic Reach | 650 | 685 |
| Oil tank (l) | 100 | 100 |
| Head Model | 20.2 | 20.2 |
| Pump (l/min) | 60+15 | 60+15 |
| Hydraulic motor (hp) | 35 | 35 |
| Tractor power (hp) | 50/70 | 50/70 |
| 3-point linkage | Cat. 1-2 | Cat. 1-2 |
| Tractor weight (kgs) | 2 | 2.5 |
| Tractor width (m) | 1.8 | 2 |
| PTO (rpm) | 540 | 540 |
Accessories on request
• Heat exchanger
• Electric distributor with joystick
• Electric command of the rotor
• Proportional power-assisted with joystick
• Tie rods adapter Cat. 2
