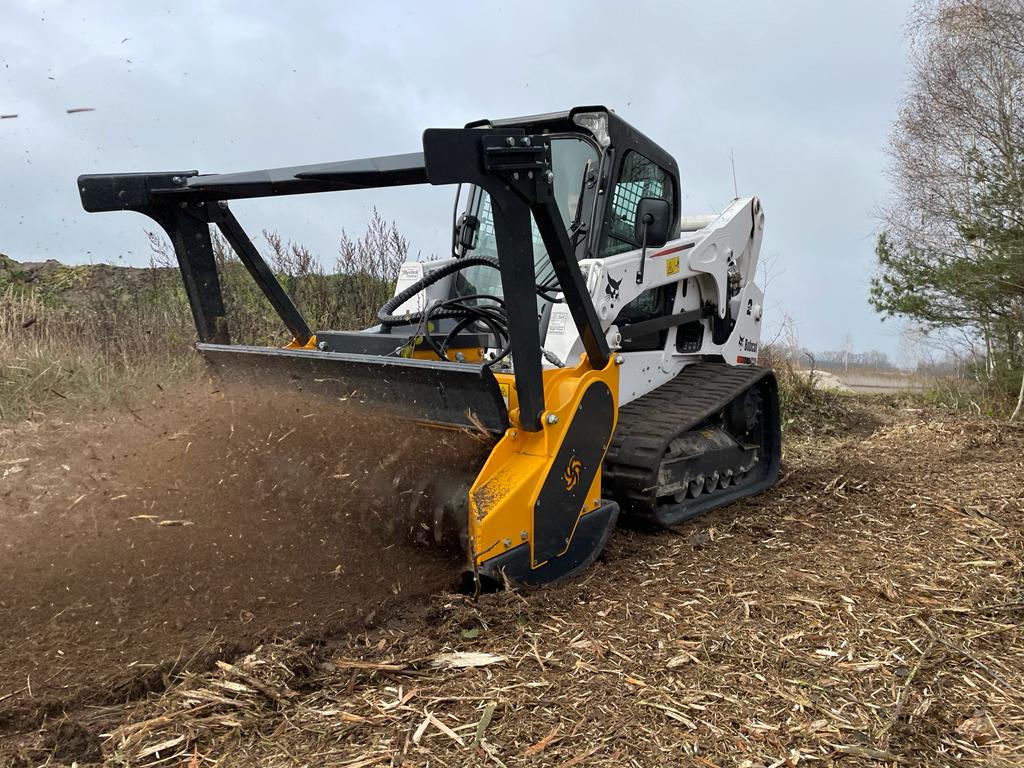

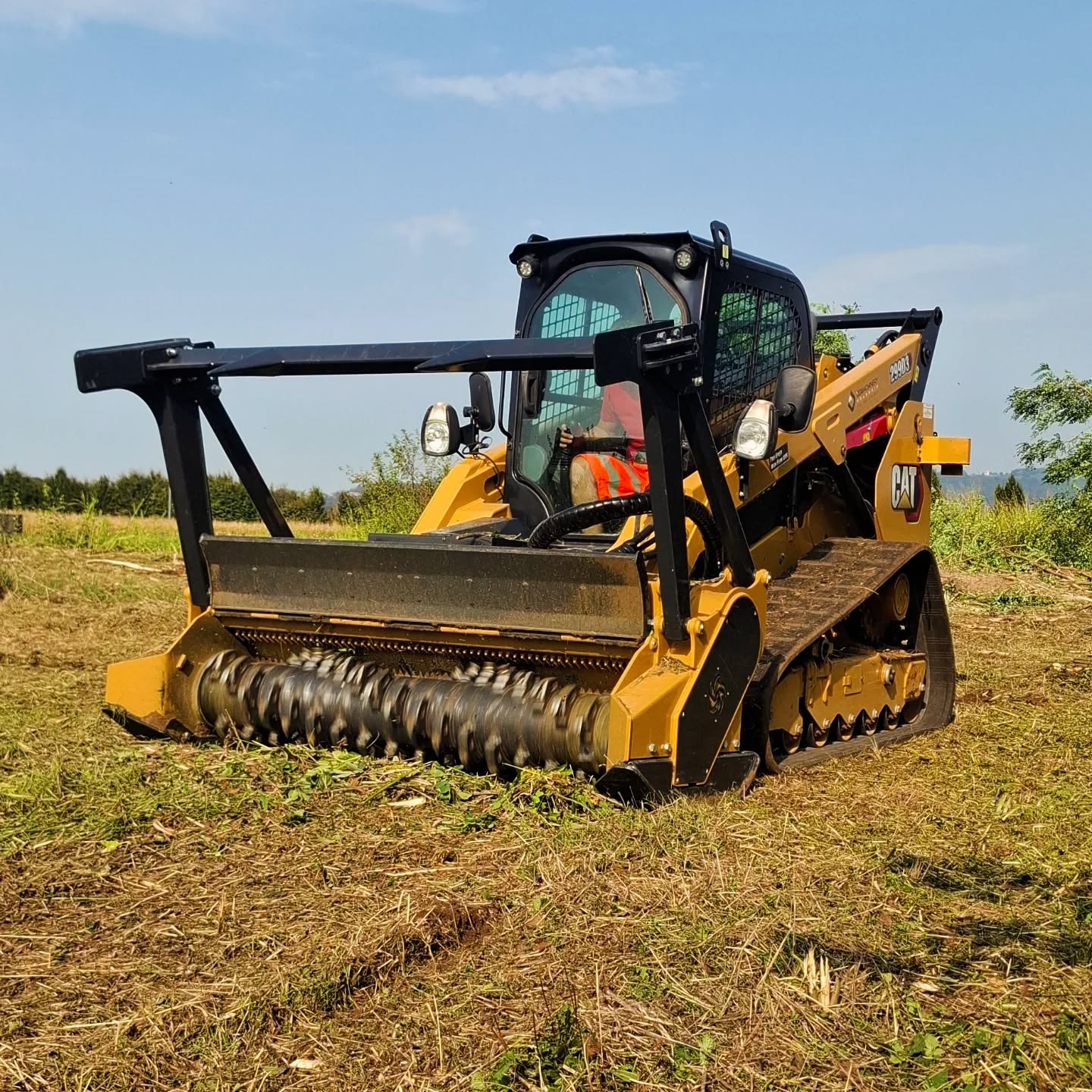

FEMAC S10 Hydraulic Mulcher for Skid Steer 70-120 hp

$45,300.00$49,250.00 ex GST

The FEMAC S10 hydraulic mulcher attachment is designed for use on 70-120 hp skid steer loaders. The FEMAC S10 skid steer mulcher attachment offers many benefits for vegetation management with a cutting width of up to Ø 30 cm.

Available in 1,600 and 1,800 mm size, a range of flails and 2 types of rotors.

Made in Italy by FEMAC SRL

Features:

  • Available cutting width 1,600 mm and 1,800 mm
  • Required oil flow 100L/min
  • Fully openable hydraulic hoods for greater cutting capacity.
  • Hammer teeth
  • Hitch, Hydraulic Hoses & Couplings included
  • Fixed universal hitch.
  • DF Rotor with fixed teeth in a widia or toughened blade.
  • Helicoidal rotor with 3 screws.
  • Counter-blades that have been forged and toughened.
  • Very durable hard wearing frame.
  • Funnel-shaped frame for higher cutting capacity.
  • Toothed high-performance belts transmission.
  • Internally reinforced double-case body with interspace.
  • Belts with protection cover.
  • Internal Rotor Labyrinth-shaped supports are used to protect bearings from contaminants.
  • High quality adjustable bearings.
  • Manometer for working pressure control.
  • Valves block complete with priority valve for adjusting oil flow, anti-shock valve (pressure relief valve), anti-cavitation.
  • Piston motor.
  • Dual row protection chains for greater protection.
  • According to EC directives, accident prevention chains provide protection.
  • Made in Italy
Model Skid Steers (hp) Cutting width (mm) Dimensions
LxAxH cm
Weight
kg
Displacement Oil
L/min
Pressure
bar (min-max)
Transmission Rotor Tools
S10 DF160 70-120 1600 200x100x160 1,285 45-60-80 100-130 180 200-350 1 (55 mm) Helical 42
S10 DF180 70-120 1800 220x100x160 1,420 45-60-80 100-130 180 200-350 1 (55 mm) Helical 54
