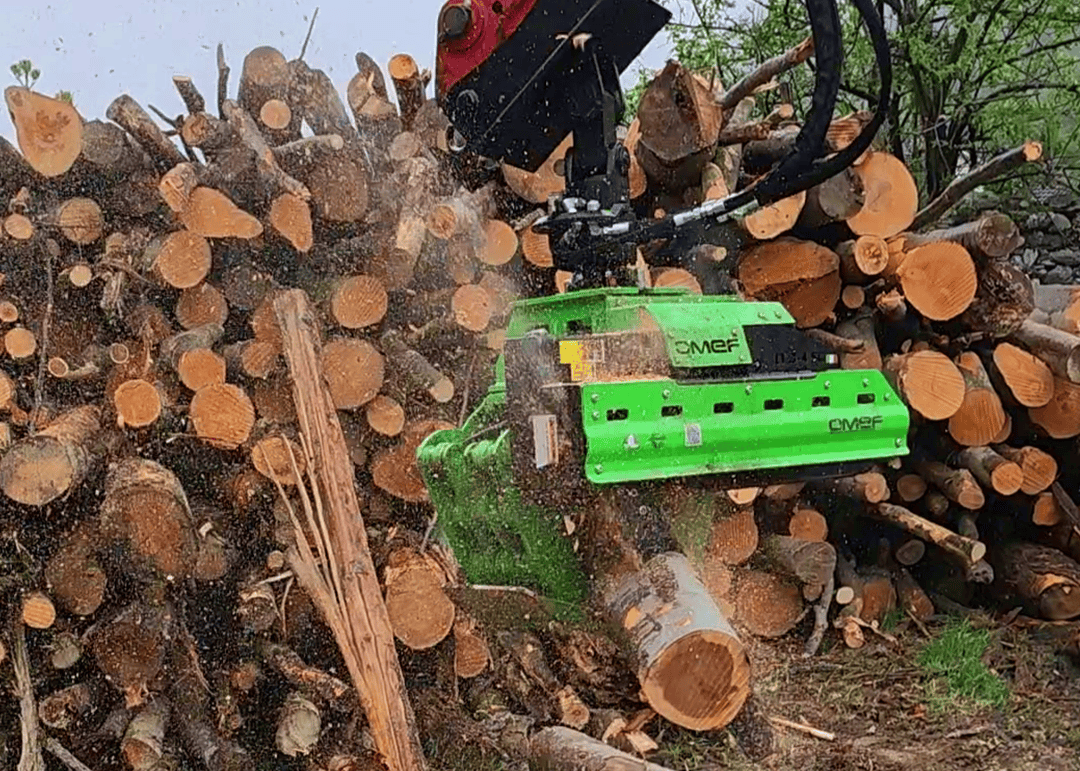

OMEF PTH900 Grapple Saw
The OMEF PTH900 grapple saw is the ultimate tool for efficiently sectioning and handling large logs. With a clamp opening of over 2 m and a double cylinder, it ensures maximum productivity and power. Built from durable, wear-resistant steel and equipped with a safety lock valve, this grapple saw guarantees reliability and safety. For smooth and safe operation, it also features automatic lubrication and a manual chain tensioner. Ideal for forestry and logging tasks, the OMEF PTH900 combines strength, safety, and ease of use to make log handling more efficient than ever before.
| Excavator class weight | 12 – 18 T |
| Attachment weight | 590 kg |
| Maximum trunk hold | 900 mm |
| Maximum workload | 5,000 kg |
| Max Opening | 2,070 mm |
| Oil pressure | 180 – 230 bar 2610 – 3336 psi (min/max) |
| Hydraulic flow | 40 – 160 l/min (min/max) |
| Saw Chain | 19 mm |
| Engine | 30cc piston motor |
| Control | 360° Rotator |
