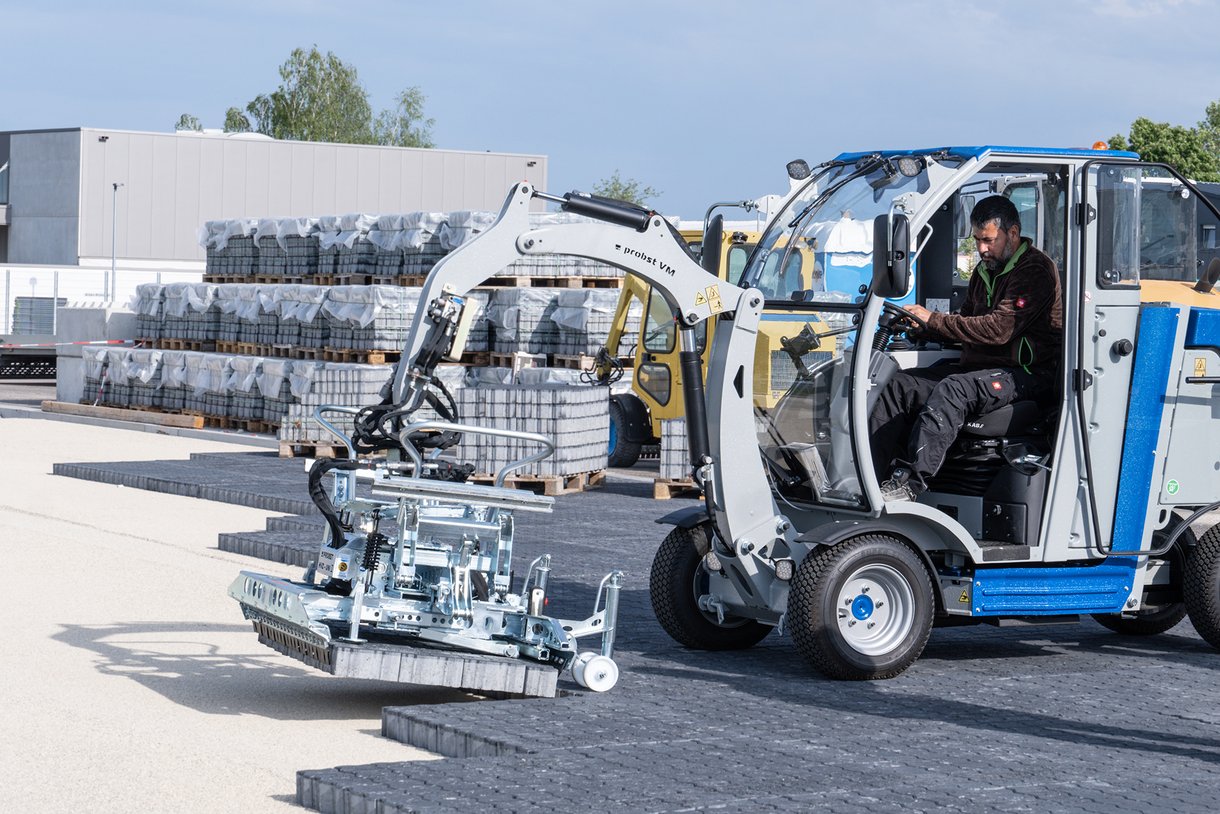

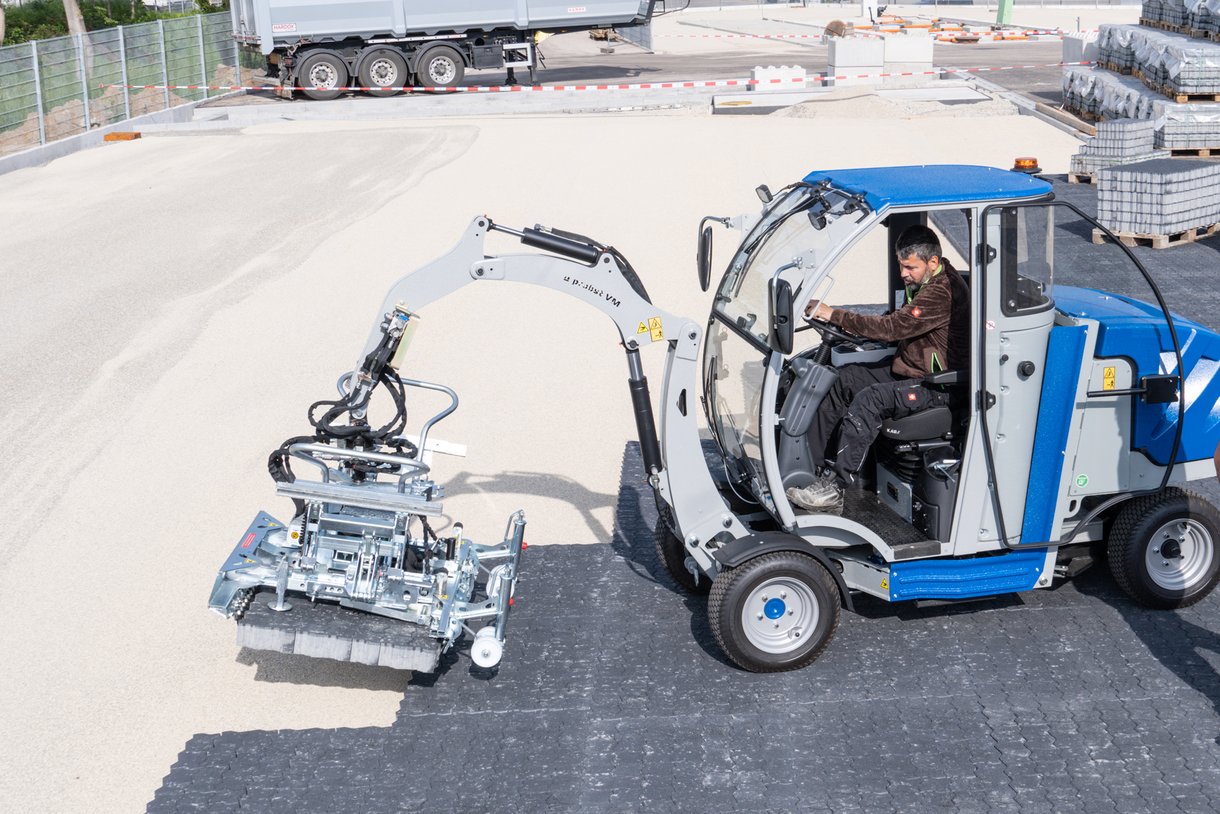

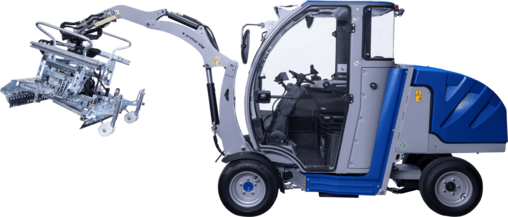

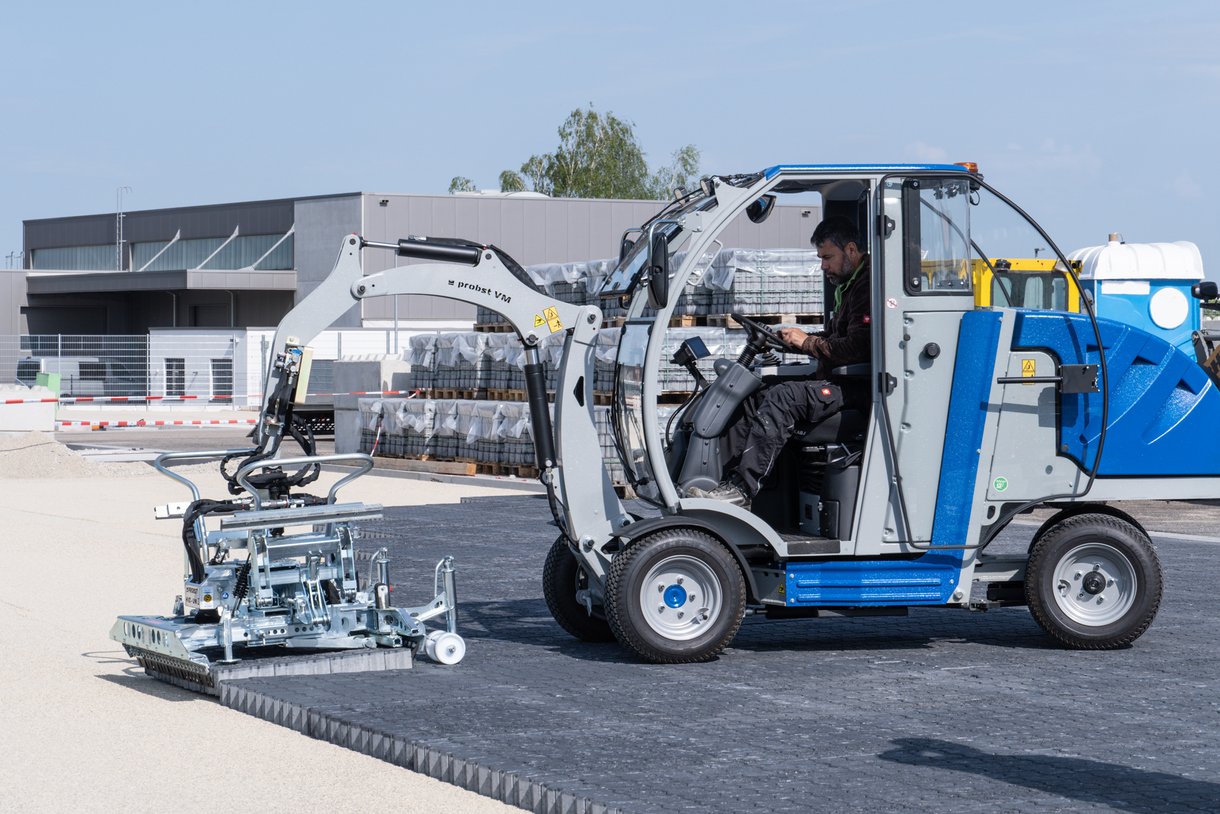

Probst VM-X-PAVERMAX Paver Installation Machine

The Probst VM-X-PAVERMAX is a purpose-built paver installation machine designed to make large-scale paving work faster, more precise and more comfortable. Combining excellent all-round visibility, impressive lifting capacity and highly manoeuvrable articulated steering, the VM-X-PAVERMAX gives operators the control and visibility they need to work efficiently in both open areas and confined construction sites.

360° Panoramic Visibility

• Full glazing provides an excellent view around the machine.
• Large front and side windows provide clear visibility of the paving area.
• Curved 180° panoramic rear window improves rearward visibility.
• Operators can maintain a clear view of the laying edge and machine extremities.
• Better visibility makes positioning easier and helps the operator work confidently around obstacles.

High Lifting Capacity

• Working Load Limit of up to 700 kg, depending on configuration.
• Designed to handle commercially available interlocking paver laying units.
• Strong lifting performance allows large sections of paving to be installed efficiently.
• The articulated boom provides increased reach while reducing unnecessary machine movements.

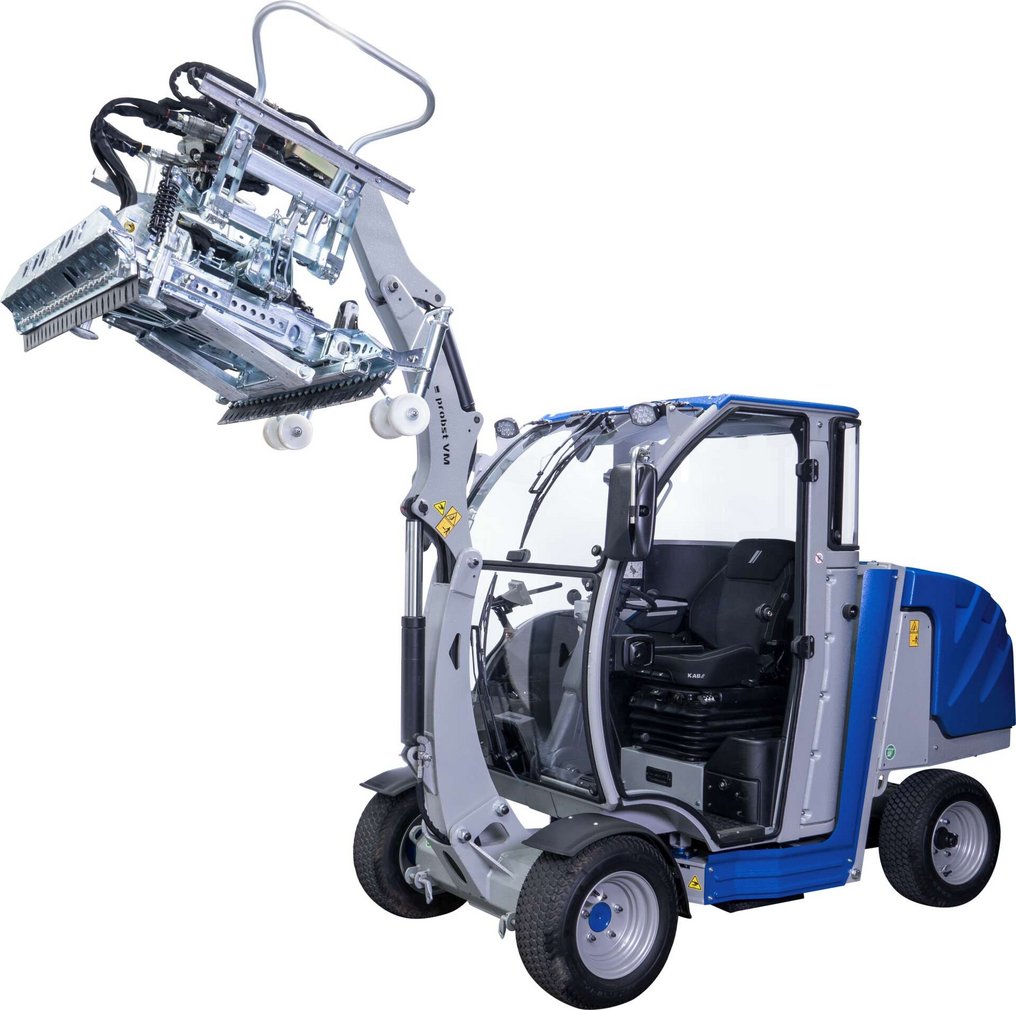

• Lifting height of up to 2,500 mm on the premium model allows the machine to pick up paver packs at considerable height.

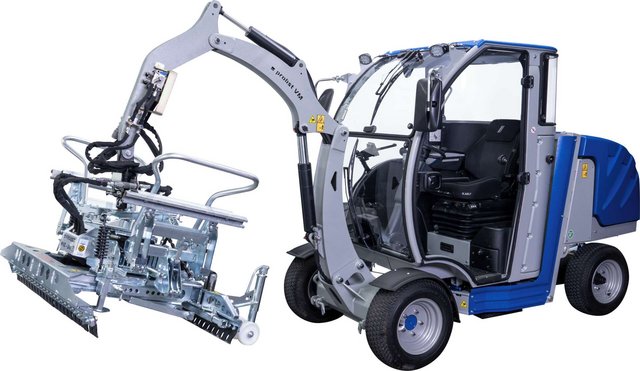

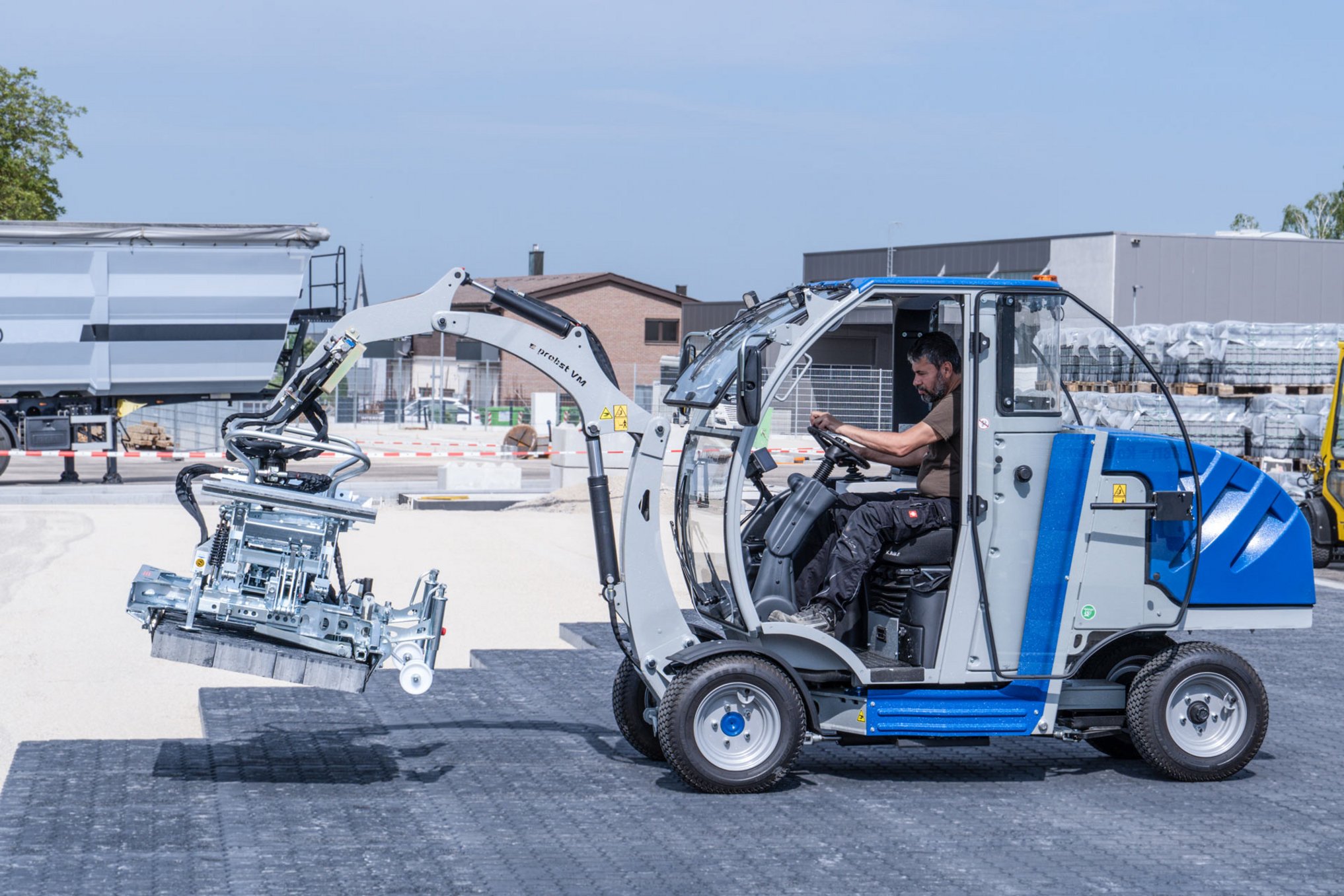

Two-Joint Articulated Boom

• Two-joint boom design provides excellent reach and flexibility.
• Allows the operator to position paving packs accurately.
• Reduces the amount of driving and repositioning required during laying.

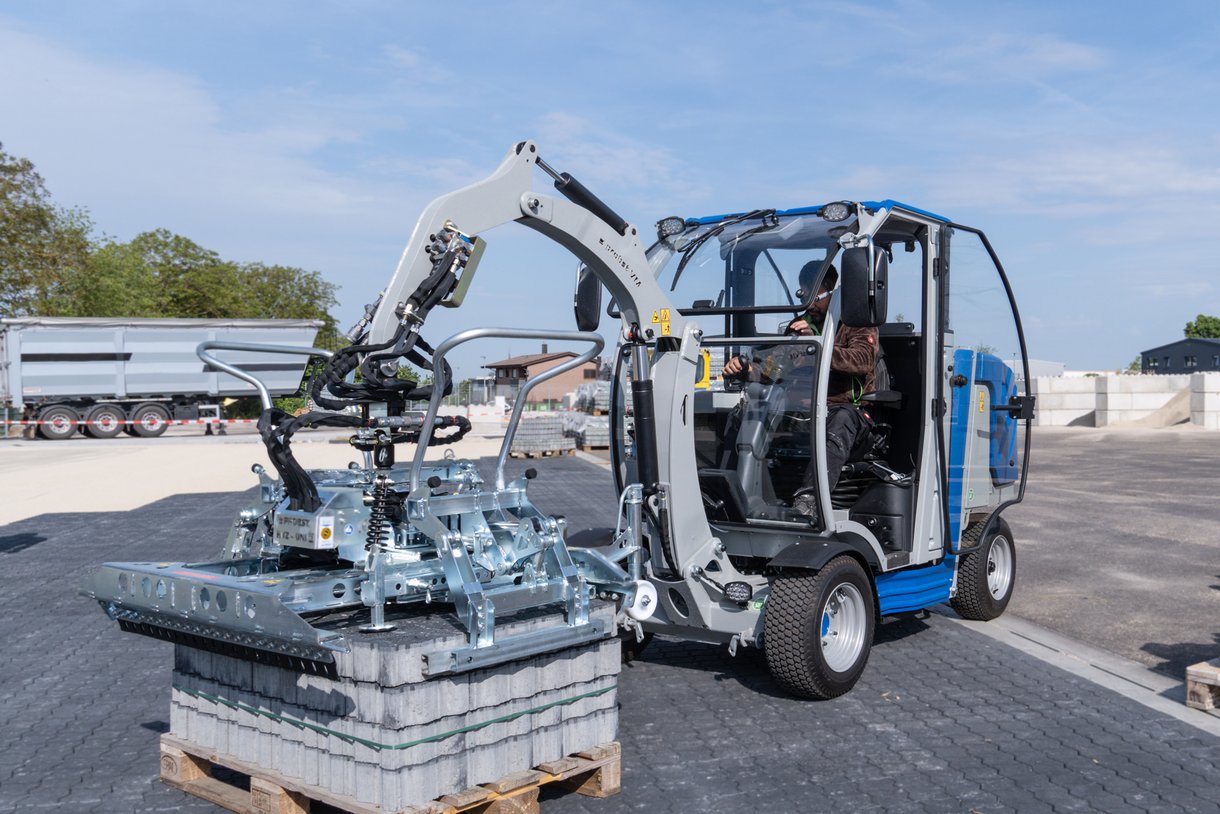

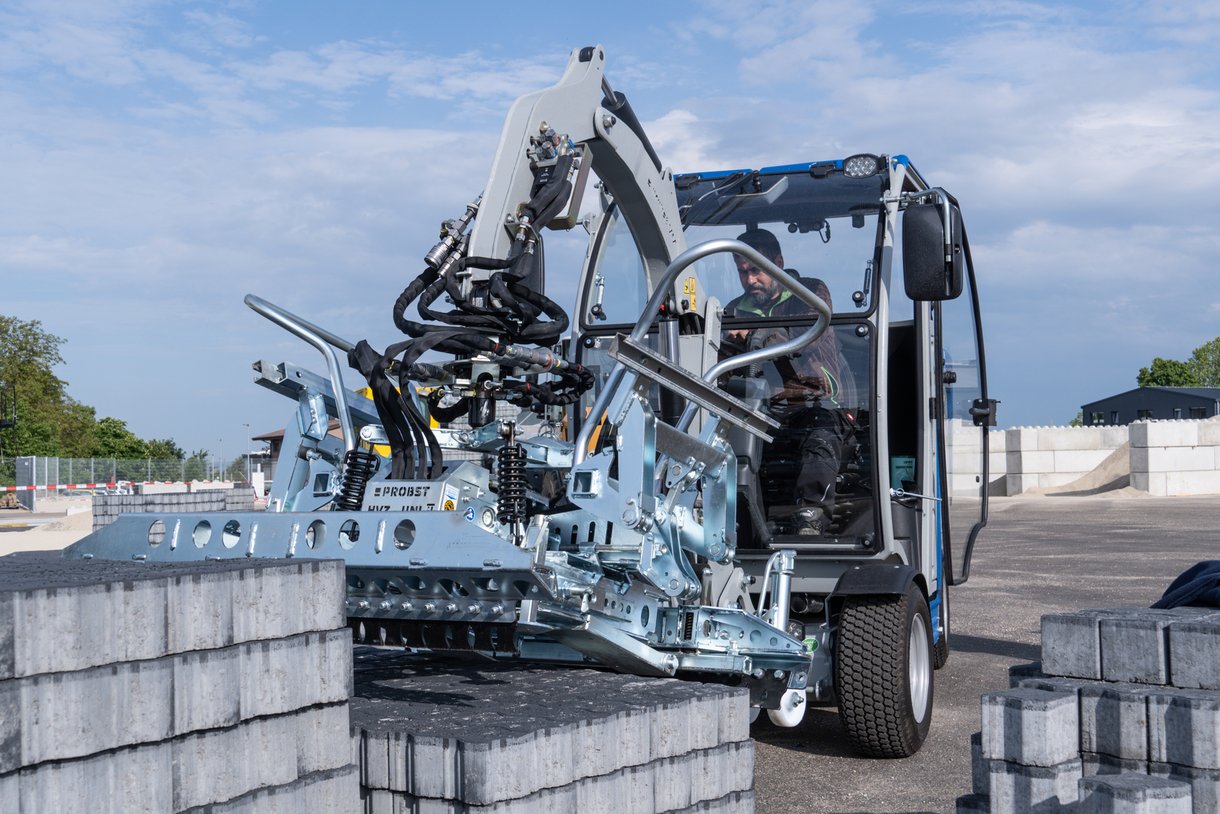

• Can pick up from two paver packages stacked on top of each other, with a grab height of up to 1,800 mm.
• Around 1,600 mm of swivelling range can be achieved from a stationary position through steering.

Excellent Manoeuvrability

• Double articulated steering provides precise control in confined areas.
• Compact 2.5 m turning radius allows the machine to work effectively on restricted sites.
• Sensitive pedal control makes acceleration and positioning smooth.
• Steering geometry is designed so the machine’s outer edges follow its movement, reducing protruding sections when manoeuvring around obstacles.
• Particularly well suited to narrow streets, residential developments and inner-city construction sites.

Smooth & Comfortable Operation

• Optimised engine mounting reduces vibration and operating noise.
• Revised drive software provides smoother acceleration and starting.
• Adjusted hydraulic pump characteristics improve driving performance.
• Spacious, decoupled operator cabin helps reduce vibration transferred to the operator.
• Ergonomically positioned controls, adjustable steering wheel and adjustable seat make it easier to maintain a comfortable working position.

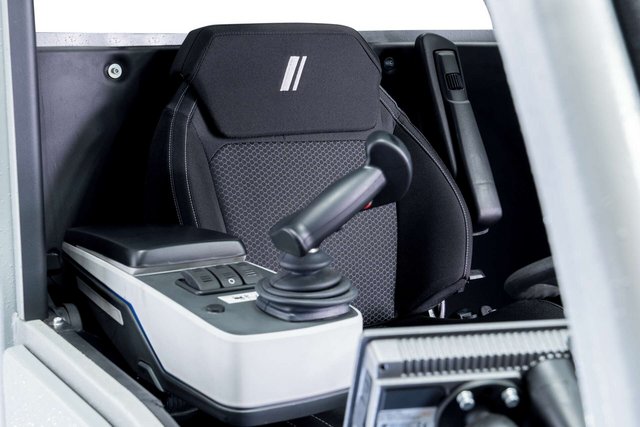

Operator-Focused Controls

• Probst’s established control system provides intuitive operation.
• Updated joystick and foot-pedal controls give the operator precise control over machine movement and paving operations.
• Premium models offer three selectable driving profiles:
  • Two paving modes with different response characteristics.
  • A dedicated travel mode for driving between work areas.

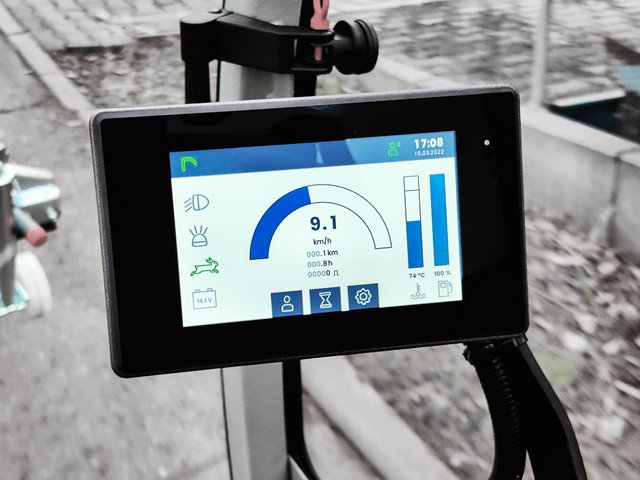

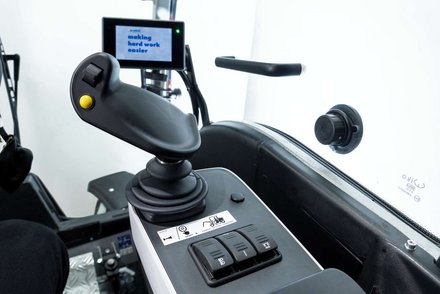

• The premium model features a 5-inch touchscreen, while the standard model uses a 2.4-inch display.
• Important machine information is displayed in real time, including operating data and coolant temperature.

Automatic Functions

• Premium configurations can be equipped with automatic programs for repetitive paving operations.
• Automatic functions reduce the amount of repetitive operator input required.
• Helps maintain consistent operation throughout long paving projects.
• Allows the operator to concentrate more closely on positioning and paving accuracy.

Stability & Safety

• Low centre of gravity and favourable load distribution provide excellent machine stability.
• Up to 700 kg working load limit on standard, comfort and premium models.
• Automatic parking brake engages when the operator leaves the seat.
• Parking brake automatically releases when the operator returns to the seat.
• Stable handling is particularly important when carrying heavy paving elements and manoeuvring in confined areas.

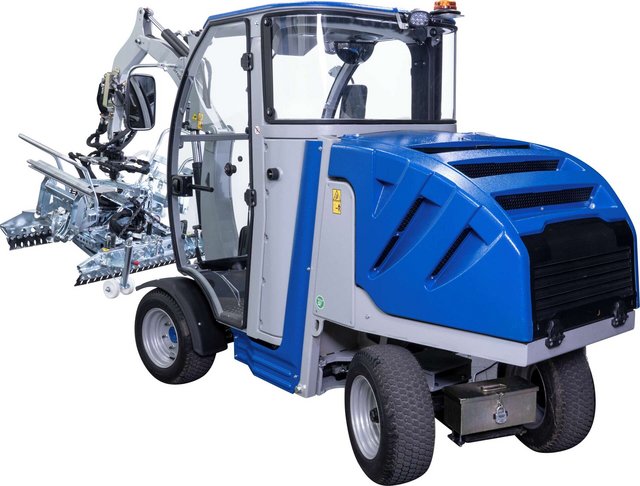

Powerful & Efficient Diesel Engine

• Powered by an 18.5 kW / 25 hp four-cylinder Kubota diesel engine on the premium and standard models.
• Provides strong power reserves for demanding paving applications.
• Hydraulic system delivers 26 L/min at 200 bar.
• Maximum driving speed of up to 16 km/h allows efficient movement between paving areas.
• Engine complies with relevant EU Stage V and US Tier IV Final emissions requirements.

Built for Long Working Days

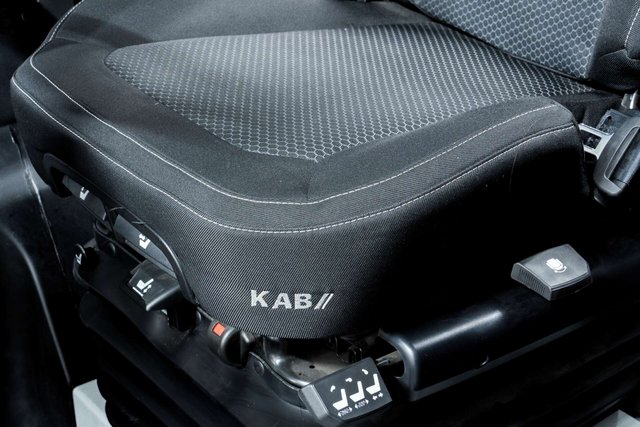

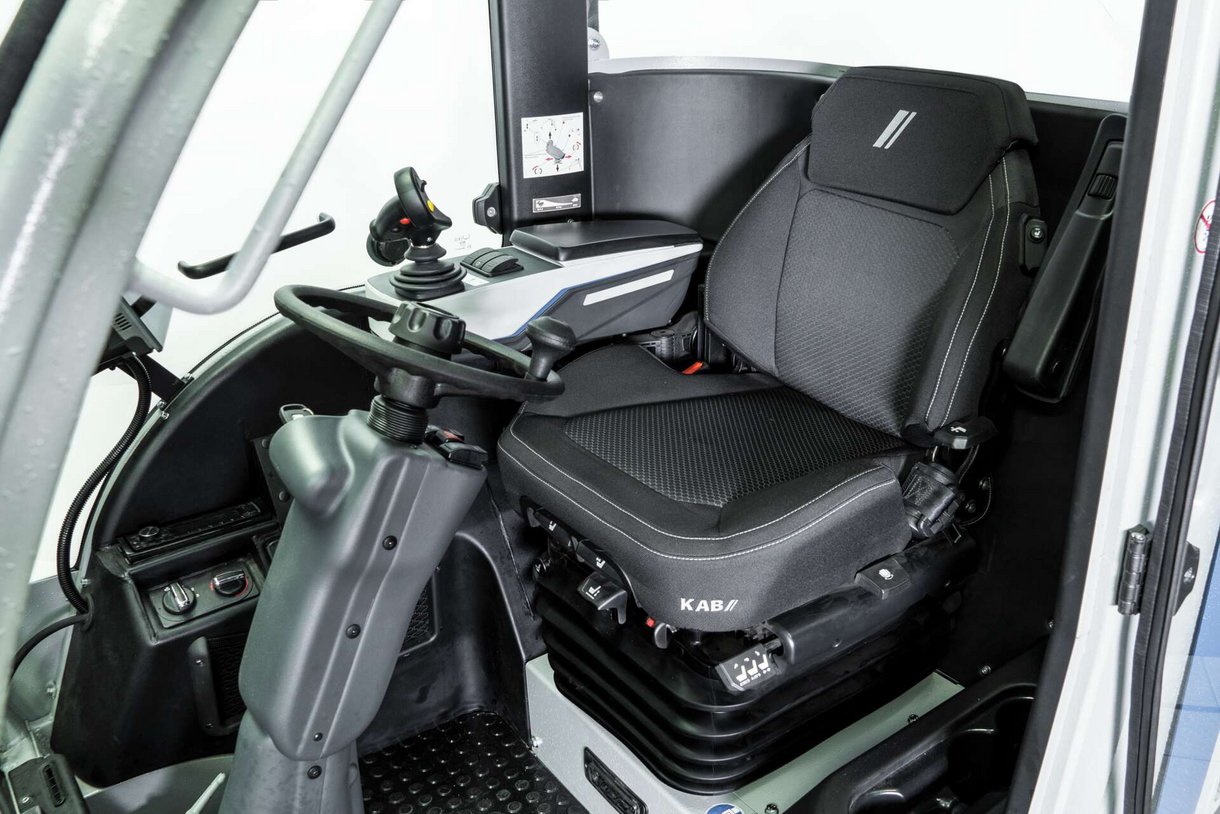

• Premium comfort seat includes air suspension, seat heating and longitudinal damping.
• Optional climate-controlled seat with active ventilation is available.
• Wide-volume tyres contribute to a smoother ride over uneven surfaces.
• Decoupled cabin helps isolate the operator from machine vibration.
• Optional sound system with DAB+, Bluetooth, USB and speakers adds further comfort for extended working periods.

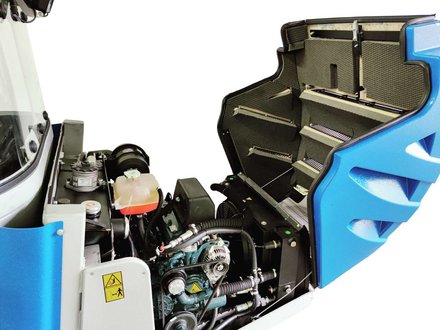

Easy Maintenance

• Service-relevant components are readily accessible.
• Routine maintenance can be carried out without extensive removal of surrounding components.
• Premium models include diagnostic functionality to help identify faults.
• Diagnostic information can assist technicians and Probst support when troubleshooting.
• Designed to minimise downtime and simplify day-to-day servicing.

Configurable for Different Applications

The VM-X-PAVERMAX is available in different equipment configurations, allowing contractors to select the specification that best suits their paving requirements.

Standard

• 18.5 kW diesel engine
• 650 kg working load limit
• 420 kg maximum paver layer
• 2,250 mm lifting height
• Mechanical suspension seat
• 2.4-inch display

Premium

• 18.5 kW diesel engine
• 700 kg working load limit
• 470 kg maximum paver layer
• 2,500 mm lifting height
• Articulated boom
• Air-suspended comfort seat
• Heated seat
• 5-inch touchscreen
• Automatic operating programs
• Additional comfort and productivity options

Optional Equipment

A range of accessories can further adapt the VM-X-PAVERMAX to specific working requirements, including:

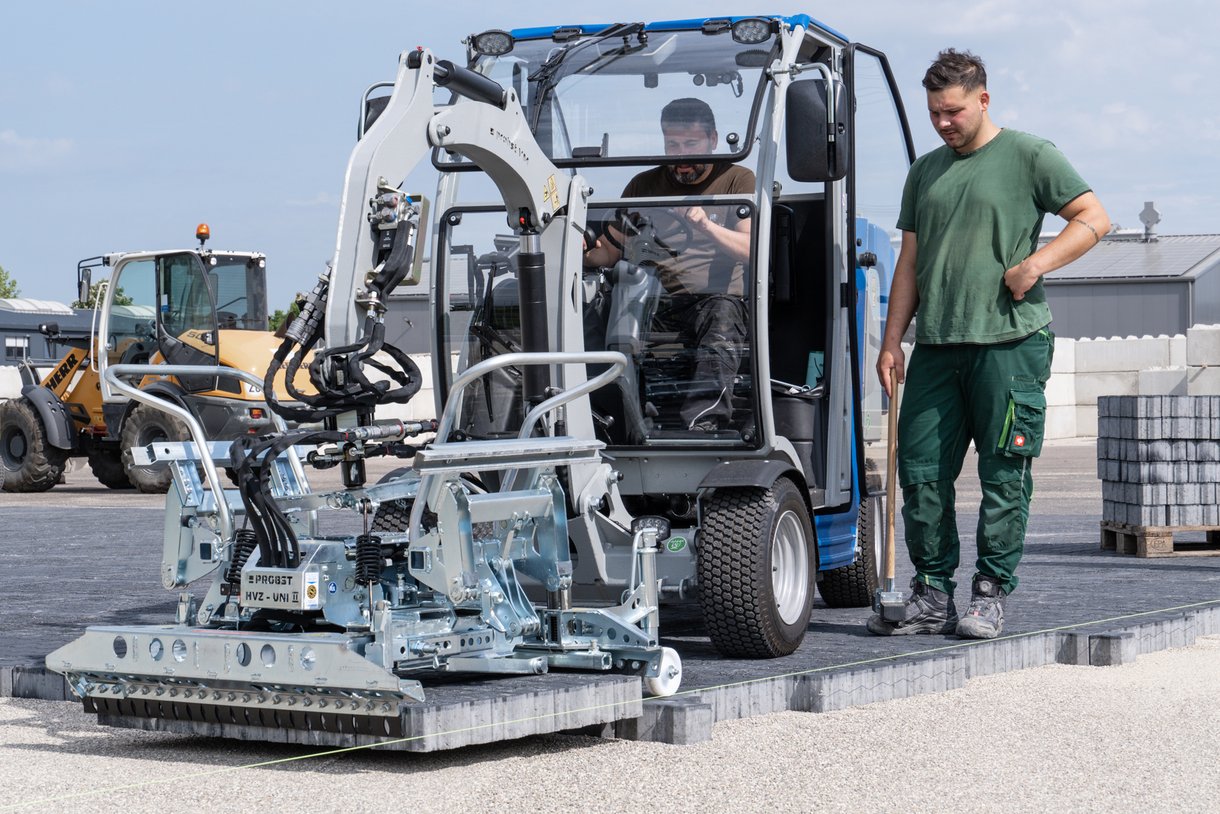

• HVZ-UNI-II-SPEED hydraulic paving clamp
• HVZ-PAVERTRON paving clamp
• LED lighting packages
• LED turning lights
• Exterior mirrors
• Reversing warning system
• Crane loading lugs
• Second foot pedal
• DAB+ Bluetooth sound system
• Mobile phone holder
• Special paint options
• Additional comfort equipment

The Result

The VM-X-PAVERMAX combines high lifting capacity, excellent visibility, precise manoeuvrability and operator comfort in one purpose-built paving machine. Its articulated design and advanced control systems help reduce unnecessary machine movements, while the spacious cabin and excellent visibility make long paving days more comfortable for the operator.

For contractors looking to improve productivity across large paving projects, the VM-X-PAVERMAX provides a dedicated solution for transporting, positioning and installing paving elements with greater efficiency and control.
