Slanetrac SA1000 Swivel Trim Hedge Cutter Bar for Tractors

Ideal for:

  • Hedge Trimming
    • Fine Hedge Plants, Such As: Leightons Green, Ficus, Murraya, Juniper, Buxus (Boxwood), etc.
    • Coarse Hedge Plants, Such As: Lily Pily, Hibiscus, Holly, Privet, Hibiscus, etc.
    • Pine Tree Hedges
    • Conifer Hedges
  • Fruit Tree Pruning
    • Tropical Fruits, Such As: Custard Apple, Lychees, Mangoes, Macadamias, etc.
    • Citrus Trees, Such As: Oranges, Limes, Pomelos, etc.
    • Apple Trees
    • Olive Trees
  • Nurseries – Trimming saplings and young plants

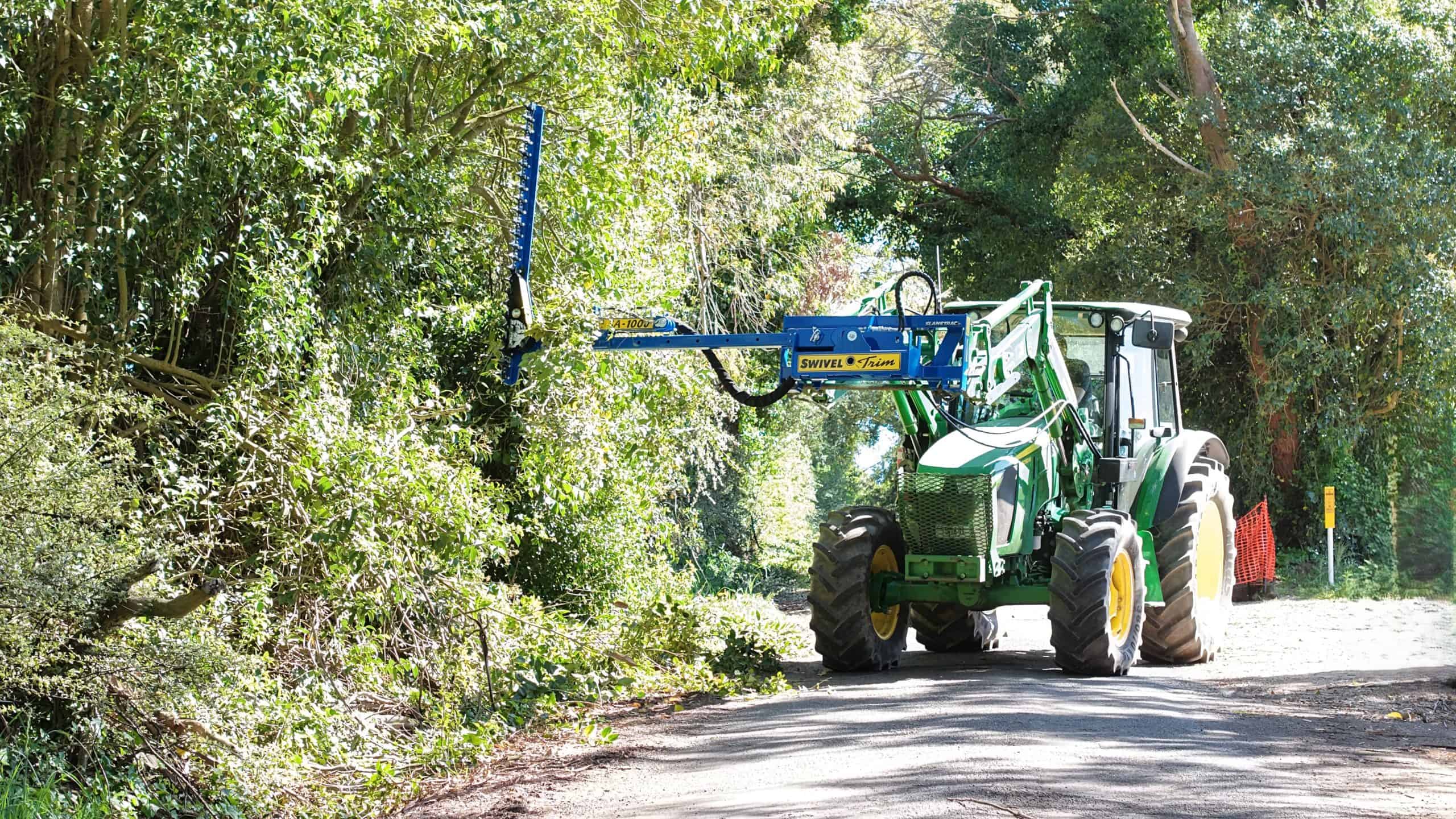

  • Roadside Vegetation Management
  • General Trimming – For trees with branches up to 40mm

Key Features:

  • Hydraulic Angle Adjustment – Adjust cutting head from vertical to horizontal position
  • Left -> Right Swivel – Easily swivel blade to opposite side of machine manually with one pin
  • Twin Hydraulics – Primary hydraulic circuit operates cutting head. Auxiliary hydraulic circuit operates cutting angle adjustment.
  • Spring Breakaway – Protects cutting head from damage
  • Robust – Steel construction and protected drive components
  • Low Maintenance – Easily serviceable
  • 1800mm Cutting Width – Also available in 1500mm, 2500mm and 3000mm.
  • Cuts up to 40 mm Thickness – Precise and clean cut, ideal for healthy regrowth of plants, with minimal disruption to wildlife.
  • Versatile – Includes Slanetrac “star-spline”, compatible with all Slanetrac attachments.
  • Ready to Work – Supplied with hitching system, hoses and couplings to suit your machine.

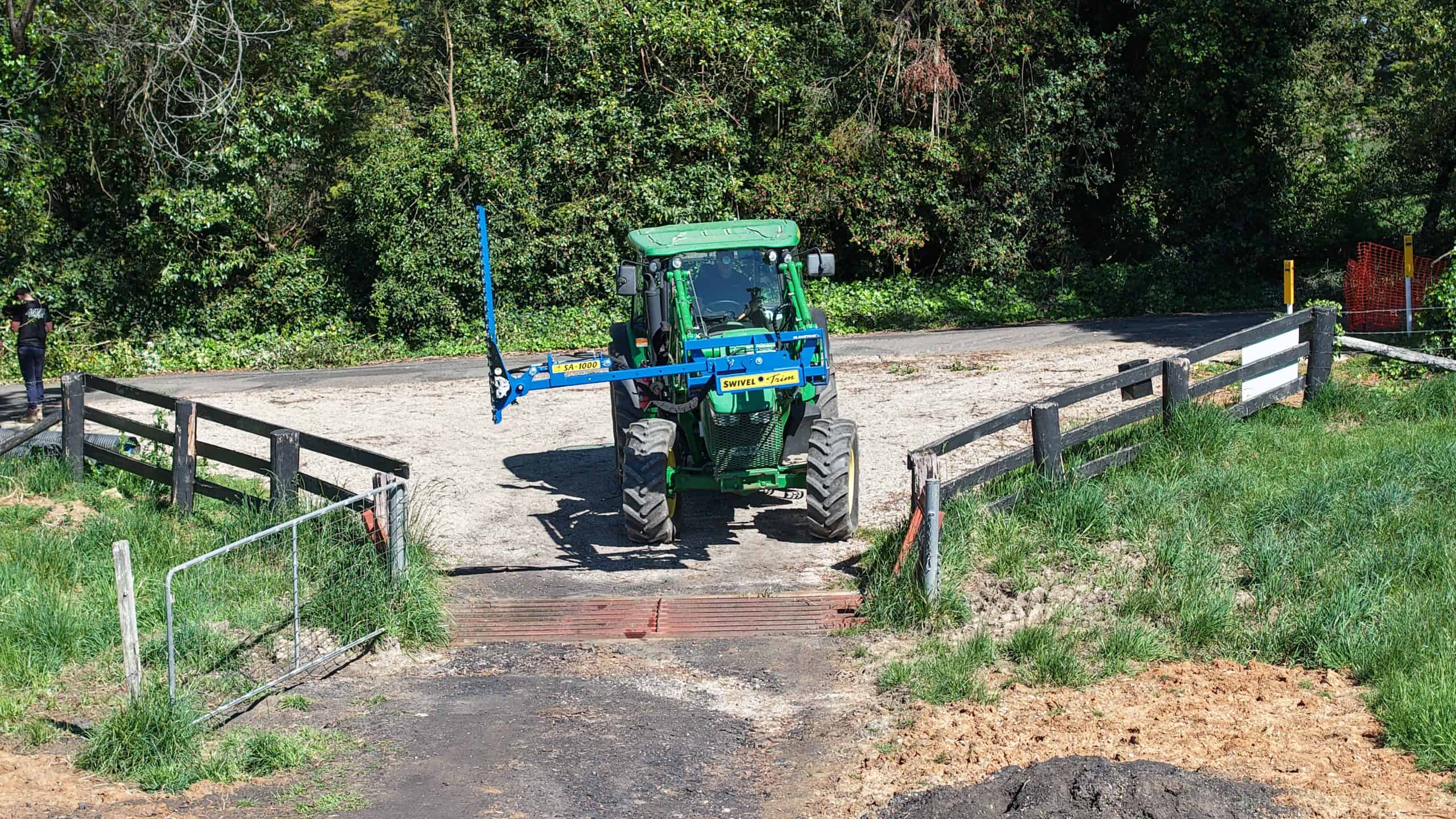

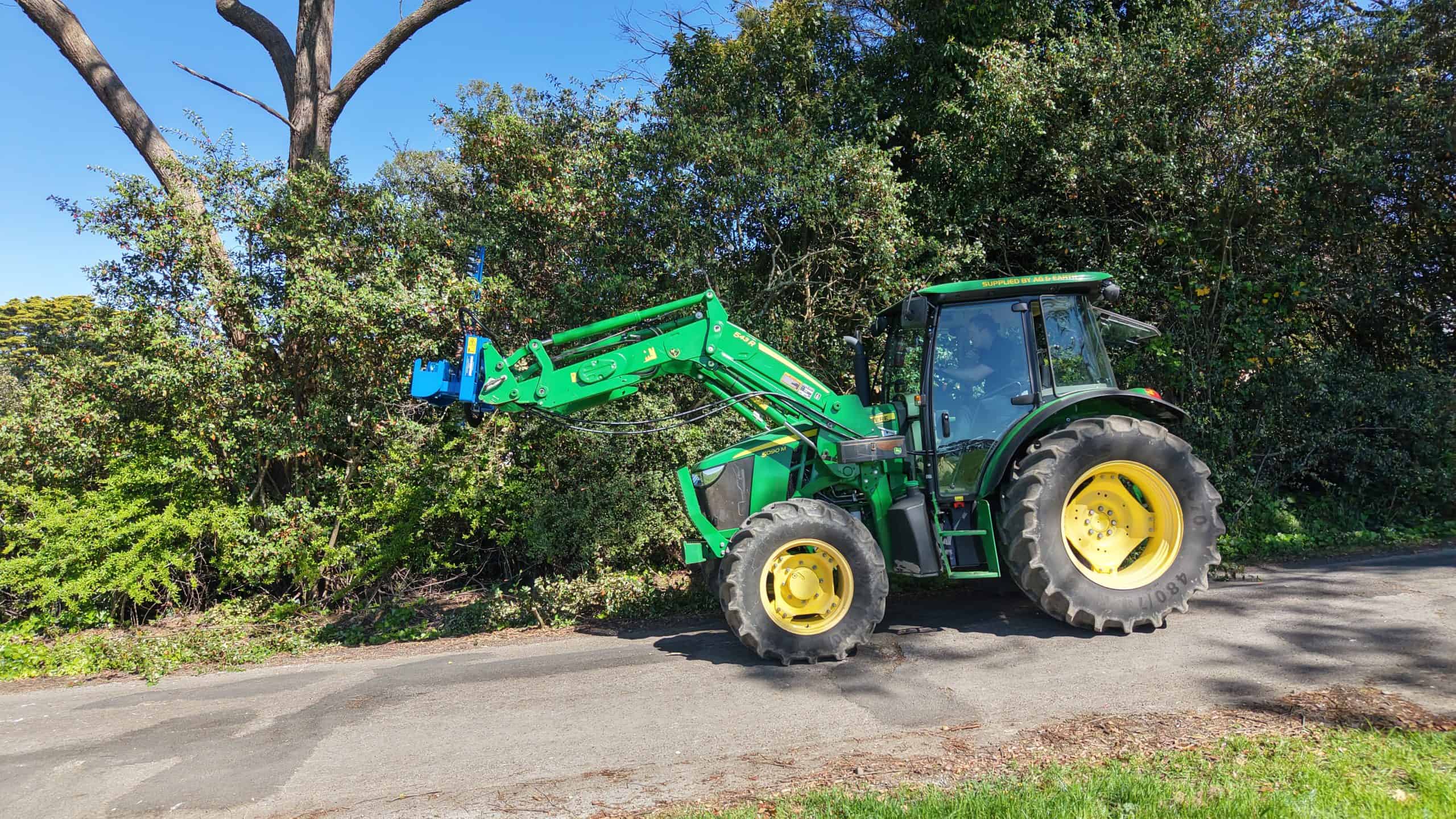

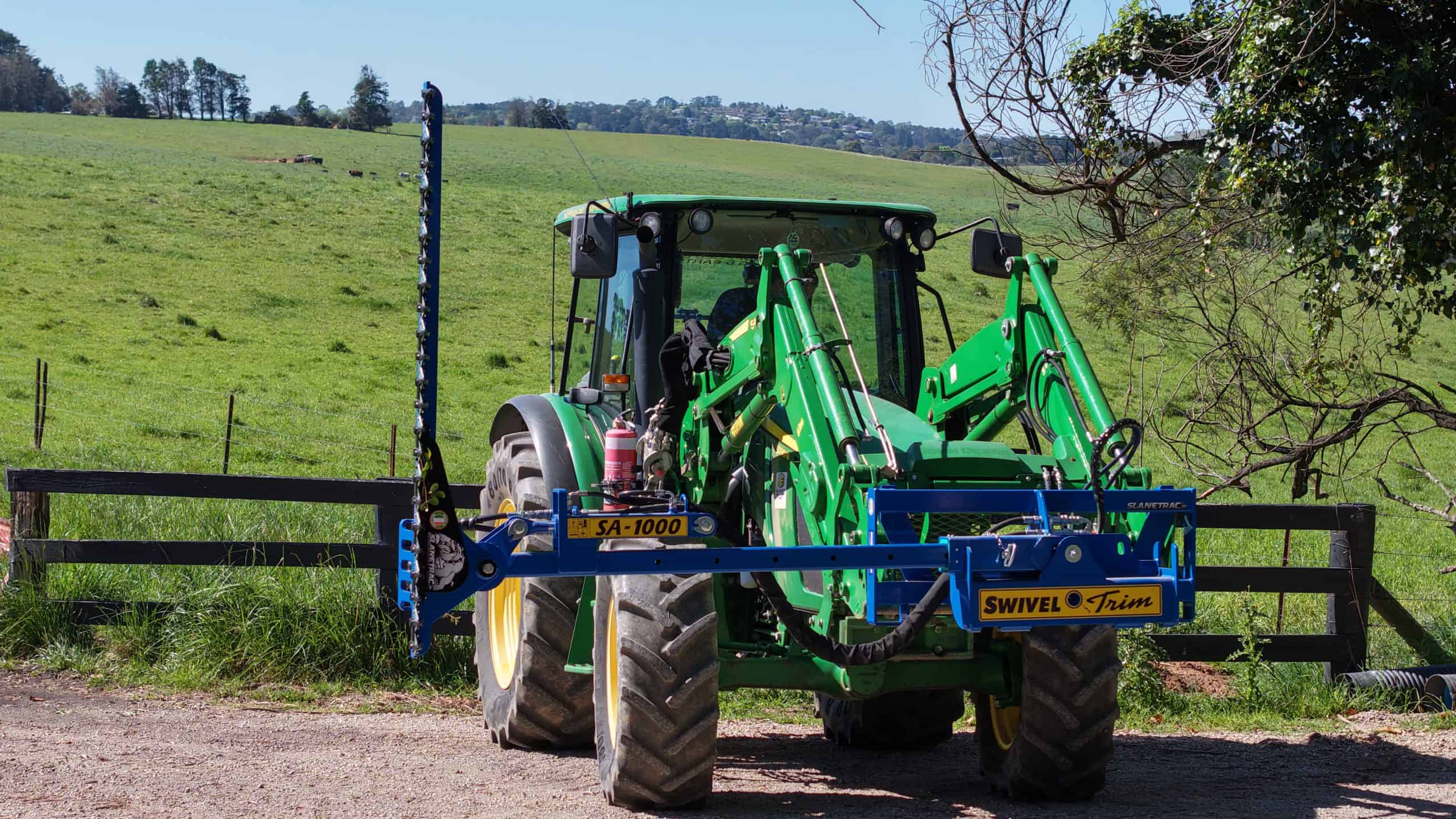

The Slanetrac SA1000 Swivel Trim is a mounting frame designed to suit tractors, skid steers and telehandlers. It comes standard with the HC180 Cutter Bar (also known as a “Sickle Bar”).

The standard cutting head features reciprocating blades, which produce a clean and precise cut, ideal for trimming hedges and fruit trees. The blades are sharpened and have guiding steel fingers which direct branches into the cutting area, allowing the operator to achieve a neat finish with ease. This attachment is able to cut up to 40mm thick branches.

A tractor with an appropriate hydraulic flow is required for the system to work effectively. Two hydraulic lines are connected to the cutting head from the rear of the tractor. Two hydraulic lines from the front loader adjust the angle of the cutting head horizontal to vertical.

The SA1000 has a spring break away, which protects the cutting head from damage. It is extremely easy to operate because cutting is directly in-front of the operator, offering great visibility. With the cutting head in front, steering provides responsive control.

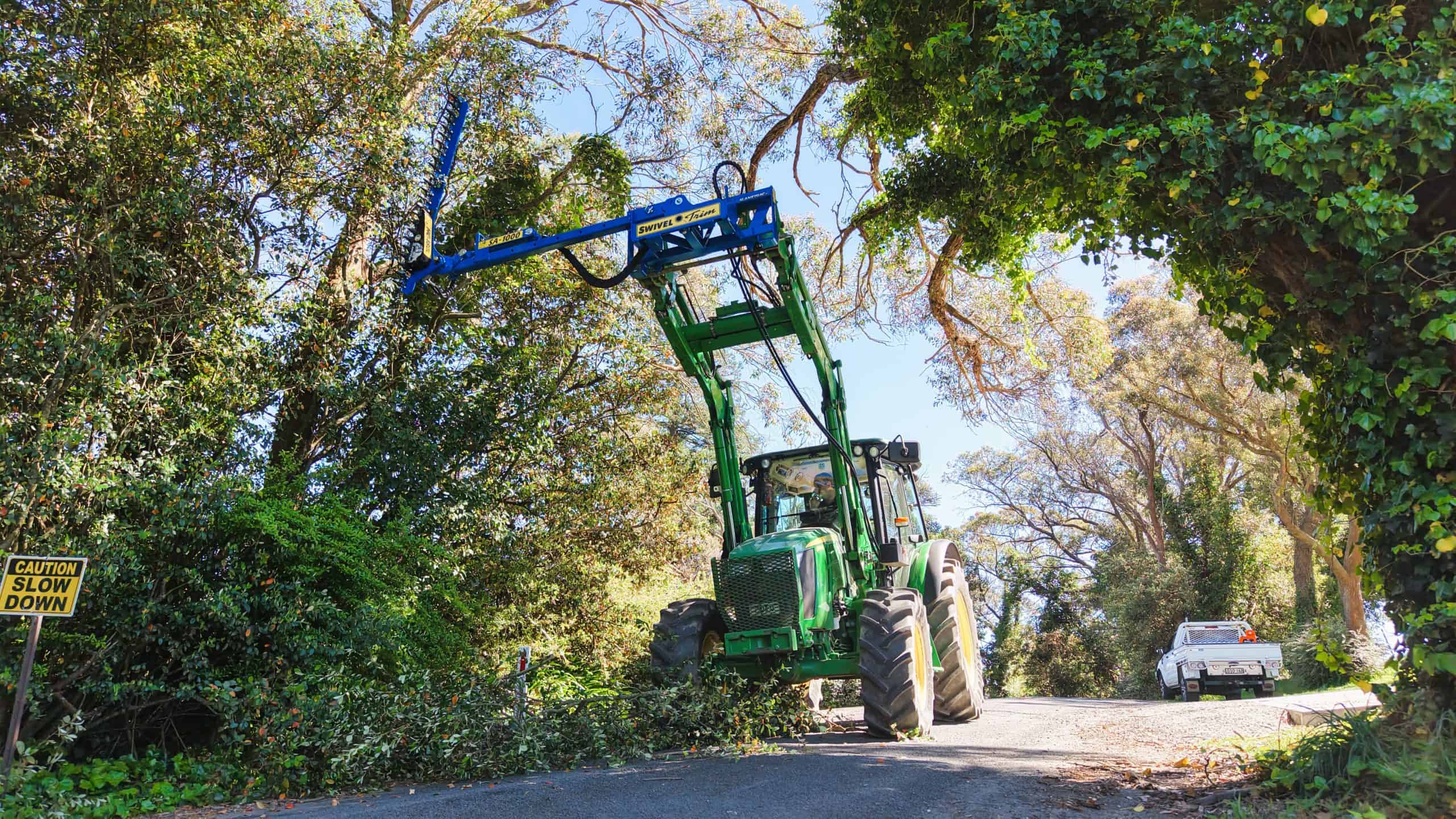

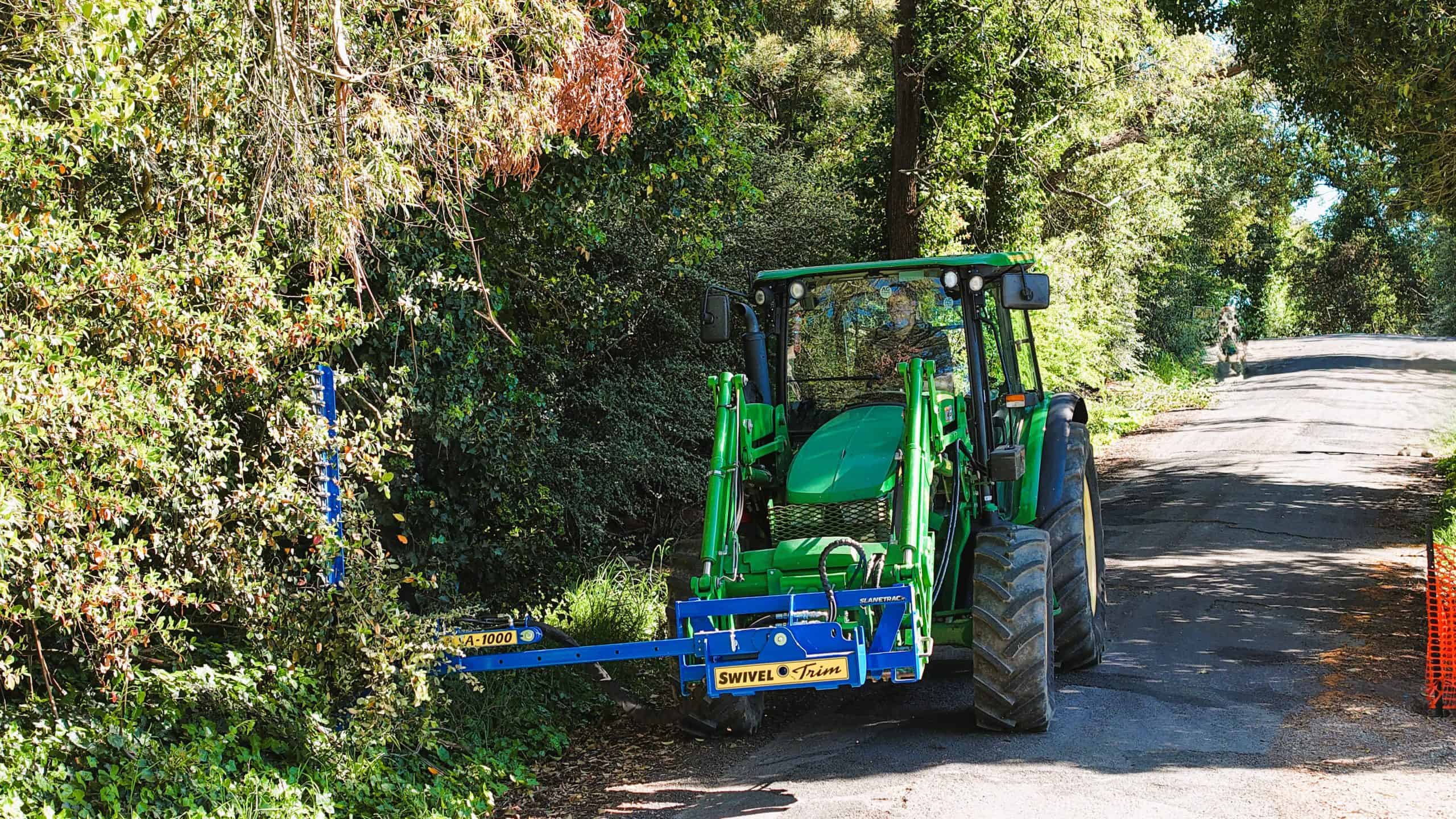

A front loader can cut neatly and evenly while reaching great heights. By removing one pin, it is simple to swivel the cutting head to the opposite side to clear brush from corners and beneath fences. With any other hedge cutters, this task is very challenging.

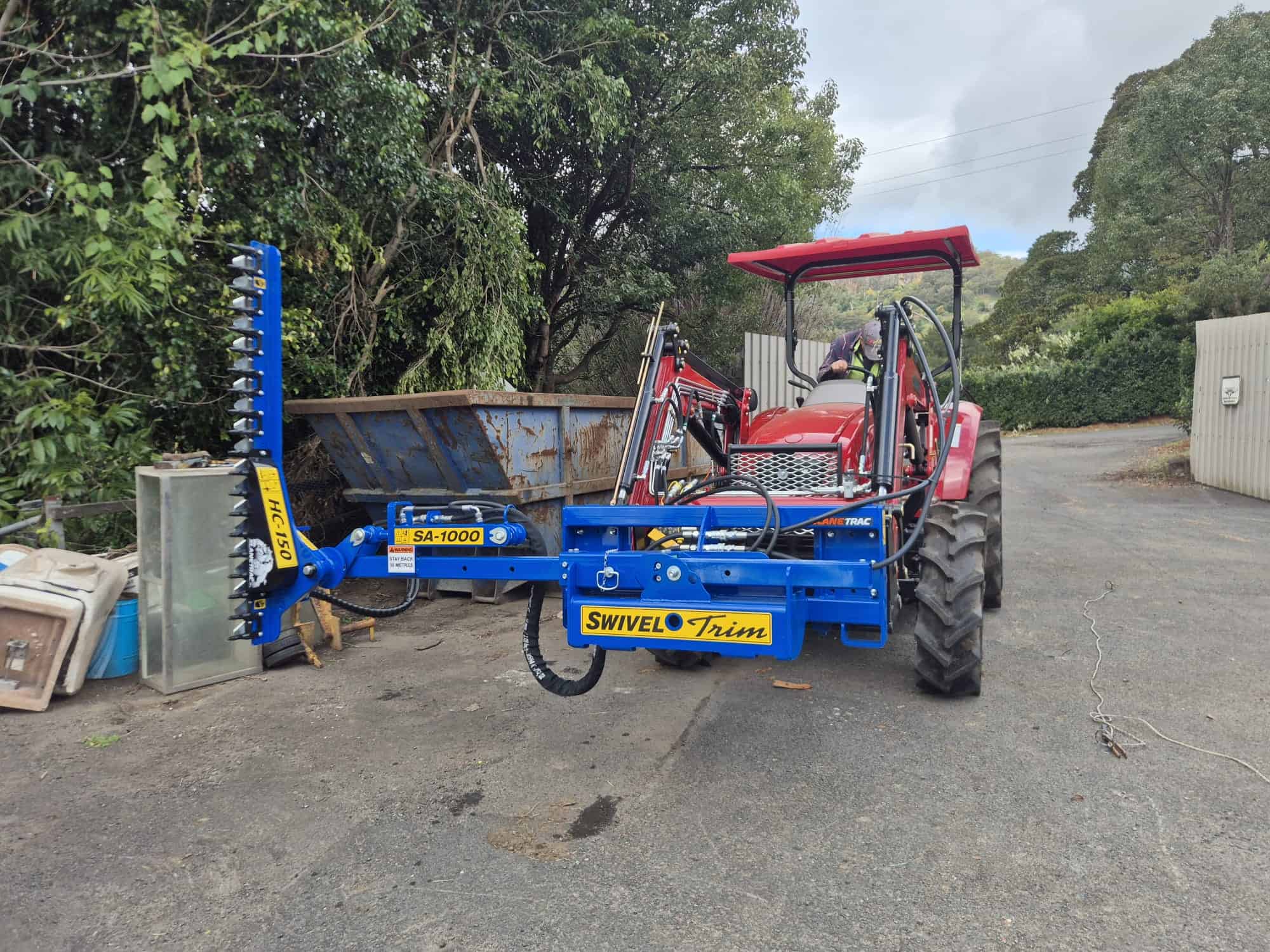

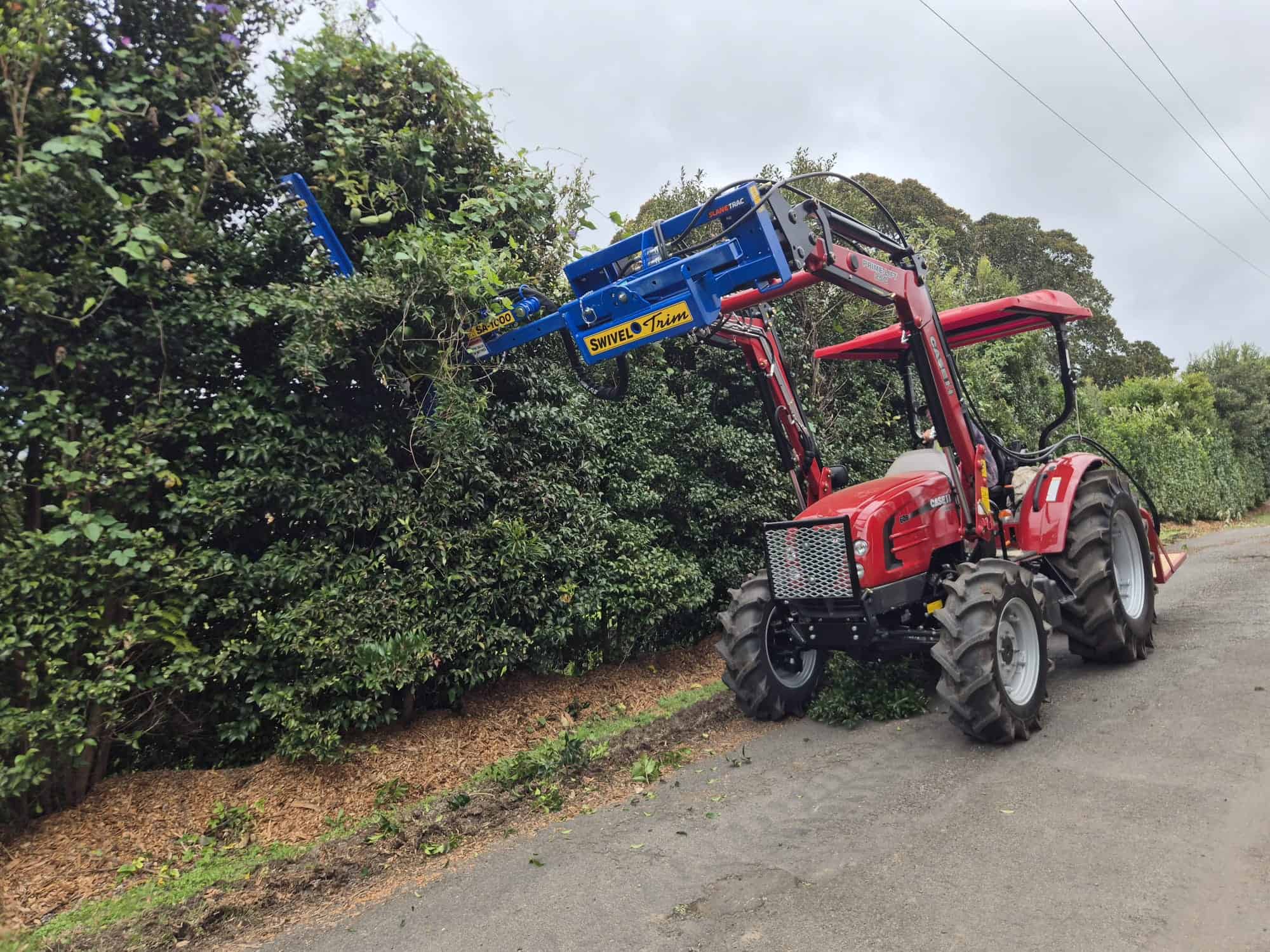

The bar is 1800mm wide. It is also available in 1500mm, requiring less oil flow.

There is also a multi-saw cutting head available for this attachment, see: Slanetrac SA1000 with Multi-saw.

Manufactured in Ireland by Slanetrac.

For more information call (02) 4272 6044 or contact us.

  • Weight: 390kg (with standard equipment)
  • Oil flow required: 60-L/min (with standard 1800mm cutting bar – other cutting bar options require different flow rates)
  • Cutting Diameter: 40mm thick vegetation (with standard equipment)
  • Cutting Bar Length: 1800mm (with standard equipment)
  • Horizontal Reach: Manually telescopes out 1000mm to either side of machine
  • Euro hitch – For quick and easy attachment and detachment from your machine (standard)

Cutting Head Options:

Alternative Cutter Bar Sizes: 1500mm, 2500mm, and 3000mm – (40mm cutting diameter)

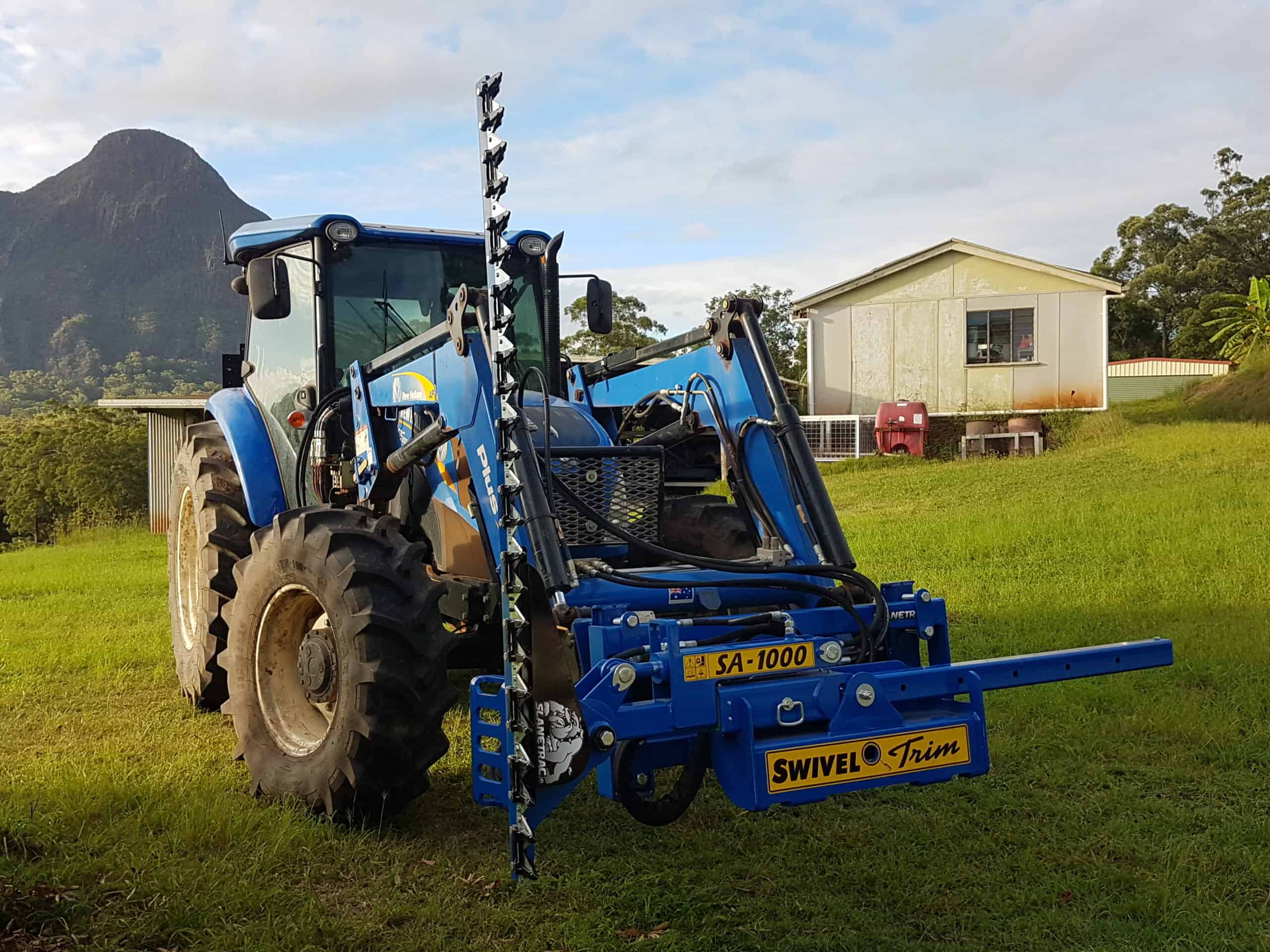

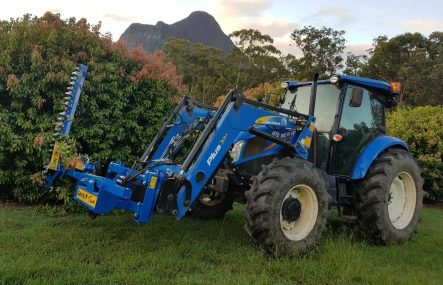

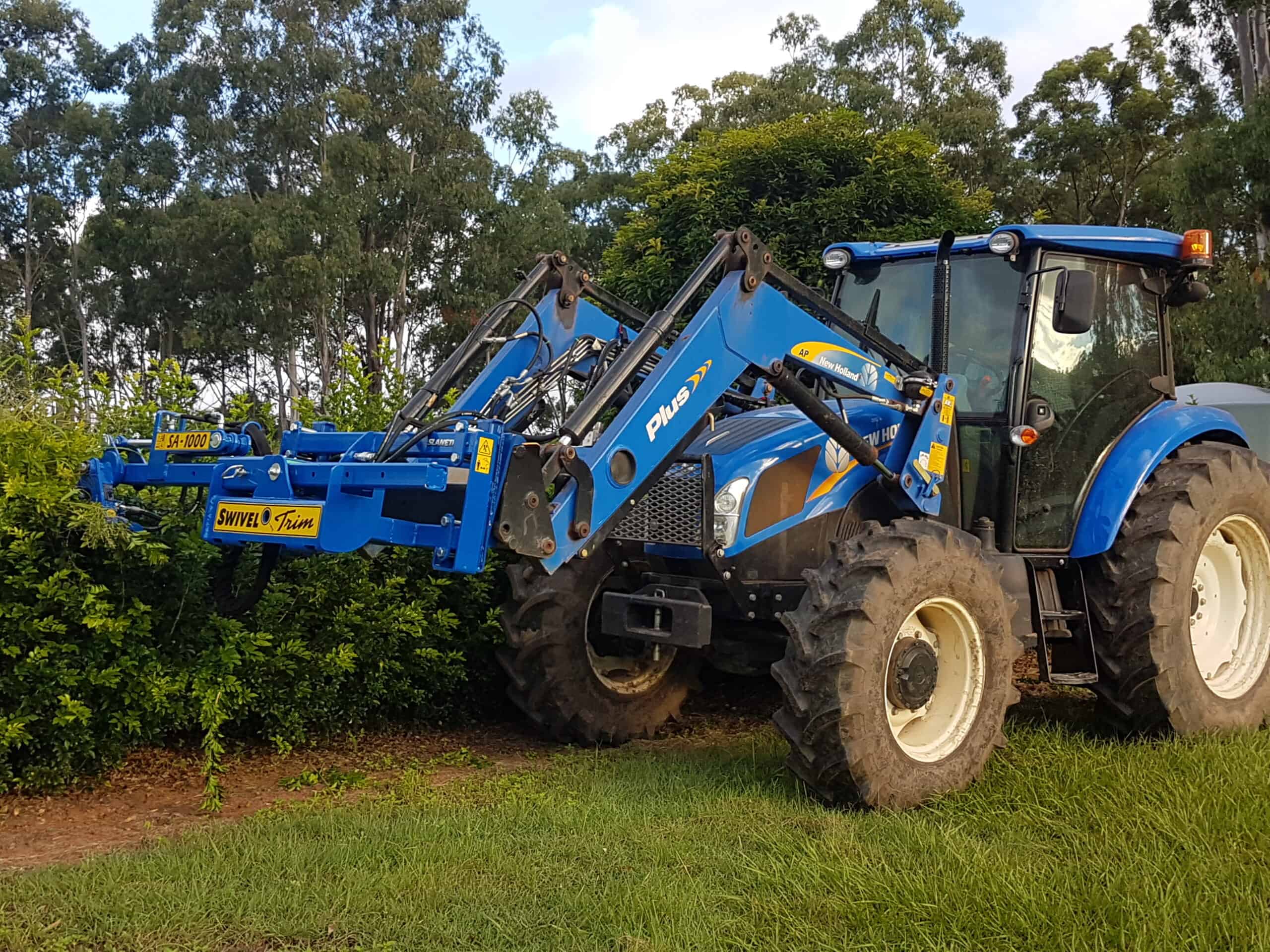

Slanetrac SA1000 Hedge Cutter on Tractor Front Loader Glasshouse Mountains

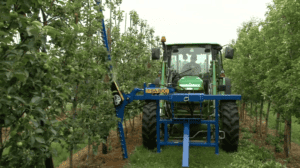

Slanetrac HC300 hedge and orchard trimmer bar

Multi-saw blade Bars: 1000mm (3 saw blades), 1400mm (4 saw blades), 2000mm (6 saw blades) – (80mm cutting diameter)

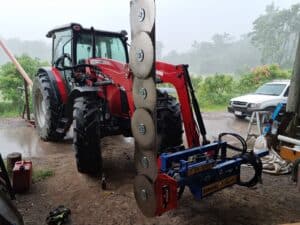

Slanetrac SA1000 with Multi-saw head

Hitch Options:

  • Euro hitch (standard)
  • Universal skid steer hitch (includes with 12v solenoid for machines without auxiliary hydraulic circuit)
  • Telehandler hitch
  • Challenger hitch
  • Blank hitch – with plates to suit welding custom mount

Other Options:

12v Solenoid – to switch hydraulic flow from tilt to cutting action for machines with only one hydraulic circuit

SA800 Model – Suited to smaller machines (standard with Avant Hitch): Slanetrac SA800

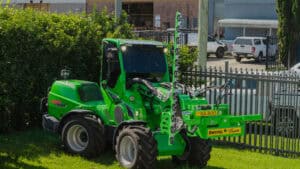

Slanetrac SA800 Swivel Trim Hedge Cutter on Avant 860i
