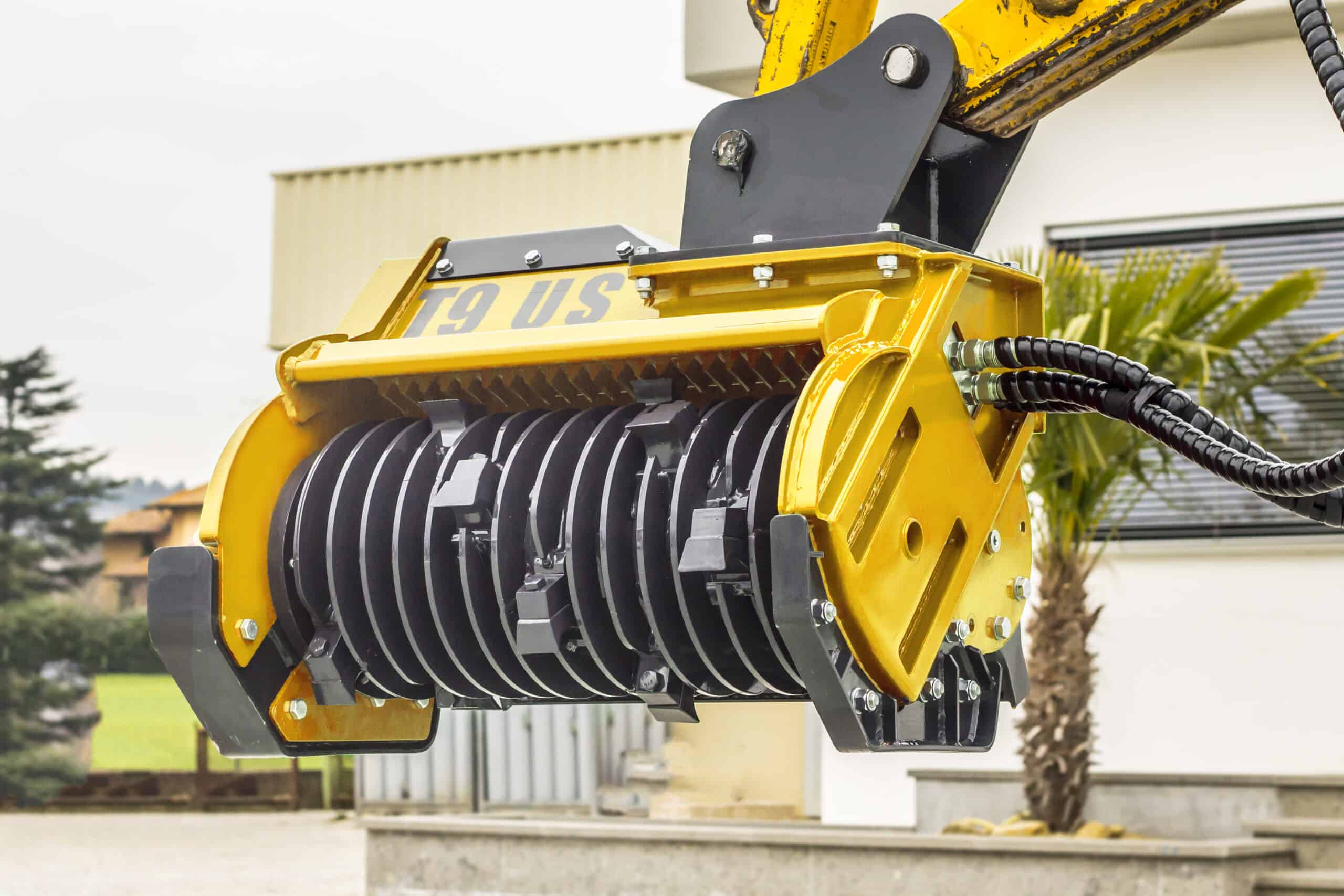

FEMAC T9US Hydraulic Mulcher for 4-12 T Excavators
The FEMAC T9US Hydraulic Flail Mulcher is a high quality Italian built flail mulcher attachment, with a 700 -1100 cm cutting width for 4T – 12T excavators. Suitable for drainage work, land clearance and light mulching.
Available in 700 mm, 900 mm and 1100 mm size. Wide range of flails and rotors available.
Made in Italy by FEMAC SRL
• MZ Helicoidal Rotor with hammers austempered and cutting blade interchangeable
• FS Helical forestal rotor with 360° rotating hammers
• DF Forestal rotor, fixed teeth

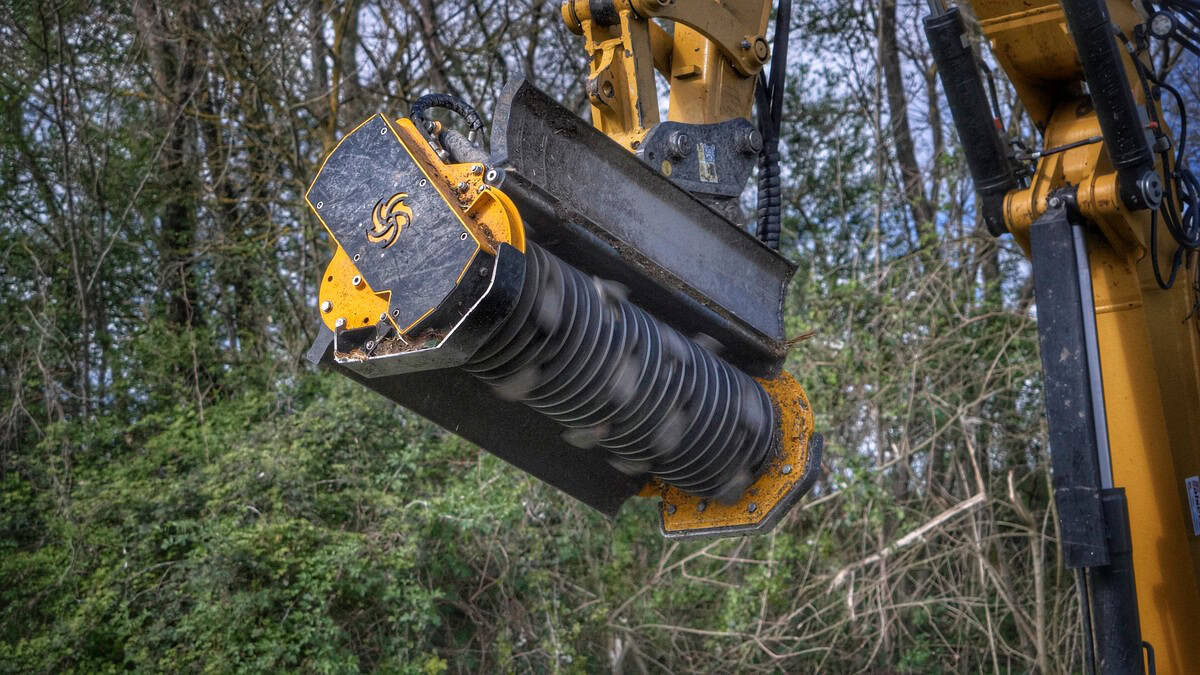

• DFD Rotor, double edge fixed teeth with bite limiter
• Toothed high-performance V-belts transmission
• Internally reinforced double-case body with interspace
• Protective belts cover
• Front hood delete. Fully unrestricted rotor for increased cutting capacity
• Mechanically adjustable rear hood
• Reinforced side skids
• Inside Rotor Supports with ”labyrinth” for the protection of the bearings from the impurities
• Double Row roller adjustable bearings of 1st quality
• Valves block complete with priority valve for adjusting oil flow,
anti-shock valve (pressure relief valve), anti-cavitation
• Cast iron gear motor

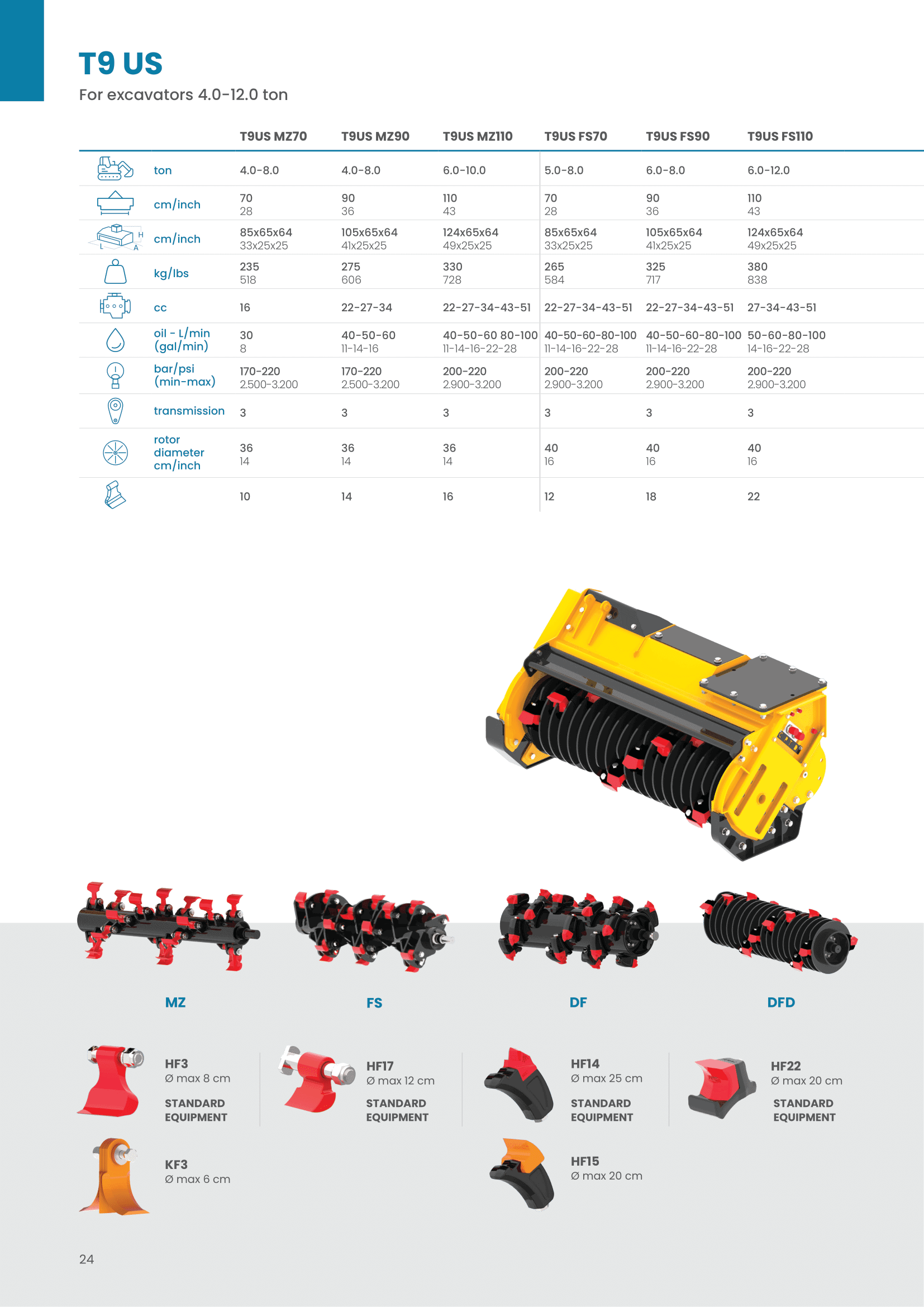

| Model | Excavator (tonne) | Cutting width (mm) | Dimensions (LxAxH cm) | Weight (Kg) | Motor Displacement | Oil L/minPressure Bar (min-max) | Pressure | Transmission | Rotor | Flails |
|---|---|---|---|---|---|---|---|---|---|---|
| T9US MZ70 | 4.0-8.0 | 700 | 85x65x64 | 235 | 16 | 30 | 170-220 | 3 | 36 | 10 |
| T9US MZ90 | 4.0-8.0 | 900 | 105x65x64 | 275 | 22-27-34 | 40-50-60 | 170-220 | 3 | 36 | 14 |
| T9US MZ110 | 6.0-10.0 | 1100 | 124x65x64 | 330 | 22-27-34-43-51 | 40-50-60 80-100 | 200-220 | 3 | 36 | 16 |
| T9US FS70 | 5.0-8.0 | 700 | 85x65x64 | 265 | 22-27-34-43-51 | 50-60 80-100 | 200-220 | 3 | 40 | 12 |
| T9US FS90 | 6.0-8.0 | 900 | 105x65x64 | 325 | 22-27-34-43-51 | 50-60 80-100 | 200-220 | 3 | 40 | 18 |
| T9US FS110 | 6.0-12.0 | 1100 | 124x65x64 | 380 | 27-34-43-51 | 50-60 80-100 | 200-220 | 3 | 40 | 22 |
| T9US DF70 | 5.0-12.0 | 700 | 85x65x64 | 315 | 22-27-34-43-51 | 40-50-60-80-100 | 200-220 | 3 | 37 | 21 |
| 19US DF90 | 6.0-12.0 | 900 | 105x65x64 | 365 | 27-34-43-51 | 50-60 80-100 | 200-220 | 3 | 37 | 24 |
| T9US DF110 | 6.0-12.0 | 1100 | 124x65x64 | 430 | 27-34-43-51 | 50-60 80-100 | 200-220 | 3 | 37 | 30 |
| T9US DFD70 | 5.0-12.0 | 700 | 85x65x64 | 345 | 22-27-34-43-51 | 40-50-60 80-100 | 200-220 | 3 | 38 | 14 |

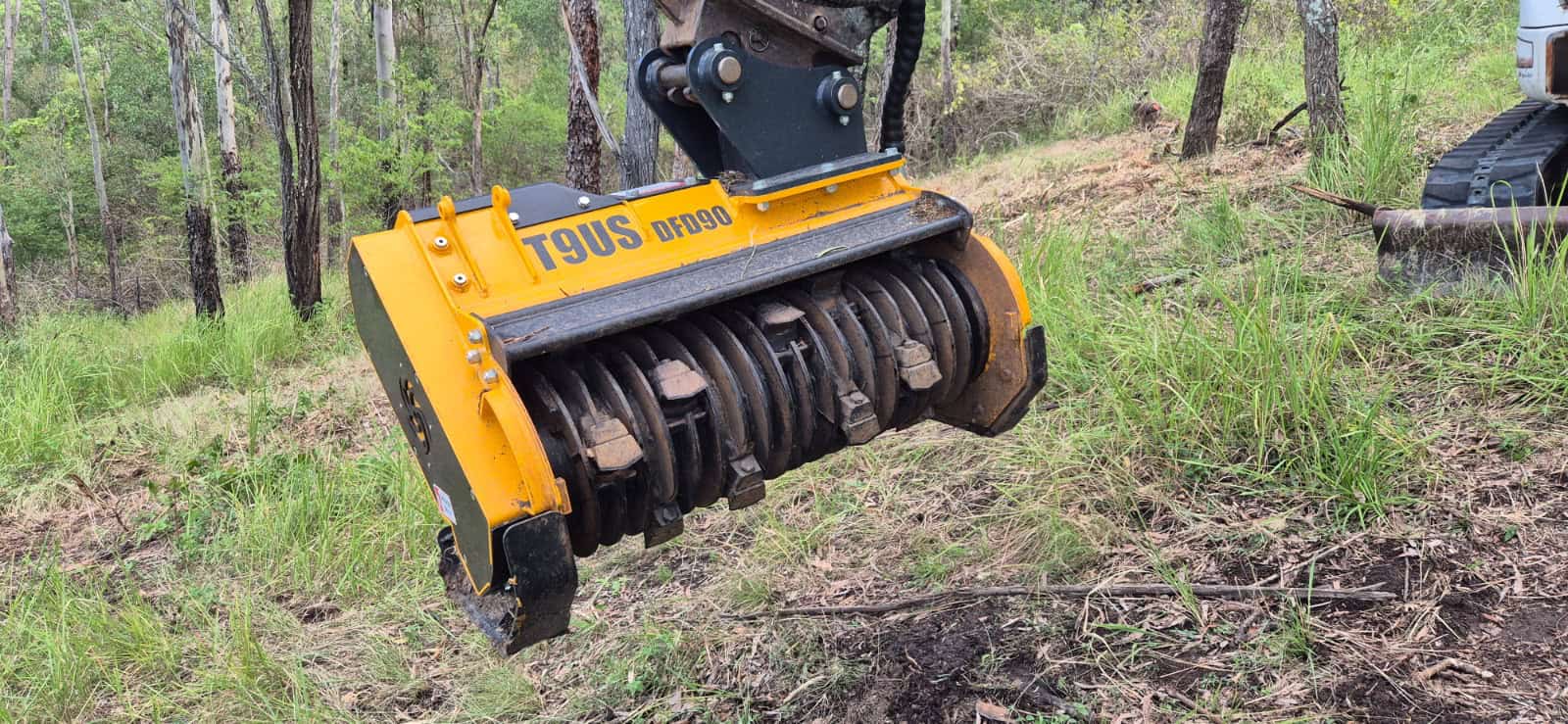

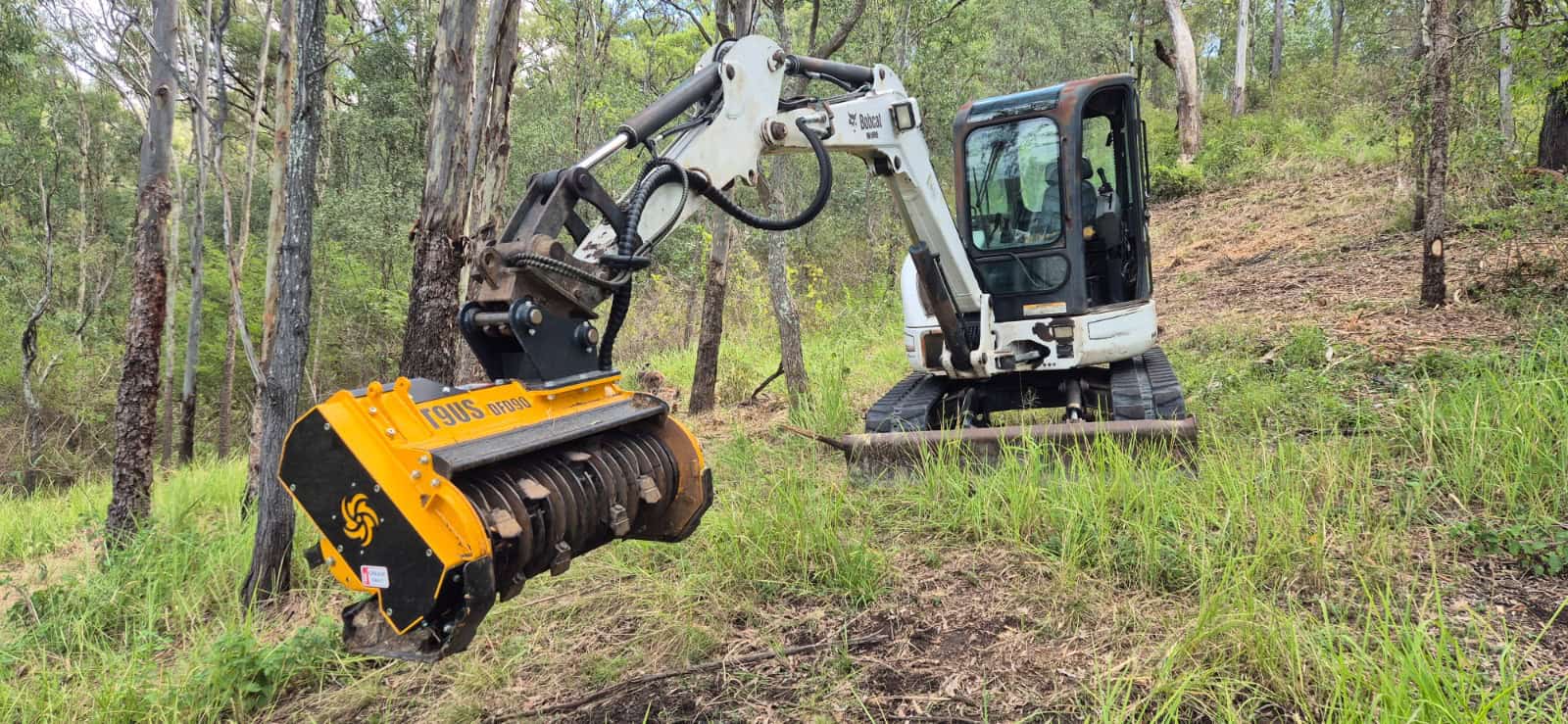

| T9US DFD90 | 6.0-12.0 | 900 | 105x65x64 | 400 | 27-34-43-51 | 50-60-80-100 | 200-220 | 3 | 38 | 18 |
| T9US DFD110 | 6.0-12.0 | 1100 | 124x65x64 | 470 | 27-34-43-51 | 50-60 80-90 | 200-220 | 3 | 38 | 22 |
