- MZ Helicoidal Rotor with hammers austempered and interchangeable cutting blade .
- FR Forestal with 360° rotating hammer.
- DF Forestal rotor, fixed teeth.
- Toothed high-performance belts transmission.
- Internally reinforced double-case body with interspace.
- Protective belts cover.
- Symmetric hearing head, for faster cut with rotation of the excavator.
- Input and output mouths completely identical, adjustable
- Hydraulic frontal hood, opens fully for higher cutting capacity.
- Inside Rotor Supports with ”labyrinth” for the protection of the bearings from the impurities.
- Adjustable bearings of 1st quality.
- Valves block complete with priority valve for adjusting oil flow, anti-shock valve (pressure relief valve), anti-cavitation.
- Piston motor.
- Accident prevention chains protections according to EC directives.
Downloads
Videos

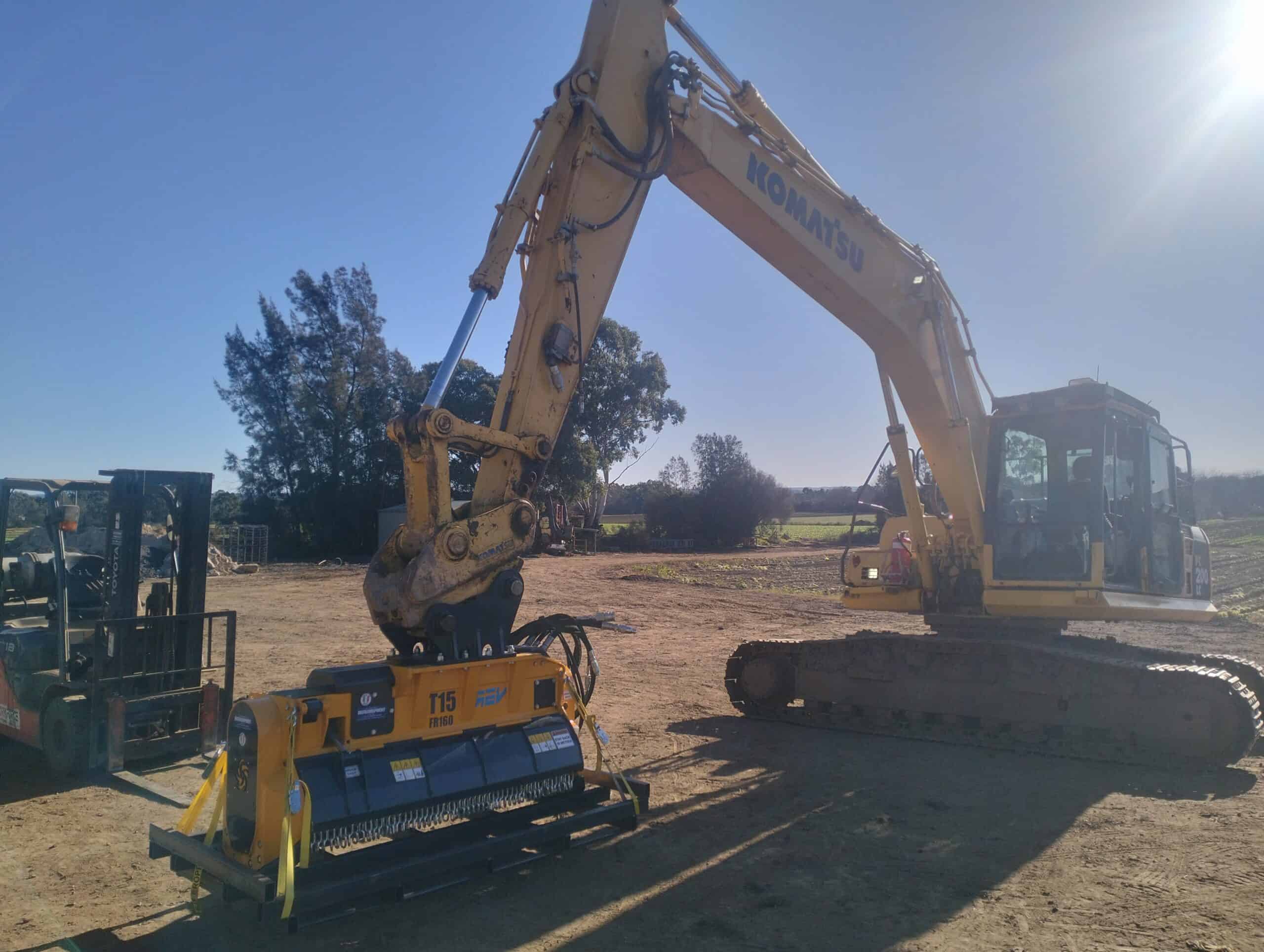

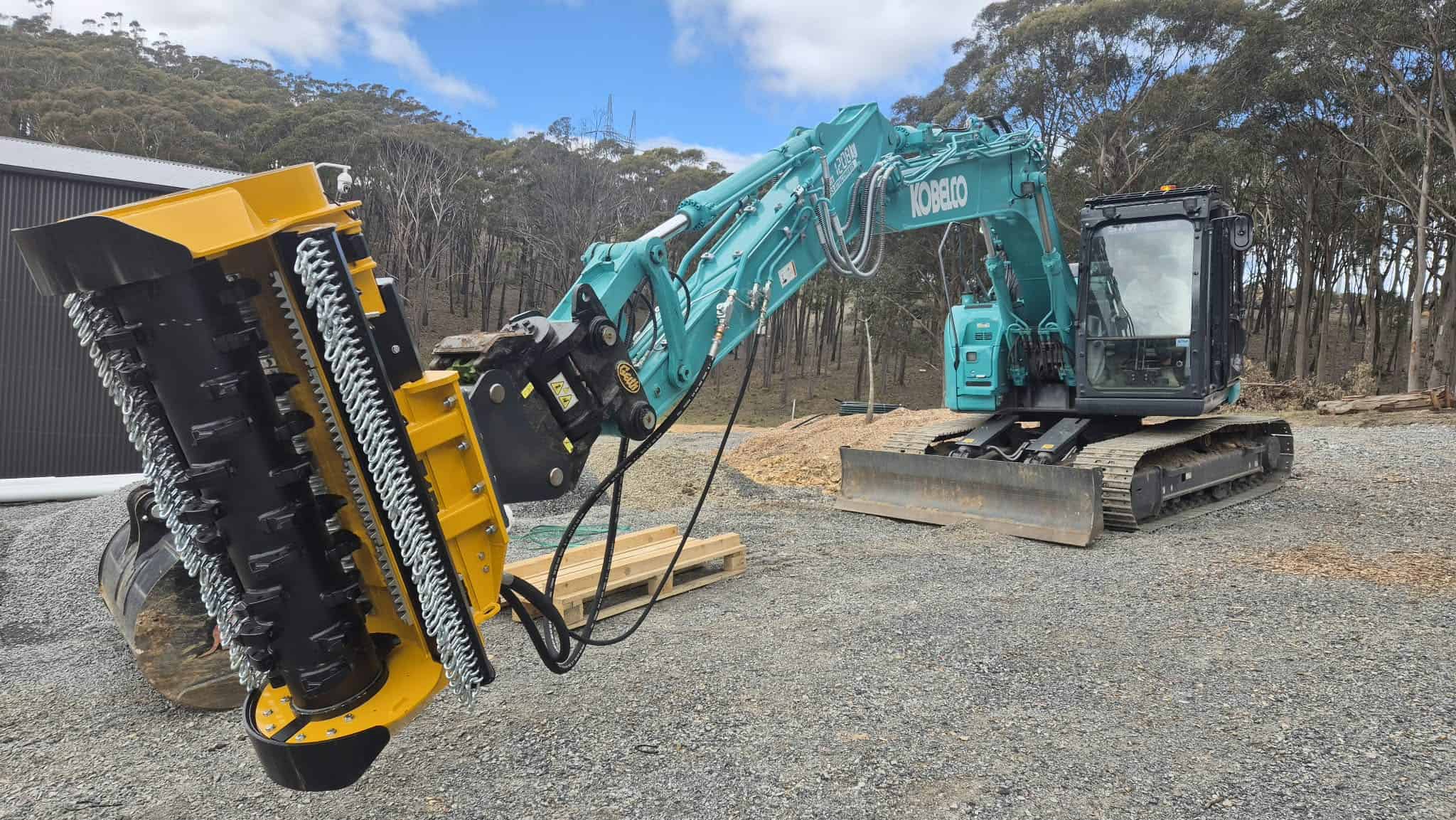

FEMAC T15 REV Hydraulic Mulcher for 10-25 T Excavators
$29,500.00 – $42,250.00 ex GST
The FEMAC T15 REV Hydraulic Mulcher is a high quality, Italian built, flail mower attachment with up to 160cm cutting length for 10 – 25 tonne excavators. Suitable for drainage work, land clearance and mulching.
The REV stands for reversible and the unit can be swept back and forth for continuous cutting without lifting off the ground.
Available in 1300 mm and 1600 mm size. Wide range of flails and 3 types of rotors available.
Made in Italy by FEMAC SRL
| Model | Excavator (tonne) | Cutting width (mm) | Dimensions (LxAxH cm) | Weight (Kg) | Motor Displacement | Oil L/min | Pressure Bar (min-max) |
Transmission | Rotor | Teeth |
|---|---|---|---|---|---|---|---|---|---|---|
| T15 MZ130 REV | 10.0-25.0 | 1300 | 160x80x85 | 650 | 32/64 | 190-180 | 200-250 | 1 (50 mm) | Helical | 20 |
| T15 MZ160 REV | 12.0-25.0 | 1600 | 190x80x85 | 750 | 32/64 | 90-180 | 200-250 | 1 (50 mm) | Helical | 20 |
| T15 FR130 REV | 12.0-25-0 | 1300 | 160x80x85 | 920 | 32/64 | 90-180 | 200-250 | 1 (50 mm) | 4 file | 26 |
| T15 FR160 REV | 15.0-25.0 | 1600 | 190x80x85 | 1,020 | 32/64 | 90-180 | 200-250 | 1 (50 mm) | 4 file | 32 |
| T15 DF130 REV | 12.0-25.0 | 1300 | 160x80x85 | 950 | 32/64 | 90-180 | 200-250 | 1 (50 mm) | Helical | 36 |
| T15 DF160 REV | 16.0-25.0 | 1600 | 190x80x85 | 1,050 | 32/64 | 90-180 | 200-250 | 1 (50 mm) | Helical | 42 |

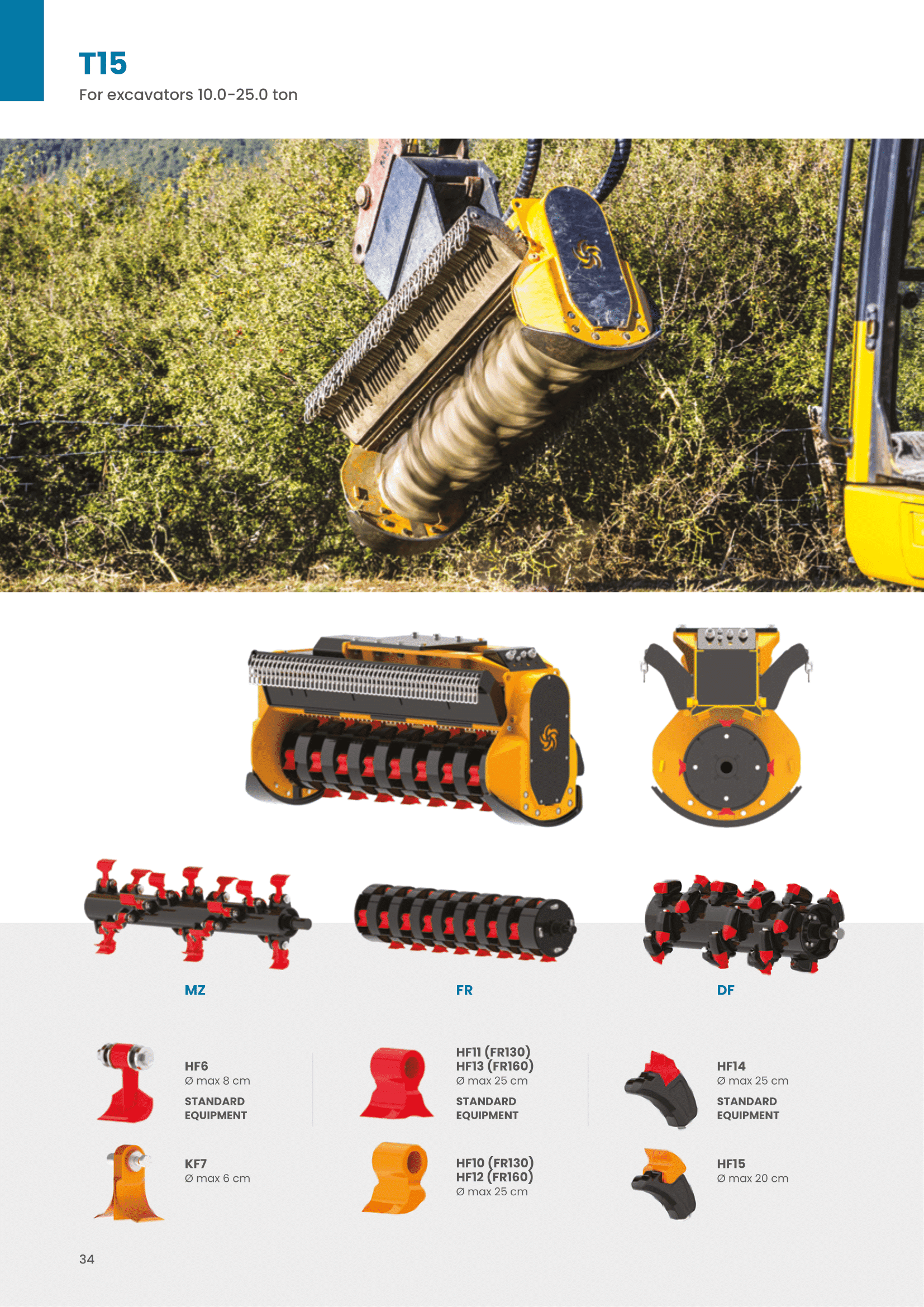

Flail Options:
HF6 – max Ø 8 cm – standard
KF7 – max Ø 6 cm
HF10 (FR130) / HF12 (FR160) – Ø 25 cm
HF11 (FR130) / HF 13 (FR160) – Ø 25 cm
HF14 – Ø 25 cm
HF15 – Ø 20 cm
Rotor Options :
MZ – Helicoldal Rotor
FR – Forestal Flanged Rotor
DF – Forestal rotor
